Event Specification
Magnitude |
4.4 |
| Date & Time (UTC) | 2013-11-19 13:31:36.8 |
| Date & Time (Local) | 1392/8/28 17:01:36.8 |

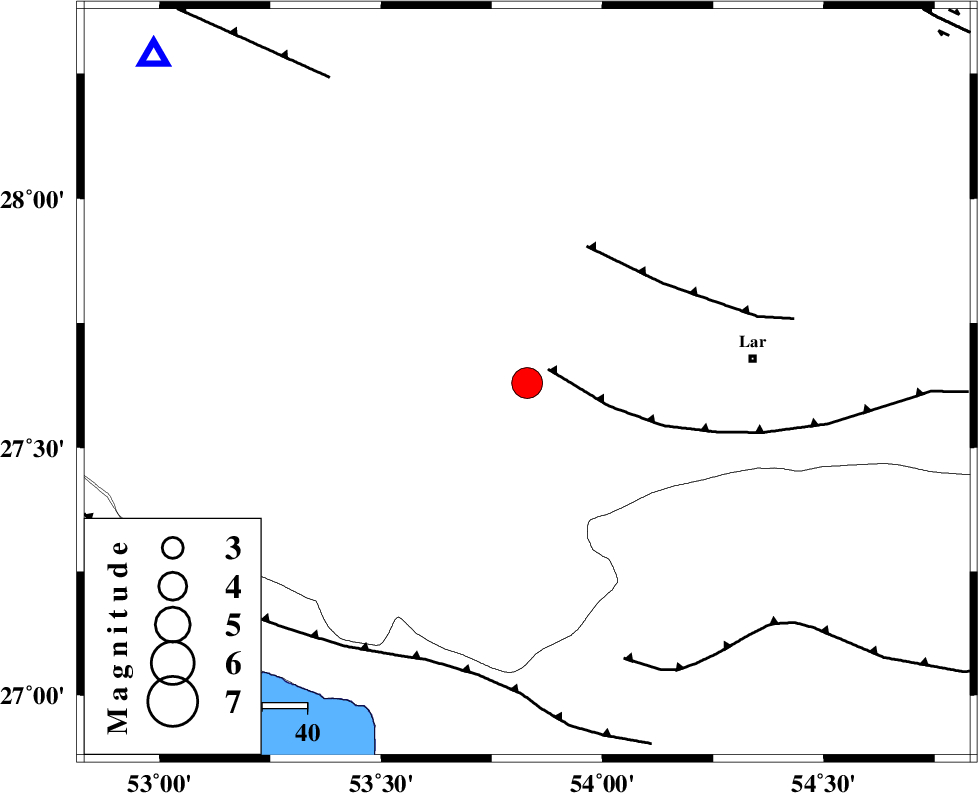

| Location | Lat:27.63 Lon: 53.83 |
| Region | Fars Province, 50 km West of Lar |
Nearest Cities |
|
| 23 km East of Ard, Fars Province | |
| 23 km South West of Avaz, Fars Province | |
| 24 km South East of Fishur, Fars Province | |
| 25 km North West of Bagh, Fars Province | |
| 31 km North East of Fedagh, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 6 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 33 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 65 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | >9.5 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 8.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91016 | IIEES | BNDS | N | 2067.3 | 0.4 | 2013-11-19 13:32:56 | 2013-11-19 02:07:00 | n |
| 91017 | IIEES | BSRN | N | 107.5 | 0.92 | 2013-11-19 13:35:09 | 2013-11-19 02:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pn | E | 2013-11-19 13:32:14 | 0.58 | y | 233 | 96 | |||
| IIEES | BNDS | N | Sg | E | 2013-11-19 13:32:42 | -0.42 | y | 233 | 96 | |||
| IIEES | AHRM | Z | Pn | E | 2013-11-19 13:32:20 | 0.41 | y | 284 | 299 | |||
| IIEES | AHRM | N | Sg | E | 2013-11-19 13:32:56 | -0.46 | y | 284 | 299 | |||
| IIEES | KRBR | Z | Pn | E | 2013-11-19 13:32:32 | 0.02 | y | 387 | 47 | |||
| IIEES | CHBR | Z | Pn | E | 2013-11-19 13:33:10 | -0.72 | y | 700 | 107 | |||
| IIEES | BSRN | Z | Pn | E | 2013-11-19 13:33:12 | 0.28 | y | 702 | 46 | |||
| IIEES | TABS | Z | Pn | E | 2013-11-19 13:33:16 | 0.09 | y | 738 | 24 | |||
| IIEES | SHRT | Z | Pn | E | 2013-11-19 13:33:37 | 0.12 | y | 910 | 41 | |||
