Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2013-11-20 00:39:51.5 |
| Date & Time (Local) | 1392/8/29 04:09:51.5 |

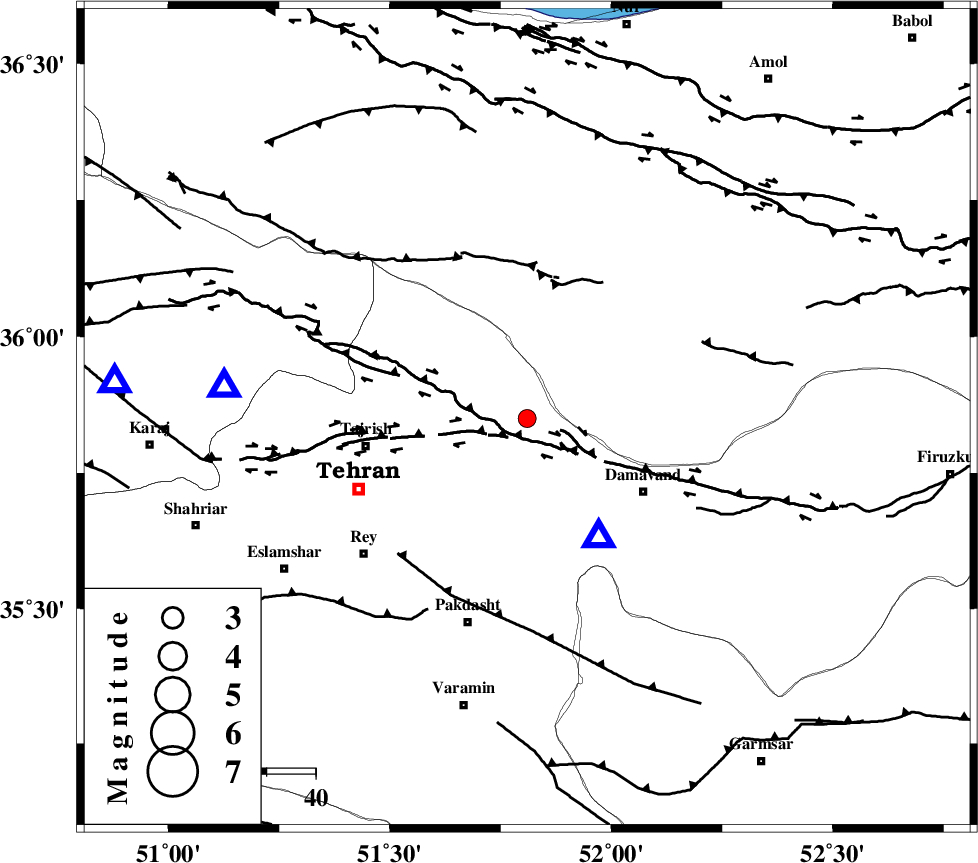

| Location | Lat:35.85 Lon: 51.81 |
| Region | Tehran Province, 28 km North-West of Damavand |
Nearest Cities |
|
| 8 km North of Lavasan, Tehran Province | |
| 11 km East of Afjeh, Tehran Province | |
| 13 km North of Bumehen, Tehran Province | |
| 14 km North of Rudehen, Tehran Province | |
| 20 km North West of Abali, Tehran Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TEHRAN_F4 (Length: 115 km) , Distance to epicenter: 3 km | |
| MOSHA_F (Length: 234 km) , Distance to epicenter: 5 km | |
| KANDOVAN_F (Length: 90 km) , Distance to epicenter: 33 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 3.4 km |
| Error in Depth | 3.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91018 | IIEES | THKV | E | 139.3 | 0.24 | 2013-11-20 00:40:20 | 2013-11-20 01:16:00 | n |
| 91019 | IIEES | GHVR | N | 74.3 | 0.28 | 2013-11-20 00:40:41 | 2013-11-20 01:16:00 | n |
| 91020 | IIEES | GHVR | E | 92.6 | 0.32 | 2013-11-20 00:40:46 | 2013-11-20 01:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHTH | Z | Pg | E | 2013-11-20 00:40:02 | -0.06 | y | 62.4 | 276 | |||
| IIEES | CHTH | N | Sg | E | 2013-11-20 00:40:10 | 0.03 | y | 62.4 | 276 | |||
| IIEES | THKV | Z | Pg | E | 2013-11-20 00:40:06 | 0.01 | y | 84.7 | 275 | |||
| IIEES | GHVR | Z | Pg | E | 2013-11-20 00:40:18 | 0.03 | y | 160 | 199 | |||
| IIEES | GHVR | N | Sg | E | 2013-11-20 00:40:37 | -0.02 | y | 160 | 199 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-11-20 00:40:35 | 0.03 | y | 289 | 216 | |||
