Event Specification
Magnitude |
5.7 |
| Date & Time (UTC) | 2013-11-22 18:30:58.1 |
| Date & Time (Local) | 1392/9/1 22:00:58.1 |

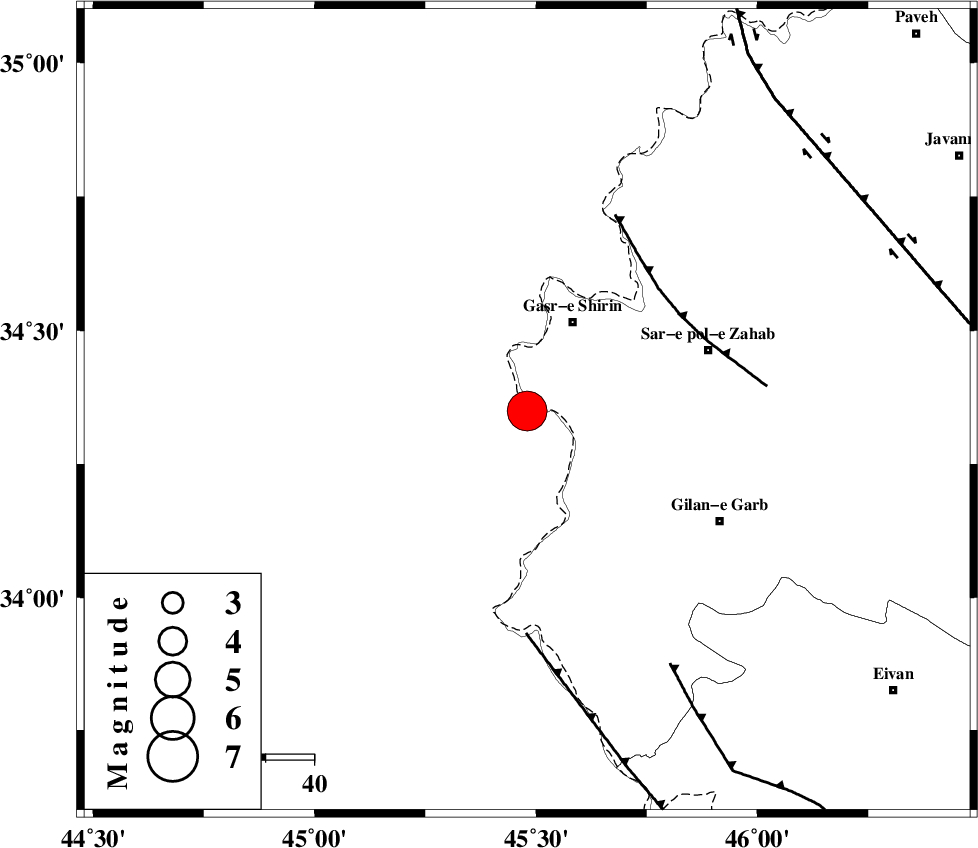

| Location | Lat:34.35 Lon: 45.48 |
| Region | Iraq, 21 km South-West of Qasr-E-Shirin |
Nearest Cities |
|
| 6 km of Khosravi, Kermanshah Province | |
| 15 km West of Seyyed sohrab, Kermanshah Province | |
| 21 km South West of Qasr-E-Shirin, Kermanshah Province | |
| 28 km South West of Aqabarar, Kermanshah Province | |
| 31 km South West of Qareh belagh, Kermanshah Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 37 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 46 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 61 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >4.5 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 8.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91039 | IIEES | SHGR | N | 17102.8 | 0.64 | 2013-11-22 18:33:14 | 2013-11-22 06:54:00 | n |
| 91040 | IIEES | SHGR | E | 12626.8 | 0.6 | 2013-11-22 18:33:16 | 2013-11-22 06:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pn | E | 2013-11-22 18:31:54 | 0.3 | y | 389 | 47 | |||
| IIEES | SHGR | Z | Pn | E | 2013-11-22 18:31:54 | 0.03 | y | 397 | 128 | |||
| IIEES | SHGR | E | S | E | 2013-11-22 18:32:36 | 0.15 | y | 397 | 128 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-11-22 18:31:57 | -0.18 | y | 419 | 98 | |||
| IIEES | GHVR | Z | Pn | E | 2013-11-22 18:32:11 | -0.19 | y | 530 | 87 | |||
| IIEES | CHTH | Z | Pn | E | 2013-11-22 18:32:13 | -0.22 | y | 543 | 70 | |||
| IIEES | CHTH | E | Sg | E | 2013-11-22 18:33:29 | 0.02 | y | 543 | 70 | |||
