Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2013-11-22 20:43:46.7 |
| Date & Time (Local) | 1392/9/2 00:13:46.7 |

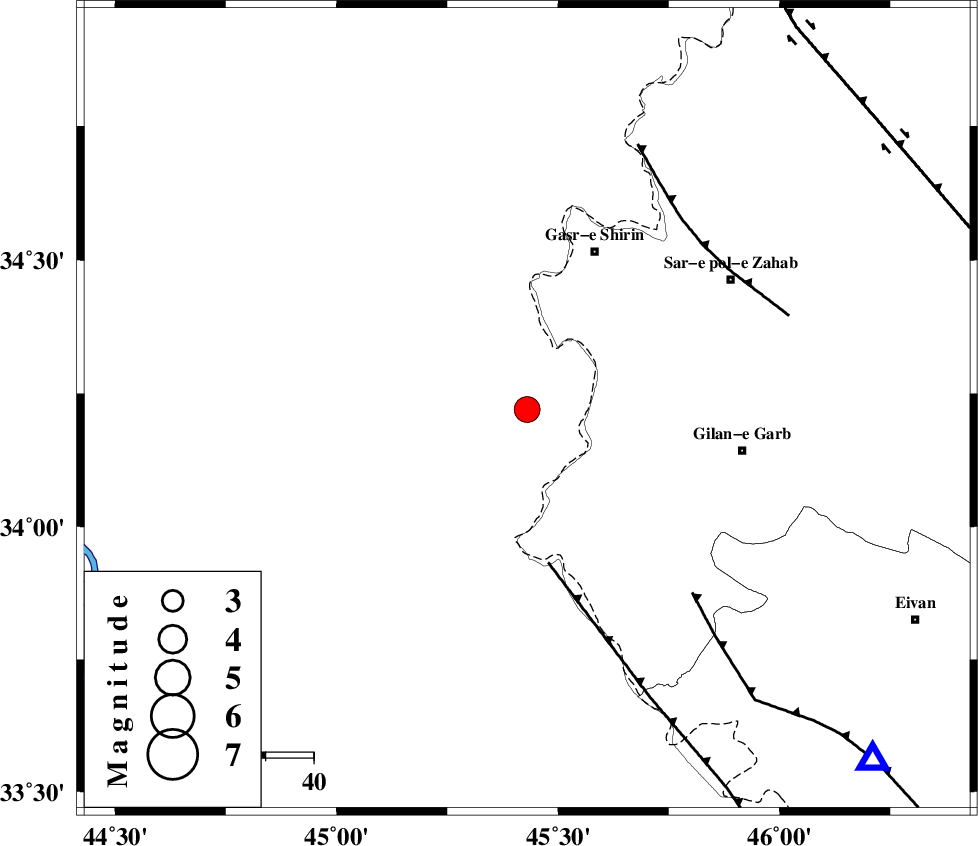

| Location | Lat:34.22 Lon: 45.43 |
| Region | Iraq, 36 km South-West of Qasr-E-Shirin |
Nearest Cities |
|
| 21 km South of Khosravi, Kermanshah Province | |
| 29 km South West of Seyyed sohrab, Kermanshah Province | |
| 36 km South West of Qasr-E-Shirin, Kermanshah Province | |
| 41 km West of Chub baghan, Kermanshah Province | |
| 42 km South West of Aqabarar, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF4 (Length: 128 km) , Distance to epicenter: 32 km | |
| MFF8 (Length: 48 km) , Distance to epicenter: 50 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 51 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >4.3 km |
| Error in Longitude | 5.5 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91042 | IIEES | SHGR | N | 106.8 | 0.64 | 2013-11-22 20:45:55 | 2013-11-22 09:18:00 | n |
| 91043 | IIEES | SHGR | E | 125.4 | 0.68 | 2013-11-22 20:46:02 | 2013-11-22 09:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pn | E | 2013-11-22 20:44:42 | 0.04 | y | 392 | 126 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-11-22 20:44:44 | -0.08 | y | 402 | 46 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-11-22 20:44:46 | -0.27 | y | 422 | 96 | |||
| IIEES | ASAO | Z | Pn | E | 2013-11-22 20:44:47 | 0.3 | y | 424 | 84 | |||
| IIEES | GRMI | Z | Pn | E | 2013-11-22 20:45:03 | 0.03 | y | 555 | 23 | |||
