Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2013-11-23 06:52:02.4 |
| Date & Time (Local) | 1392/9/2 10:22:02.4 |

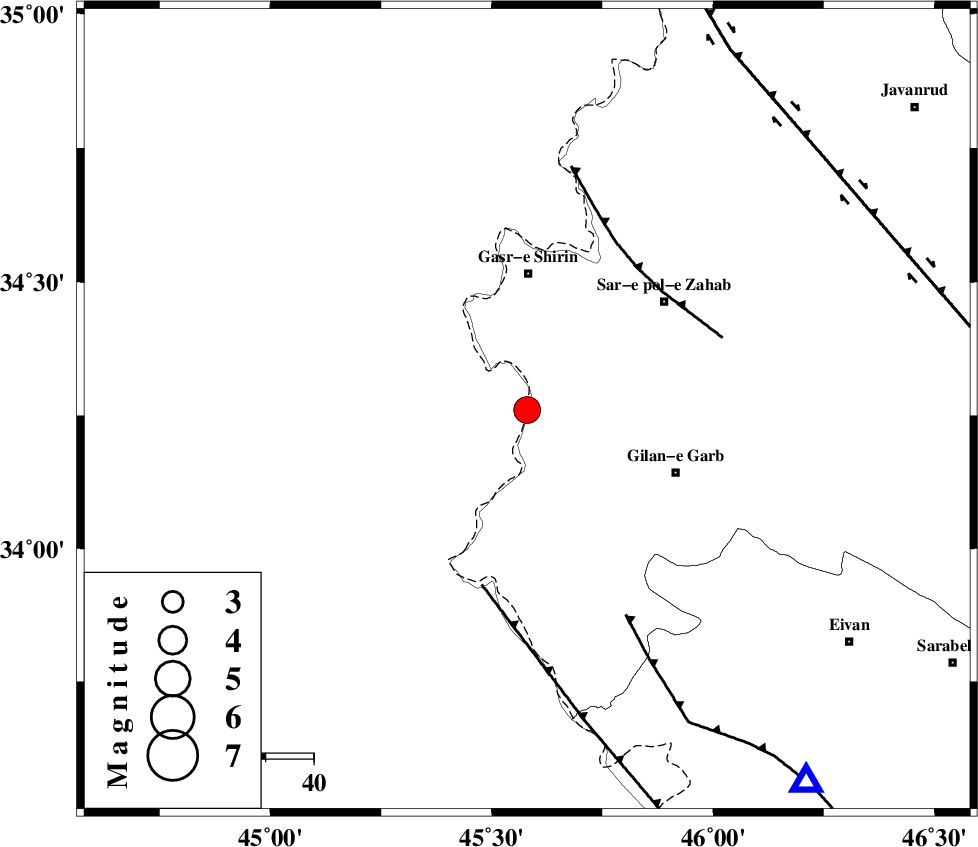

| Location | Lat:34.26 Lon: 45.58 |
| Region | Iraq, 28 km South of Qasr-E-Shirin |
Nearest Cities |
|
| 18 km South East of Khosravi, Kermanshah Province | |
| 21 km South of Seyyed sohrab, Kermanshah Province | |
| 26 km West of Chub baghan, Kermanshah Province | |
| 28 km South of Qasr-E-Shirin, Kermanshah Province | |
| 31 km South West of Qareh belagh, Kermanshah Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| MFF8 (Length: 48 km) , Distance to epicenter: 37 km | |
| ZFF4 (Length: 128 km) , Distance to epicenter: 38 km | |
| MFF7 (Length: 99 km) , Distance to epicenter: 47 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >3.5 km |
| Error in Longitude | 4.4 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91049 | IIEES | SHGR | N | 179.1 | 0.76 | 2013-11-23 06:54:09 | 2013-11-23 07:24:00 | n |
| 91050 | IIEES | SHGR | E | 208.7 | 0.65 | 2013-11-23 06:54:16 | 2013-11-23 07:24:00 | n |
| 91051 | IIEES | KHMZ | N | 181.6 | 0.87 | 2013-11-23 06:54:15 | 2013-11-23 07:24:00 | n |
| 91052 | IIEES | GHVR | N | 57.8 | 0.31 | 2013-11-23 06:54:41 | 2013-11-23 07:24:00 | n |
| 91053 | IIEES | GHVR | E | 74.3 | 0.52 | 2013-11-23 06:54:45 | 2013-11-23 07:24:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pn | E | 2013-11-23 06:52:57 | 0.08 | y | 384 | 128 | |||
| IIEES | ZNJK | Z | Pn | E | 2013-11-23 06:52:58 | 0.08 | y | 388 | 46 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-11-23 06:53:00 | -0.3 | y | 409 | 97 | |||
| IIEES | ASAO | Z | Pn | E | 2013-11-23 06:53:01 | 0.08 | y | 410 | 84 | |||
| IIEES | GHVR | Z | Pn | E | 2013-11-23 06:53:15 | 0.14 | y | 522 | 86 | |||
| IIEES | GRMI | Z | Pn | E | 2013-11-23 06:53:17 | -0.08 | y | 545 | 22 | |||
