Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2013-11-24 21:49:47.7 |
| Date & Time (Local) | 1392/9/4 01:19:47.7 |
| Location | Lat:28.24 Lon: 51.37 |
| Region | Bushehr Province, 46 km South of Khormog |
Nearest Cities |
|
| 8 km North of Ziyarat, Bushehr Province | |
| 17 km North West of Abkesh, Bushehr Province | |
| 18 km West of Kaki, Bushehr Province | |
| 21 km South West of Baduleh, Bushehr Province | |
| 23 km North West of Bardkhun, Bushehr Province | |
| Depth | 19 km |
| Agency | |

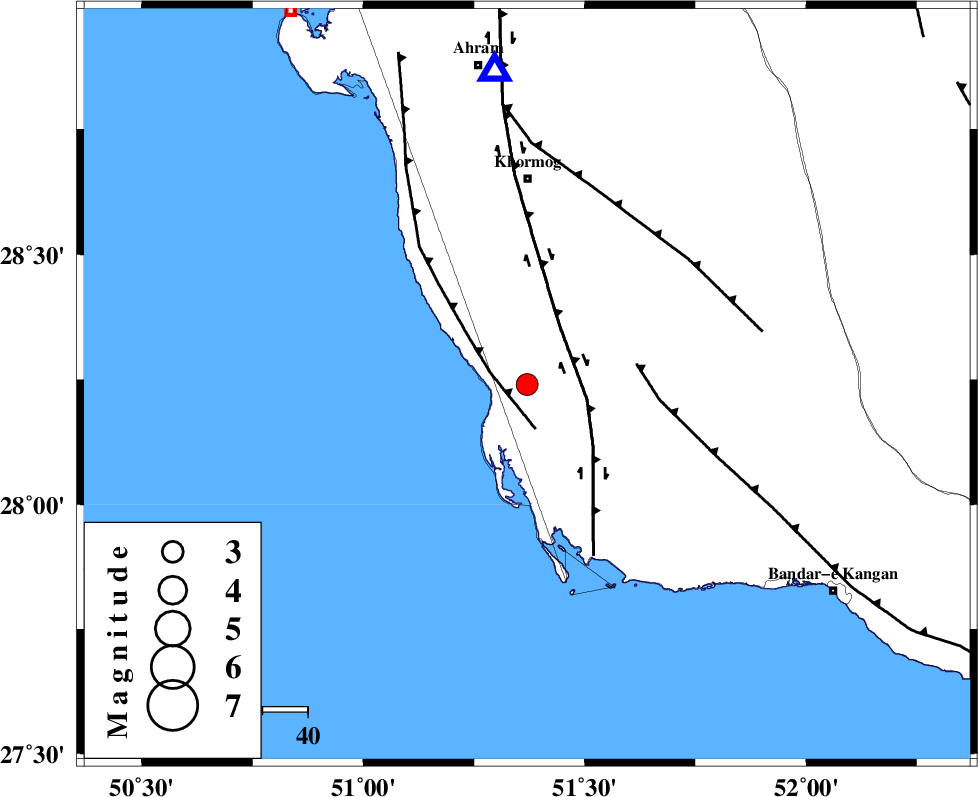

Faults within 150 km: |
|
| ZFF2 (Length: 84 km) , Distance to epicenter: 9 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 14 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 25 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >4.2 km |
| Error in Longitude | 5.9 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91067 | IIEES | AHRM | N | 1021.2 | 0.28 | 2013-11-24 21:50:16 | 2013-11-24 10:27:00 | n |
| 91068 | IIEES | AHRM | E | 865.7 | 0.28 | 2013-11-24 21:50:16 | 2013-11-24 10:27:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-11-24 21:49:59 | 0 | y | 70.2 | 354 | |||
| IIEES | AHRM | N | Sg | E | 2013-11-24 21:50:08 | -0.01 | y | 70.2 | 354 | |||
| IIEES | YZKH | Z | Pn | E | 2013-11-24 21:51:04 | 0.03 | y | 555 | 33 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-11-24 21:51:12 | -0.01 | y | 625 | 348 | |||
| IIEES | BSRN | Z | Pn | E | 2013-11-24 21:51:41 | -0.05 | y | 854 | 59 | |||
