Event Specification
Magnitude |
2.5 |
| Date & Time (UTC) | 2013-11-27 09:05:05.7 |
| Date & Time (Local) | 1392/9/6 12:35:05.7 |

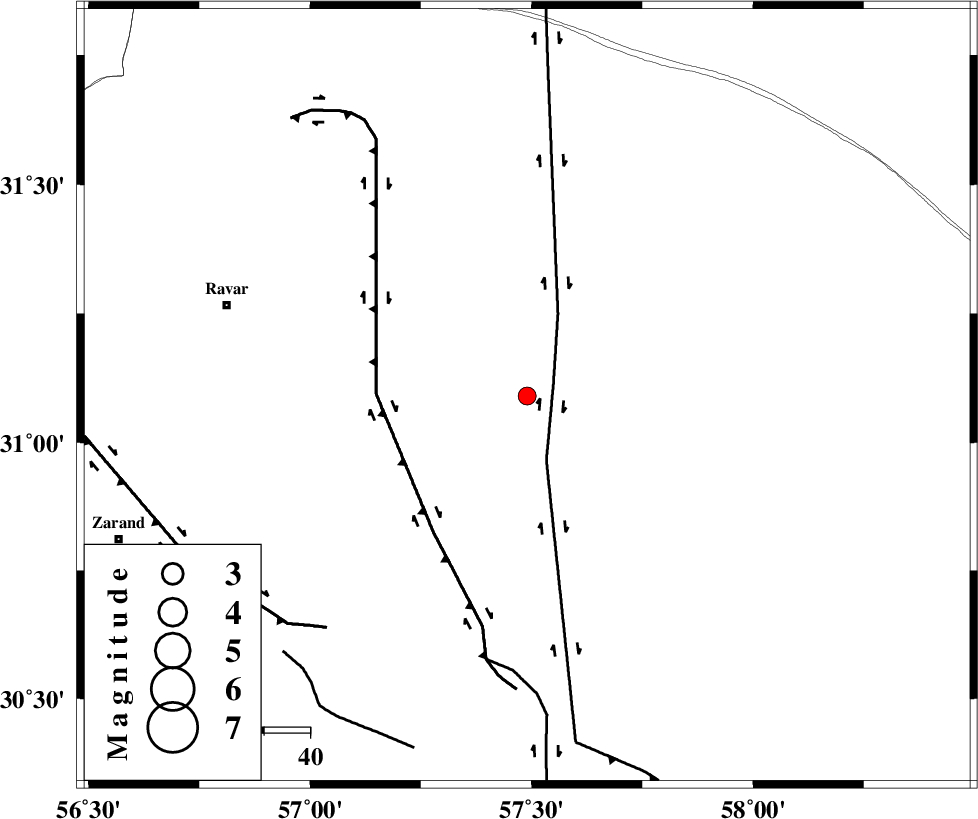

| Location | Lat:31.09 Lon: 57.49 |
| Region | Kerman Province, 67 km South-East of Ravar |
Nearest Cities |
|
| 59 km North East of Harjand, Kerman Province | |
| 61 km North East of Hejdak, Kerman Province | |
| 67 km South East of Ravar, Kerman Province | |
| 68 km North East of Dehlulu, Kerman Province | |
| 71 km South East of Dehali, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| NAYBAND_F (Length: 258 km) , Distance to epicenter: 6 km | |
| LAKARKUH_F (Length: 138 km) , Distance to epicenter: 32 km | |
| GOLBAF_SIRCH_F (Length: 114 km) , Distance to epicenter: 58 km | |
| Number of Phases | 5 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 9.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91080 | IIEES | BSRN | N | 57.8 | 0.18 | 2013-11-27 09:06:00 | 2013-11-27 09:42:00 | n |
| 91081 | IIEES | TABS | E | 21.5 | 0.32 | 2013-11-27 09:06:30 | 2013-11-27 09:42:00 | n |
| 91082 | IIEES | YZKH | E | 14.5 | 0.37 | 2013-11-27 09:06:40 | 2013-11-27 09:42:00 | n |
| 91083 | IIEES | YZKH | N | 13.6 | 0.26 | 2013-11-27 09:06:43 | 2013-11-27 09:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KRBR | Z | Pg | E | 2013-11-27 09:05:29 | -0.27 | y | 142 | 210 | |||
| IIEES | BSRN | Z | Pg | E | 2013-11-27 09:05:35 | -0.04 | y | 183 | 58 | |||
| IIEES | TABS | Z | Pn | E | 2013-11-27 09:05:49 | 0.52 | y | 286 | 353 | |||
| IIEES | TABS | N | Sg | E | 2013-11-27 09:06:25 | -0.42 | y | 286 | 353 | |||
| IIEES | YZKH | Z | Pn | E | 2013-11-27 09:05:52 | 0.22 | y | 310 | 298 | |||
