Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2013-11-29 23:36:39.0 |
| Date & Time (Local) | 1392/9/9 03:06:39.0 |

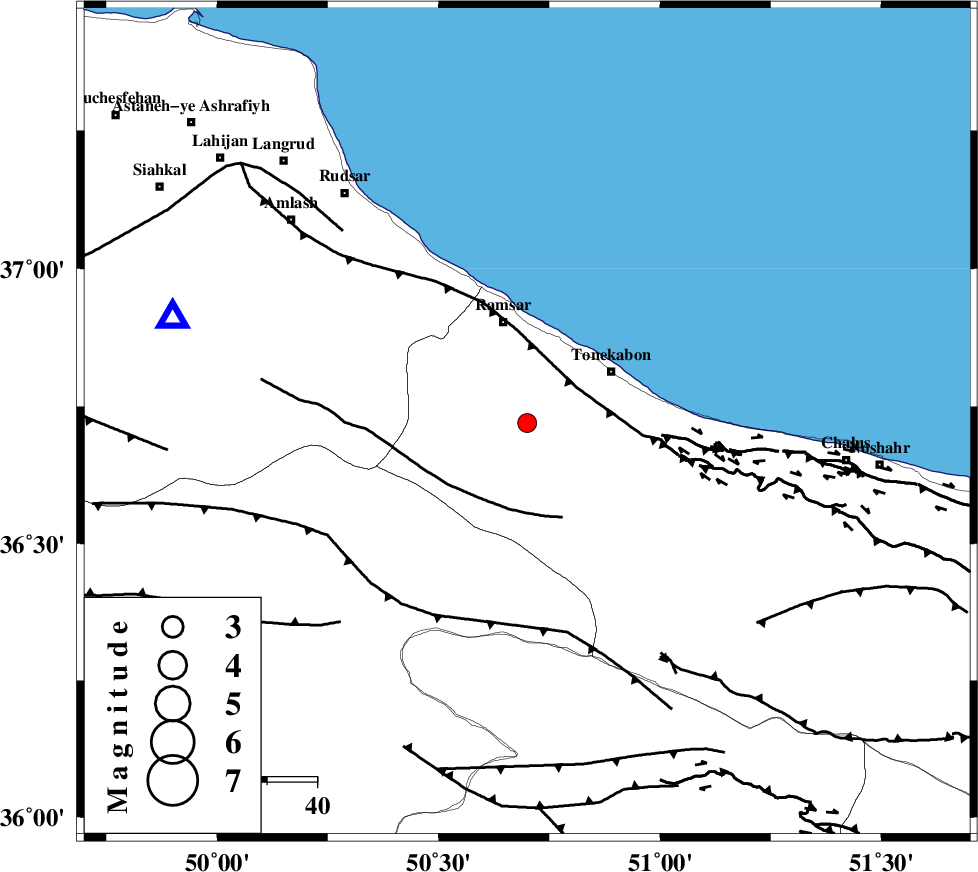

| Location | Lat:36.72 Lon: 50.7 |
| Region | Mazandaran Province, 21 km South of Ramsar |
Nearest Cities |
|
| 15 km West of Soleymanabad, Mazandaran Province | |
| 19 km West of Khorramabad, Mazandaran Province | |
| 20 km West of Tonekabon, Mazandaran Province | |
| 21 km South of Ramsar, Mazandaran Province | |
| 24 km West of Kanza, Mazandaran Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHAZAR_F (Length: 523 km) , Distance to epicenter: 12 km | |
| BONAN_F (Length: 74 km) , Distance to epicenter: 18 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 23 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >4.8 km |
| Error in Longitude | 3.6 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91113 | IIEES | ZNJK | N | 89.2 | 0.2 | 2013-11-29 23:37:33 | 2013-11-30 01:16:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | CHTH | Z | Pg | E | 2013-11-29 23:36:56 | 0.13 | y | 98.2 | 157 | |||
| IIEES | CHTH | N | Sg | E | 2013-11-29 23:37:07 | -0.18 | y | 98.2 | 157 | |||
| IIEES | DAMV | Z | Pg | E | 2013-11-29 23:37:06 | 0.01 | y | 167 | 136 | |||
| IIEES | ZNJK | Z | Pg | E | 2013-11-29 23:37:08 | -0.27 | y | 180 | 269 | |||
| IIEES | ZNJK | N | Sg | E | 2013-11-29 23:37:30 | 0.1 | y | 180 | 269 | |||
| IIEES | ASAO | Z | Pn | E | 2013-11-29 23:37:18 | 0.21 | y | 249 | 194 | |||
