Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2013-12-07 11:34:03.4 |
| Date & Time (Local) | 1392/9/16 15:04:03.4 |

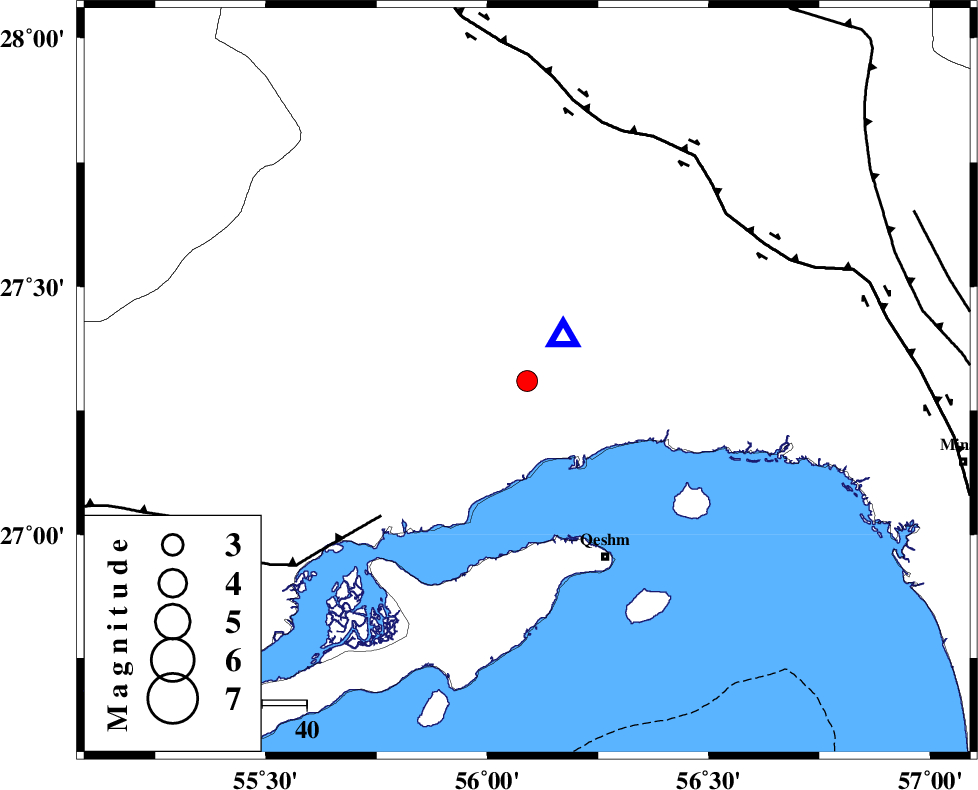

| Location | Lat:27.31 Lon: 56.09 |
| Region | Hormozgan Province, 24 km North-West of Bandar-e abbas |
Nearest Cities |
|
| 24 km North West of Bandar-e abbas, Hormozgan Province | |
| 41 km South East of Fin, Hormozgan Province | |
| 43 km North West of Qeshm, Hormozgan Province | |
| 59 km North of Suza, Hormozgan Province | |
| 64 km North East of Bandar-e khamir, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 45 km | |
| HZF2 (Length: 437 km) , Distance to epicenter: 58 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 87 km | |
| Number of Phases | 4 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >12.9 km |
| Error in Longitude | 24 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91160 | IIEES | BNDS | E | 5586.3 | 0.44 | 2013-12-07 11:34:11 | 2013-12-07 12:40:00 | n |
| 91161 | IIEES | KRBR | N | 51 | 0.28 | 2013-12-07 11:35:26 | 2013-12-07 12:40:00 | n |
| 91162 | IIEES | KRBR | E | 56.2 | 0.24 | 2013-12-07 11:35:29 | 2013-12-07 12:40:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2013-12-07 11:34:06 | -0.07 | y | 13.2 | 40 | |||
| IIEES | KRBR | Z | Pn | E | 2013-12-07 11:34:48 | -0.14 | y | 304 | 12 | |||
| IIEES | BSRN | Z | Pn | E | 2013-12-07 11:35:25 | 0.39 | y | 594 | 29 | |||
| IIEES | BSRN | E | Sg | E | 2013-12-07 11:36:48 | -0.03 | y | 594 | 29 | |||
