Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2013-12-10 06:59:27.6 |
| Date & Time (Local) | 1392/9/19 10:29:27.6 |

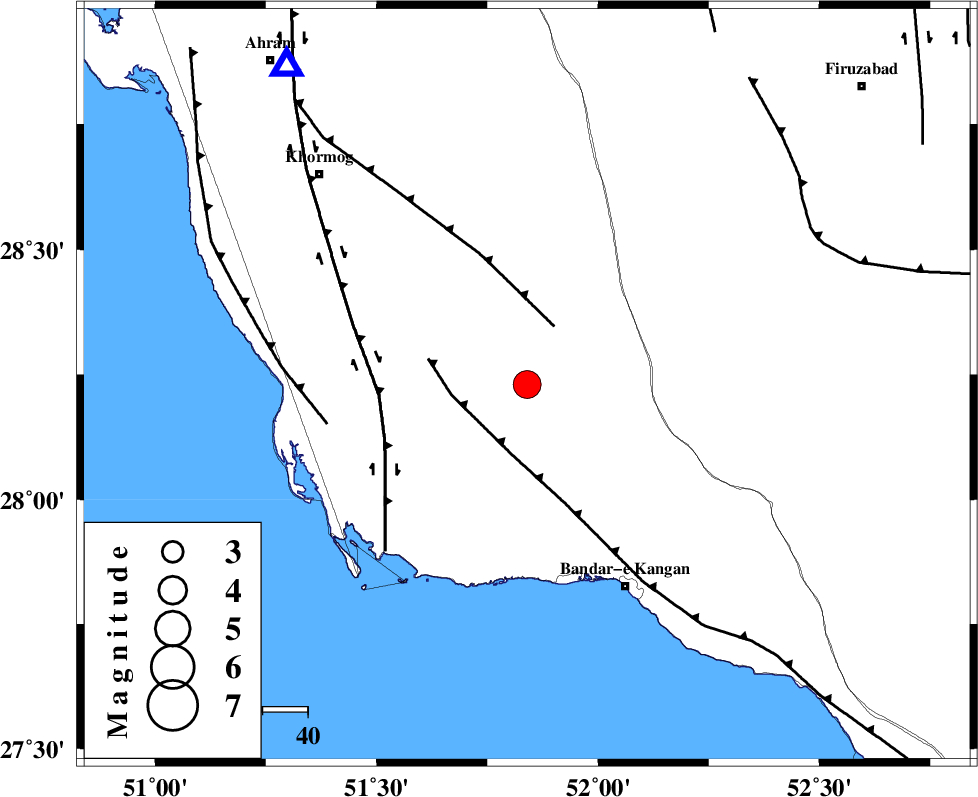

| Location | Lat:28.23 Lon: 51.84 |
| Region | Bushehr Province, 50 km North-West of Bandar-e kangan |
Nearest Cities |
|
| 19 km North of Abdan, Bushehr Province | |
| 20 km South of Shanbeh, Bushehr Province | |
| 31 km North West of Riz, Bushehr Province | |
| 32 km North East of Abkesh, Bushehr Province | |
| 34 km South East of Kaki, Bushehr Province | |
| Depth | 8 km |
| Agency | |
Faults within 150 km: |
|
| MFF5 (Length: 74 km) , Distance to epicenter: 14 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 16 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 33 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 7 |
| Error in Latitude | >5.6 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91174 | IIEES | SHGR | N | 94.3 | 0.37 | 2013-12-10 07:02:13 | 2013-12-10 07:36:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-12-10 06:59:42 | 0 | y | 88 | 323 | |||
| IIEES | BNDS | Z | Pn | E | 2013-12-10 07:00:30 | 0.09 | y | 437 | 101 | |||
| IIEES | KRBR | Z | Pn | E | 2013-12-10 07:00:40 | -0.22 | y | 517 | 67 | |||
| IIEES | SHGR | Z | Pn | E | 2013-12-10 07:00:40 | -0.07 | y | 520 | 327 | |||
| IIEES | YZKH | Z | Pn | E | 2013-12-10 07:00:42 | 0.15 | y | 532 | 29 | |||
| IIEES | KHMZ | Z | Pn | E | 2013-12-10 07:00:55 | -0.01 | y | 636 | 344 | |||
| IIEES | ASAO | Z | Pn | E | 2013-12-10 07:01:05 | 0.08 | y | 721 | 347 | |||
