Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2013-12-12 03:15:45.1 |
| Date & Time (Local) | 1392/9/21 06:45:45.1 |
| Location | Lat:33.61 Lon: 49.01 |
| Region | Lorestan Province, 16 km North of Dorud |
Nearest Cities |
|
| 5 km of Kagheh, Lorestan Province | |
| 10 km North of Void, Lorestan Province | |
| 13 km East of Chalanchulan, Lorestan Province | |
| 13 km North West of Zhan, Lorestan Province | |
| 14 km North East of Razan, Lorestan Province | |
| Depth | 14 km |
| Agency | |

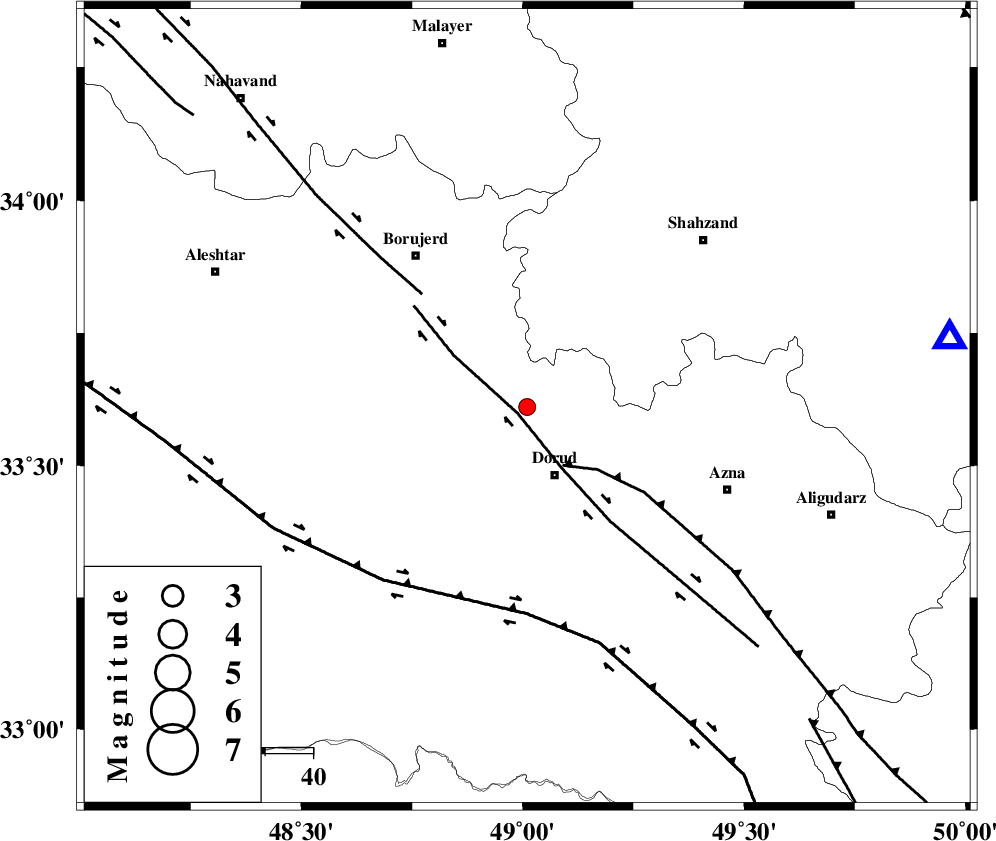

Faults within 150 km: |
|
| DORUD (Length: 100 km) , Distance to epicenter: 2 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 14 km | |
| NAHAVAND_F (Length: 102 km) , Distance to epicenter: 32 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >2.5 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 4.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91193 | IIEES | ASAO | N | 62 | 0.56 | 2013-12-12 03:16:31 | 2013-12-12 04:18:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2013-12-12 03:16:00 | -0.08 | y | 90 | 81 | |||
| IIEES | KHMZ | N | Sg | E | 2013-12-12 03:16:12 | 0.04 | y | 90 | 81 | |||
| IIEES | ASAO | Z | Pg | E | 2013-12-12 03:16:08 | -0.09 | y | 140 | 42 | |||
| IIEES | ASAO | N | Sg | E | 2013-12-12 03:16:25 | 0.04 | y | 140 | 42 | |||
| IIEES | GHVR | Z | Pn | E | 2013-12-12 03:16:21 | 0.13 | y | 228 | 64 | |||
| IIEES | GHVR | E | Sg | E | 2013-12-12 03:16:49 | -0.04 | y | 228 | 64 | |||
