Event Specification
Magnitude |
2.7 |
| Date & Time (UTC) | 2013-12-12 14:27:15.2 |
| Date & Time (Local) | 1392/9/21 17:57:15.2 |

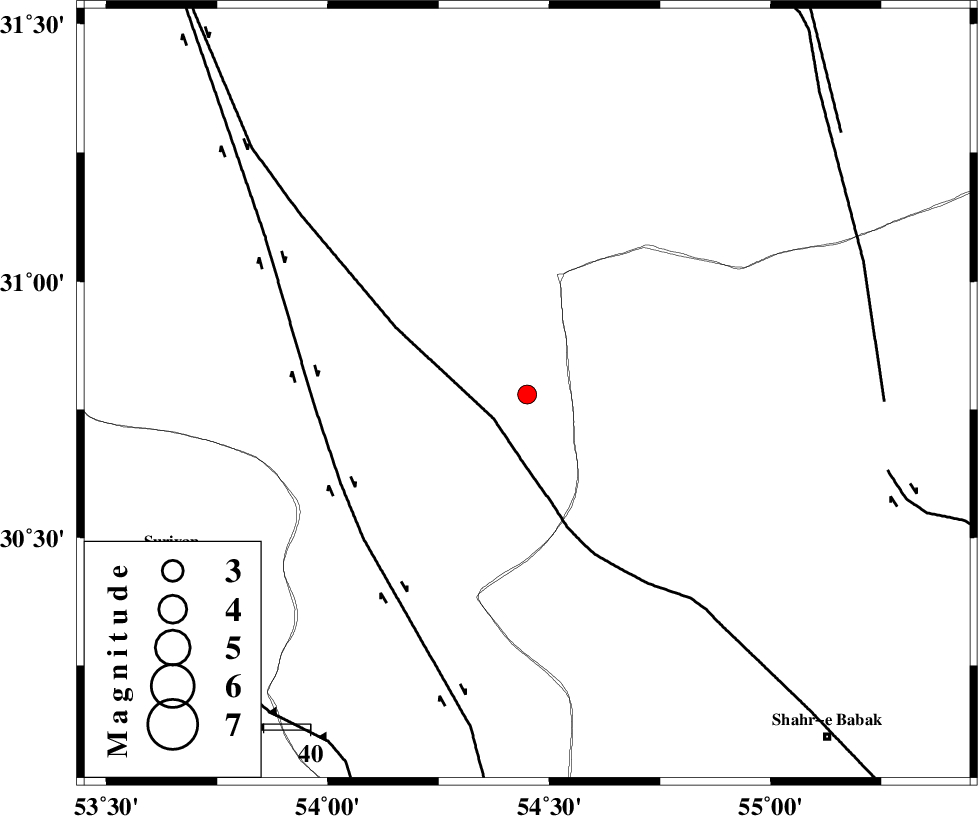

| Location | Lat:30.78 Lon: 54.45 |
| Region | Yazd Province, 80 km North of Harat |
Nearest Cities |
|
| 37 km North West of Khabar, Kerman Province | |
| 40 km North East of Marvast, Yazd Province | |
| 43 km North West of Dehaj, Kerman Province | |
| 56 km North East of Harabarjan, Yazd Province | |
| 63 km North West of Jozam, Kerman Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SHAHR_E_BABAK_F2 (Length: 272 km) , Distance to epicenter: 9 km | |
| SHAHR_E_BABAK_F1 (Length: 392 km) , Distance to epicenter: 45 km | |
| ANAR_F (Length: 127 km) , Distance to epicenter: 77 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >2 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 4.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91200 | IIEES | KRBR | E | 50.4 | 0.28 | 2013-12-12 14:28:25 | 2013-12-12 03:17:00 | n |
| 91201 | IIEES | KRBR | N | 47.6 | 0.52 | 2013-12-12 14:28:31 | 2013-12-12 03:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2013-12-12 14:27:45 | 0.19 | y | 179 | 4 | |||
| IIEES | YZKH | N | Sg | E | 2013-12-12 14:28:06 | -0.16 | y | 179 | 4 | |||
| IIEES | KRBR | Z | Pg | E | 2013-12-12 14:27:54 | -0.06 | y | 239 | 111 | |||
| IIEES | TABS | Z | Pn | E | 2013-12-12 14:28:13 | 0 | y | 406 | 38 | |||
| IIEES | BNDS | Z | Pn | E | 2013-12-12 14:28:13 | -0.11 | y | 410 | 155 | |||
| IIEES | BSRN | Z | Pn | E | 2013-12-12 14:28:20 | 0.17 | y | 464 | 72 | |||
