Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2013-12-29 03:04:30.3 |
| Date & Time (Local) | 1392/10/8 06:34:30.3 |

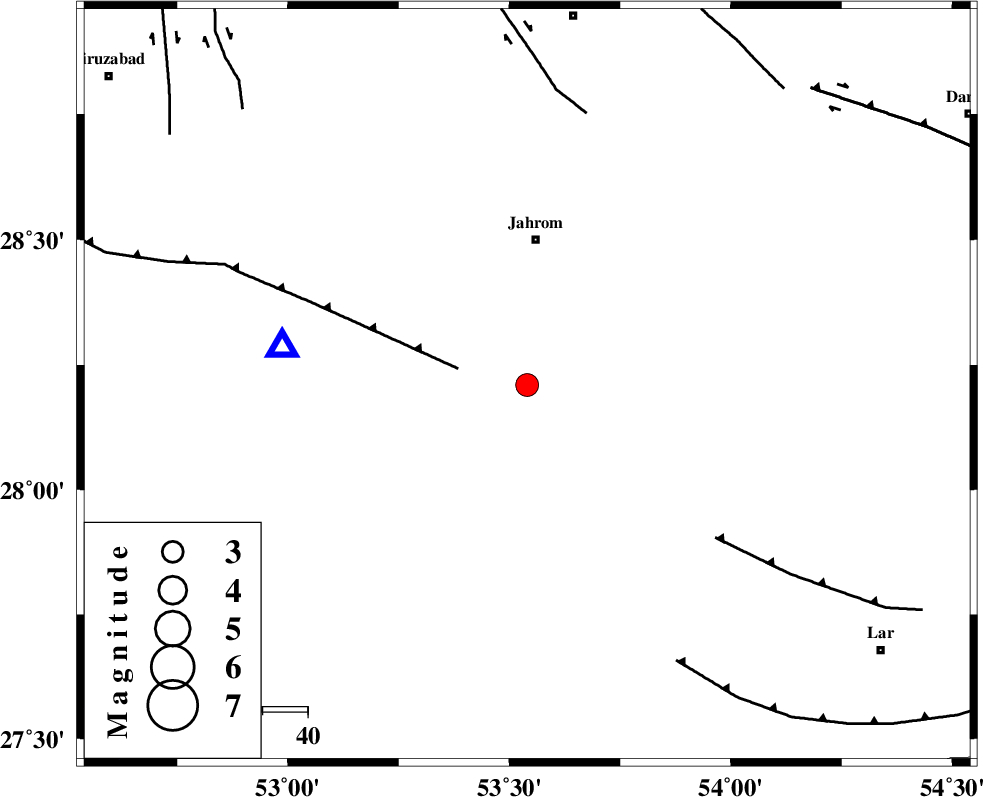

| Location | Lat:28.21 Lon: 53.54 |
| Region | Fars Province, 32 km South of Jahrom |
Nearest Cities |
|
| 8 km North of Balafan, Fars Province | |
| 20 km South of Hasanabad, Fars Province | |
| 27 km South East of Mobarakabad, Fars Province | |
| 32 km South of Jahrom, Fars Province | |
| 33 km North West of Juyam, Fars Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 16 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 54 km | |
| SARVESTAN_F (Length: 94 km) , Distance to epicenter: 62 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >6.9 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 4.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91302 | IIEES | KRBR | N | 54.9 | 0.64 | 2013-12-29 03:06:26 | 2013-12-29 03:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2013-12-29 03:05:07 | -0.12 | y | 231 | 289 | |||
| IIEES | AHRM | N | Sg | E | 2013-12-29 03:05:35 | 0.1 | y | 231 | 289 | |||
| IIEES | KRBR | Z | Pn | E | 2013-12-29 03:05:24 | 0.11 | y | 370 | 57 | |||
| IIEES | KRBR | E | Sg | E | 2013-12-29 03:06:14 | 0.01 | y | 370 | 57 | |||
| IIEES | YZKH | Z | Pn | E | 2013-12-29 03:05:36 | -0.13 | y | 474 | 12 | |||
