Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2013-12-30 04:02:20.0 |
| Date & Time (Local) | 1392/10/9 07:32:20.0 |

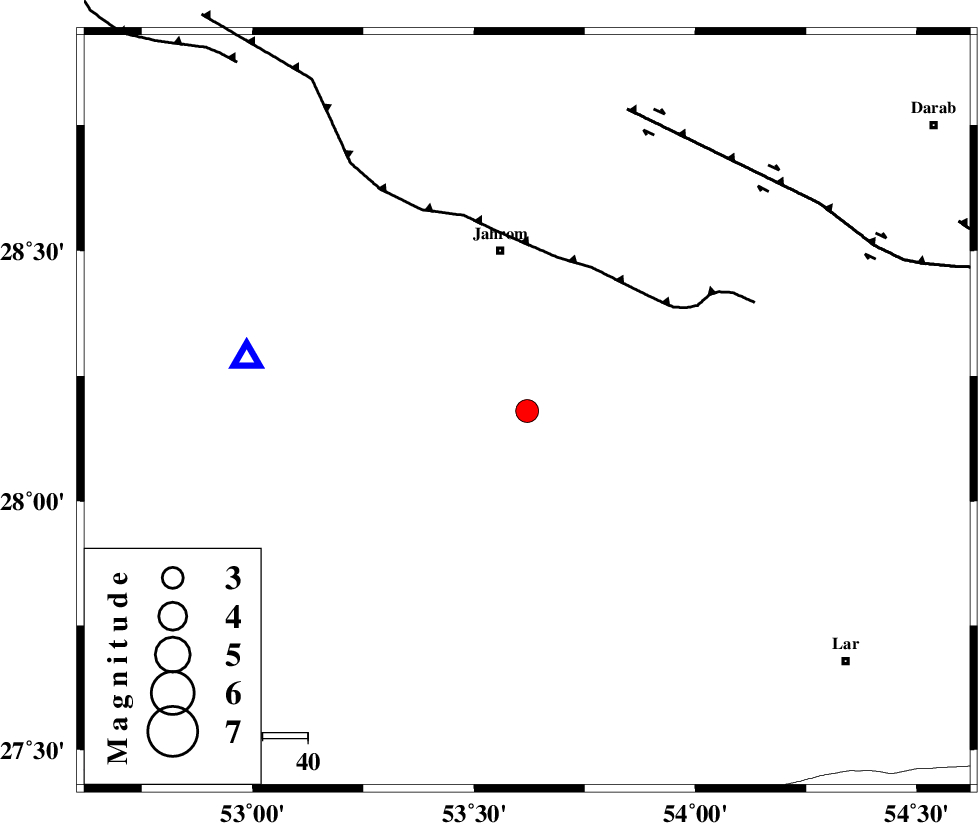

| Location | Lat:28.18 Lon: 53.62 |
| Region | Fars Province, 37 km South of Jahrom |
Nearest Cities |
|
| 3 km North of Balafan, Fars Province | |
| 25 km West of Juyam, Fars Province | |
| 26 km South East of Hasanabad, Fars Province | |
| 33 km South West of Khorramabad, Fars Province | |
| 34 km North West of Kureh, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| QIR_F (Length: 130 km) , Distance to epicenter: 24 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 46 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 63 km | |
| Number of Phases | 5 |
| RMS | 0.2 |
| Number of Stations | 3 |
| Error in Latitude | >6.8 km |
| Error in Longitude | 1.8 km |
| Error in Depth | 8.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91321 | IIEES | BNDS | E | 142.9 | 0.59 | 2013-12-30 04:03:52 | 2013-12-30 04:44:00 | n |
| 91322 | IIEES | BNDS | N | 142 | 0.27 | 2013-12-30 04:04:02 | 2013-12-30 04:44:00 | n |
| 91323 | IIEES | KRBR | E | 70.7 | 0.63 | 2013-12-30 04:04:09 | 2013-12-30 04:44:00 | n |
| 91324 | IIEES | KRBR | N | 88.5 | 0.77 | 2013-12-30 04:04:14 | 2013-12-30 04:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pn | E | 2013-12-30 04:02:57 | 0.19 | y | 240 | 289 | |||
| IIEES | AHRM | N | Sg | E | 2013-12-30 04:03:27 | -0.06 | y | 240 | 289 | |||
| IIEES | BNDS | Z | Pn | E | 2013-12-30 04:03:00 | 0.05 | y | 266 | 108 | |||
| IIEES | KRBR | Z | Pn | E | 2013-12-30 04:03:12 | -0.39 | y | 365 | 56 | |||
| IIEES | KRBR | N | Sg | E | 2013-12-30 04:04:02 | 0.18 | y | 365 | 56 | |||
