Event Specification
Magnitude |
2.8 |
| Date & Time (UTC) | 2013-12-31 23:46:45.6 |
| Date & Time (Local) | 1392/10/11 03:16:45.6 |

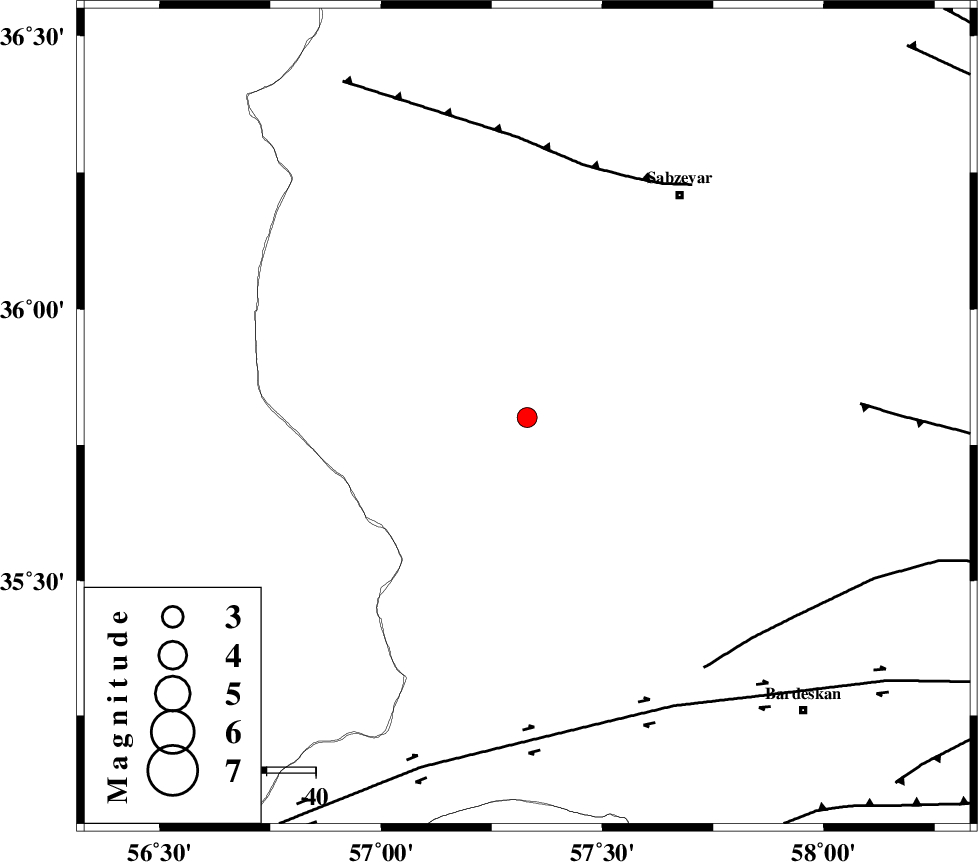

| Location | Lat:35.8 Lon: 57.33 |
| Region | Khorasan(center) Province, 55 km South-West of Sabzevar |
Nearest Cities |
|
| 25 km North West of Bejdan, Khorasan(center) Province | |
| 40 km West of Tondak, Khorasan(center) Province | |
| 43 km South West of Sheshtamad, Khorasan(center) Province | |
| 48 km South of Rivand, Khorasan(center) Province | |
| 55 km South West of Sabzevar, Khorasan(center) Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| SABZEVAR_F (Length: 81 km) , Distance to epicenter: 53 km | |
| BIJVARD_F (Length: 83 km) , Distance to epicenter: 63 km | |
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 65 km | |
| Number of Phases | 3 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 2.9 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91340 | IIEES | TABS | N | 69.8 | 0.4 | 2013-12-31 23:48:00 | 2014-01-01 03:09:00 | n |
| 91341 | IIEES | TABS | E | 56.2 | 0.52 | 2013-12-31 23:48:06 | 2014-01-01 03:09:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRO | E | Pg | E | 2013-12-31 23:47:05 | 0 | y | 121 | 281 | |||
| IIEES | BJRD | Z | Pg | E | 2013-12-31 23:47:20 | 0 | y | 211 | 2 | |||
| IIEES | TABS | Z | Pn | E | 2013-12-31 23:47:22 | 0 | y | 239 | 185 | |||
