Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2014-01-01 06:08:32.8 |
| Date & Time (Local) | 1392/10/11 09:38:32.8 |

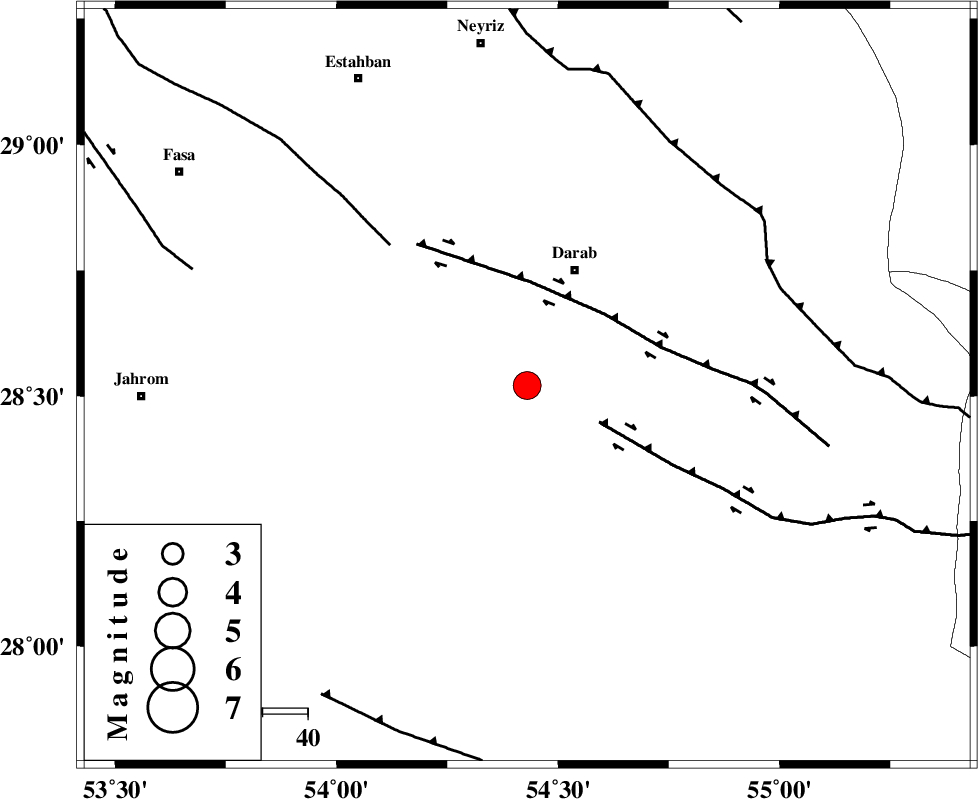

| Location | Lat:28.52 Lon: 54.43 |
| Region | Fars Province, 28 km South-West of Darab |
Nearest Cities |
|
| 16 km South of Nasrovan, Fars Province | |
| 18 km North of Hajiabad, Fars Province | |
| 24 km South of Shahnan, Fars Province | |
| 25 km North of Shahr-e pir, Fars Province | |
| 26 km North East of Dabiran, Fars Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| HZF2 (Length: 437 km) , Distance to epicenter: 18 km | |
| HZF1 (Length: 102 km) , Distance to epicenter: 23 km | |
| BAKHTEGAN_F (Length: 94 km) , Distance to epicenter: 43 km | |
| Number of Phases | 6 |
| RMS | 0.3 |
| Number of Stations | 6 |
| Error in Latitude | >3 km |
| Error in Longitude | 5.6 km |
| Error in Depth | 8.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91344 | IIEES | KRBR | E | 829.9 | 0.5 | 2014-01-01 06:10:01 | 2014-01-01 06:42:00 | n |
| 91345 | IIEES | KRBR | N | 635.9 | 0.5 | 2014-01-01 06:10:02 | 2014-01-01 06:42:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2014-01-01 06:09:07 | 0.29 | y | 212 | 126 | |||
| IIEES | AHRM | Z | Pn | E | 2014-01-01 06:09:18 | 0.07 | y | 309 | 278 | |||
| IIEES | YZKH | Z | Pn | E | 2014-01-01 06:09:33 | 0.21 | y | 429 | 2 | |||
| IIEES | YZKH | N | Sg | E | 2014-01-01 06:10:32 | -0.01 | y | 429 | 2 | |||
| IIEES | TABS | Z | Pn | E | 2014-01-01 06:09:57 | -0.3 | y | 624 | 24 | |||
| IIEES | CHBR | Z | P | E | 2014-01-01 06:10:04 | -0.75 | y | 682 | 117 | |||
