Event Specification
Magnitude |
2.2 |
| Date & Time (UTC) | 2014-01-01 18:44:37.2 |
| Date & Time (Local) | 1392/10/11 22:14:37.2 |
| Location | Lat:32.51 Lon: 50.07 |
| Region | Chaharmahal Bakhtiari Province, 7 km Chelgard |
Nearest Cities |
|
| 7 km North of Chelgard, Chaharmahal Bakhtiari Province | |
| 21 km West of Kukanak, Esfahan Province | |
| 28 km South East of Durak, Chaharmahal Bakhtiari Province | |
| 29 km South West of Ghale? sorkh, Esfahan Province | |
| 35 km West of Organ, Esfahan Province | |
| Depth | 14 km |
| Agency | |

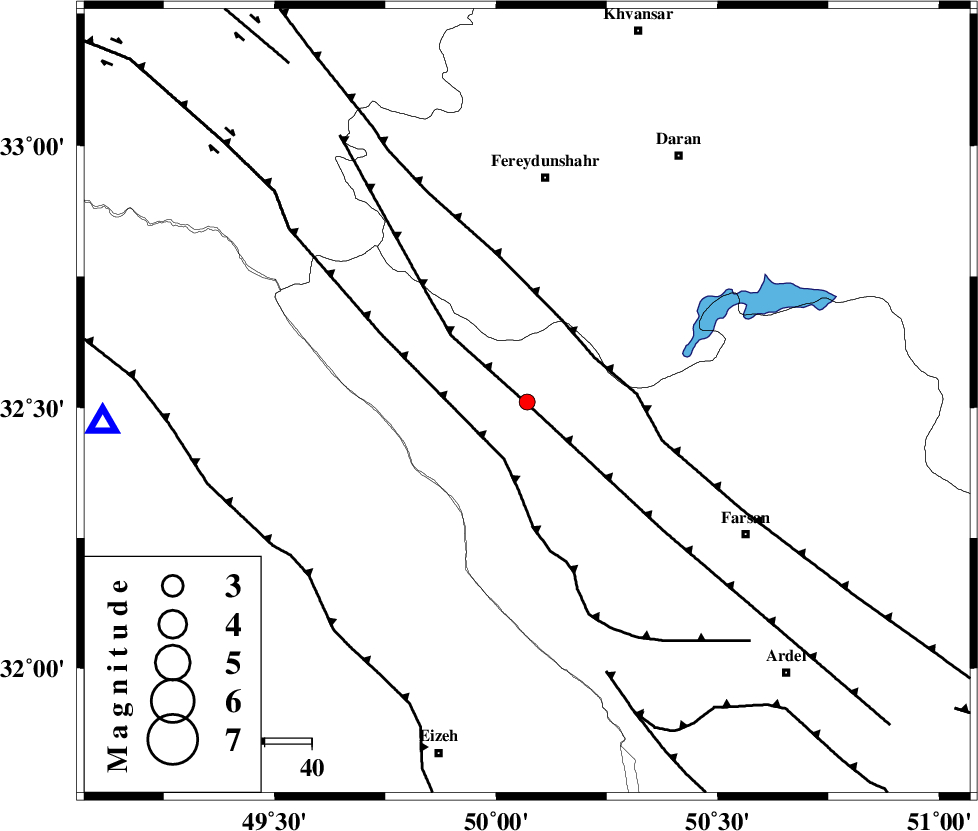

Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 2 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 13 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 17 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2.4 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 4.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91349 | IIEES | SHGR | E | 39.6 | 0.4 | 2014-01-01 18:45:22 | 2014-01-01 07:06:00 | n |
| 91350 | IIEES | SHGR | N | 55.7 | 0.52 | 2014-01-01 18:45:23 | 2014-01-01 07:06:00 | n |
| 91351 | IIEES | GHVR | E | 15.9 | 0.52 | 2014-01-01 18:45:53 | 2014-01-01 07:06:00 | n |
| 91352 | IIEES | GHVR | N | 12.4 | 0.48 | 2014-01-01 18:45:59 | 2014-01-01 07:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-01-01 18:44:58 | -0.1 | y | 128 | 250 | |||
| IIEES | SHGR | N | Sg | E | 2014-01-01 18:45:14 | 0.06 | y | 128 | 250 | |||
| IIEES | KHMZ | Z | Pg | E | 2014-01-01 18:45:00 | 0.07 | y | 137 | 356 | |||
| IIEES | KHMZ | E | Sg | E | 2014-01-01 18:45:16 | -0.04 | y | 137 | 356 | |||
| IIEES | ASAO | Z | Pn | E | 2014-01-01 18:45:13 | -0.03 | y | 226 | 359 | |||
| IIEES | GHVR | Z | Pn | E | 2014-01-01 18:45:15 | 0.03 | y | 244 | 26 | |||
