Event Specification
Magnitude |
4.7 |
| Date & Time (UTC) | 2014-01-03 14:21:58.1 |
| Date & Time (Local) | 1392/10/13 17:51:58.1 |

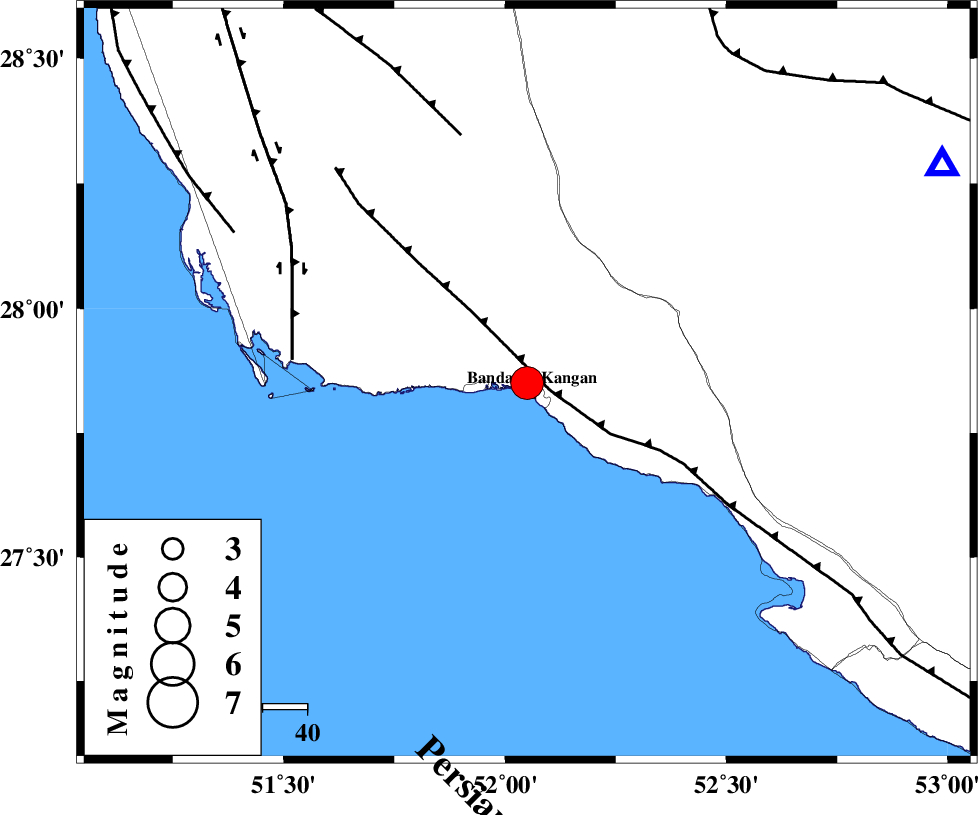

| Location | Lat:27.85 Lon: 52.05 |
| Region | Bushehr Province, 2 km Bandar-e kangan |
Nearest Cities |
|
| 3 km North of Bandar-e kangan, Bushehr Province | |
| 22 km South of Riz, Bushehr Province | |
| 26 km North West of Jam, Bushehr Province | |
| 35 km North West of Bandar-e taheri, Bushehr Province | |
| 38 km South East of Abdan, Bushehr Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MFF3 (Length: 292 km) , Distance to epicenter: 5 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 52 km | |
| MFF5 (Length: 74 km) , Distance to epicenter: 57 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 1.3 km |
| Error in Depth | 3.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91367 | IIEES | SNGE | E | 59.5 | 0.56 | 2014-01-03 14:25:42 | 2014-01-03 02:54:00 | n |
| 91368 | IIEES | SNGE | N | 47.8 | 0.56 | 2014-01-03 14:25:57 | 2014-01-03 02:54:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2014-01-03 14:22:20 | -0.01 | y | 135 | 327 | |||
| IIEES | AHRM | E | Sg | E | 2014-01-03 14:22:37 | 0.07 | y | 135 | 327 | |||
| IIEES | KRBR | Z | Pn | E | 2014-01-03 14:23:09 | 0.11 | y | 516 | 62 | |||
| IIEES | KRBR | N | Sg | E | 2014-01-03 14:24:22 | -0.05 | y | 516 | 62 | |||
| IIEES | YZKH | Z | Pn | E | 2014-01-03 14:23:15 | 0.15 | y | 560 | 25 | |||
| IIEES | YZKH | E | Sg | E | 2014-01-03 14:24:33 | -0.05 | y | 560 | 25 | |||
| IIEES | SHGR | Z | Pn | E | 2014-01-03 14:23:15 | -0.15 | y | 567 | 327 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-01-03 14:23:30 | -0.14 | y | 683 | 343 | |||
