Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2014-01-05 14:46:09.7 |
| Date & Time (Local) | 1392/10/15 18:16:09.7 |

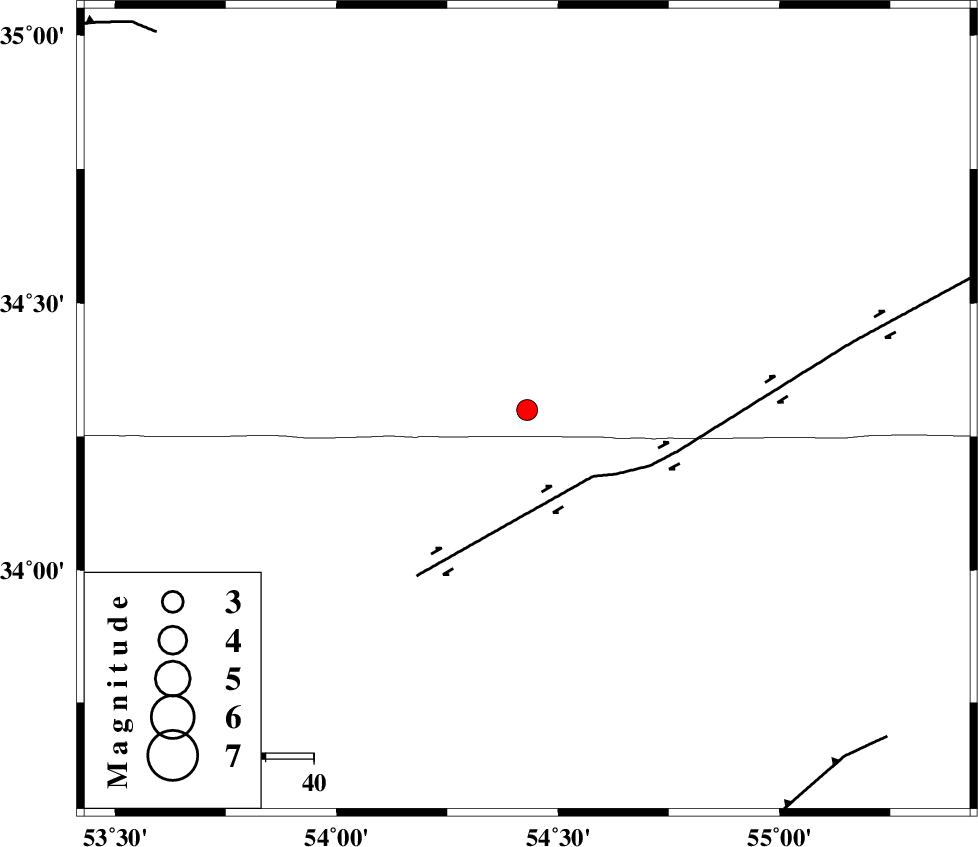

| Location | Lat:34.3 Lon: 54.43 |
| Region | Semnan Province, 208 km South of Damghan |
Nearest Cities |
|
| 28 km North of Jondaq, Esfahan Province | |
| 69 km North West of Farrokhi, Esfahan Province | |
| 76 km North of Chupanan, Esfahan Province | |
| 84 km North West of Khur, Esfahan Province | |
| 111 km North West of Mehranjan, Esfahan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 19 km | |
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 98 km | |
| TORUD_F (Length: 136 km) , Distance to epicenter: 105 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 1.6 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91377 | IIEES | GHVR | N | 42 | 0.36 | 2014-01-05 14:47:36 | 2014-01-05 03:13:00 | n |
| 91378 | IIEES | GHVR | E | 50.4 | 0.52 | 2014-01-05 14:47:36 | 2014-01-05 03:13:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pn | E | 2014-01-05 14:46:43 | 0.05 | y | 212 | 176 | |||
| IIEES | YZKH | N | Sg | E | 2014-01-05 14:47:10 | -0.01 | y | 212 | 176 | |||
| IIEES | TABS | Z | Pn | E | 2014-01-05 14:46:49 | 0.02 | y | 259 | 105 | |||
| IIEES | TABS | N | Sg | E | 2014-01-05 14:47:22 | 0.01 | y | 259 | 105 | |||
| IIEES | DAMV | Z | Pn | E | 2014-01-05 14:46:50 | 0 | y | 268 | 304 | |||
| IIEES | BSRN | Z | Pn | E | 2014-01-05 14:47:20 | -0.1 | y | 509 | 119 | |||
