Event Specification
Magnitude |
2 |
| Date & Time (UTC) | 2014-01-07 16:16:40.3 |
| Date & Time (Local) | 1392/10/17 19:46:40.3 |

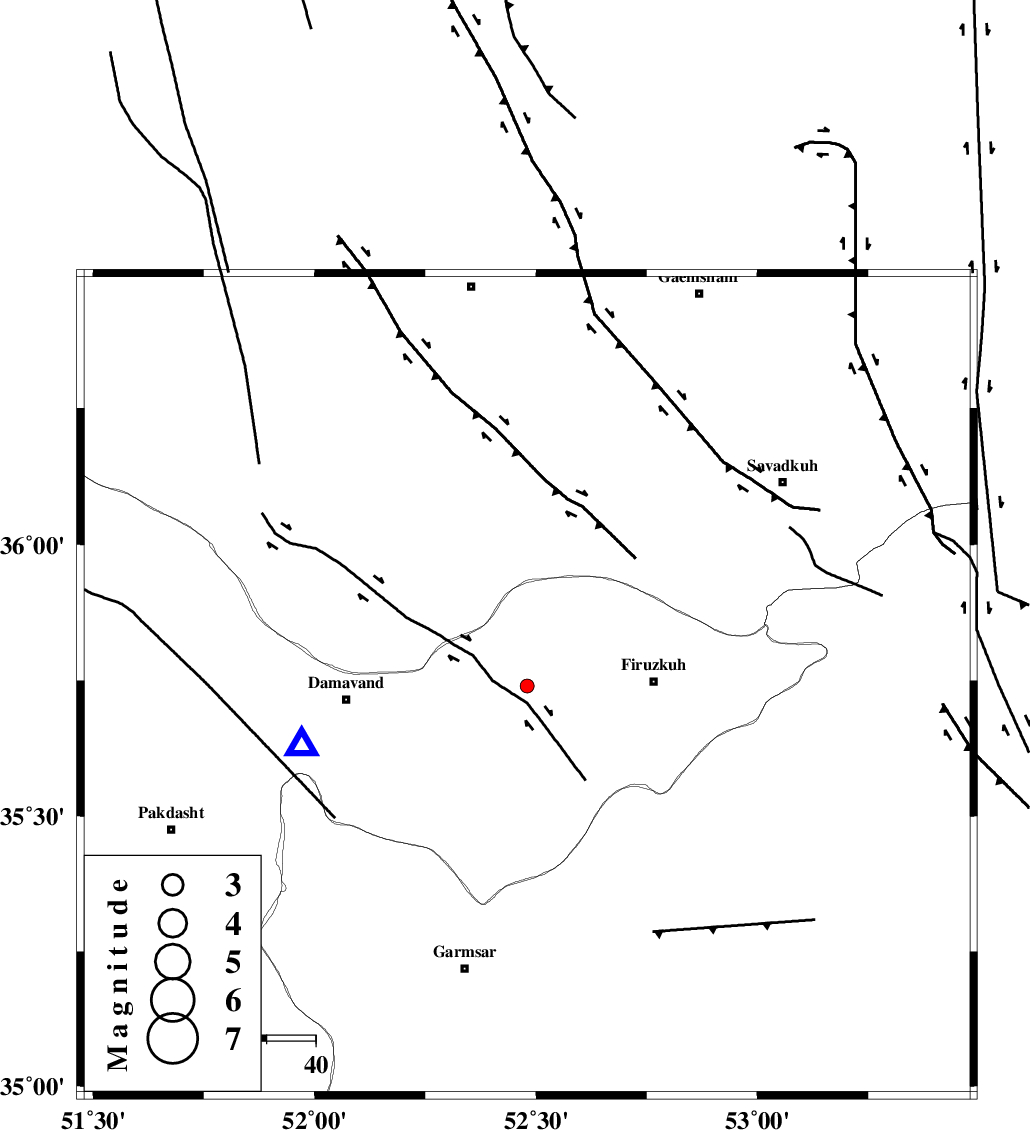

| Location | Lat:35.74 Lon: 52.48 |
| Region | Tehran Province, 26 km West of Firuzkuh |
Nearest Cities |
|
| 8 km of Arjomand, Tehran Province | |
| 19 km North East of Sarbandan, Tehran Province | |
| 20 km West of Shahrabad, Tehran Province | |
| 21 km North West of Atashan, Tehran Province | |
| 26 km West of Firuzkuh, Tehran Province | |
| Depth | 13 km |
| Agency | |
Faults within 150 km: |
|
| MOSHA_F (Length: 234 km) , Distance to epicenter: 6 km | |
| ATARI_F (Length: 185 km) , Distance to epicenter: 43 km | |
| GARMSAR_F (Length: 77 km) , Distance to epicenter: 50 km | |
| Number of Phases | 6 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 2.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91396 | IIEES | DAMV | E | 137.7 | 0.12 | 2014-01-07 16:16:56 | 2014-01-07 05:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2014-01-07 16:16:49 | 0.08 | y | 47.5 | 255 | |||
| IIEES | DAMV | E | Sg | E | 2014-01-07 16:16:55 | -0.04 | y | 47.5 | 255 | |||
| IIEES | CHTH | Z | Pg | E | 2014-01-07 16:17:01 | -0.01 | y | 123 | 279 | |||
| IIEES | CHTH | N | S | E | 2014-01-07 16:17:16 | 0 | y | 123 | 279 | |||
| IIEES | GHVR | Z | Pg | E | 2014-01-07 16:17:11 | -0.06 | y | 180 | 219 | |||
| IIEES | GHVR | E | Sg | E | 2014-01-07 16:17:33 | 0.03 | y | 180 | 219 | |||
