Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2014-01-07 23:54:43.8 |
| Date & Time (Local) | 1392/10/18 03:24:43.8 |

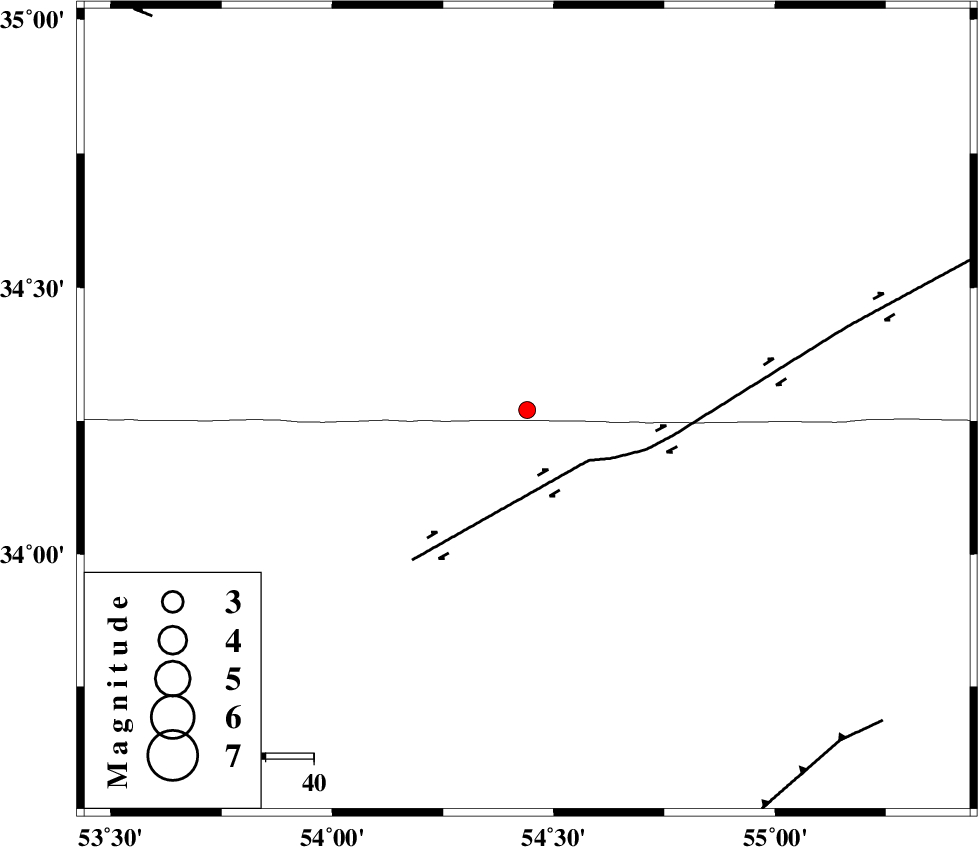

| Location | Lat:34.27 Lon: 54.44 |
| Region | Semnan Province, 211 km South of Damghan |
Nearest Cities |
|
| 25 km North of Jondaq, Esfahan Province | |
| 66 km North West of Farrokhi, Esfahan Province | |
| 73 km North of Chupanan, Esfahan Province | |
| 81 km North West of Khur, Esfahan Province | |
| 108 km North West of Mehranjan, Esfahan Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| DORUNEH_F (Length: 713 km) , Distance to epicenter: 17 km | |
| BIABANAK_F (Length: 162 km) , Distance to epicenter: 95 km | |
| TORUD_F (Length: 136 km) , Distance to epicenter: 108 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 1.9 km |
| Error in Depth | 4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91397 | IIEES | DAMV | E | 26 | 0.44 | 2014-01-07 23:56:15 | 2014-01-08 02:56:00 | n |
| 91398 | IIEES | GHVR | E | 14 | 0.36 | 2014-01-07 23:56:33 | 2014-01-08 02:56:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2014-01-07 23:55:18 | 0.01 | y | 209 | 176 | |||
| IIEES | SHRO | E | Pg | E | 2014-01-07 23:55:23 | 0 | y | 241 | 36 | |||
| IIEES | DAMV | Z | Pn | E | 2014-01-07 23:55:25 | -0.04 | y | 271 | 305 | |||
| IIEES | DAMV | E | Sg | E | 2014-01-07 23:56:00 | 0.03 | y | 271 | 305 | |||
