Event Specification
Magnitude |
4.5 |
| Date & Time (UTC) | 2014-01-10 08:12:42.6 |
| Date & Time (Local) | 1392/10/20 11:42:42.6 |

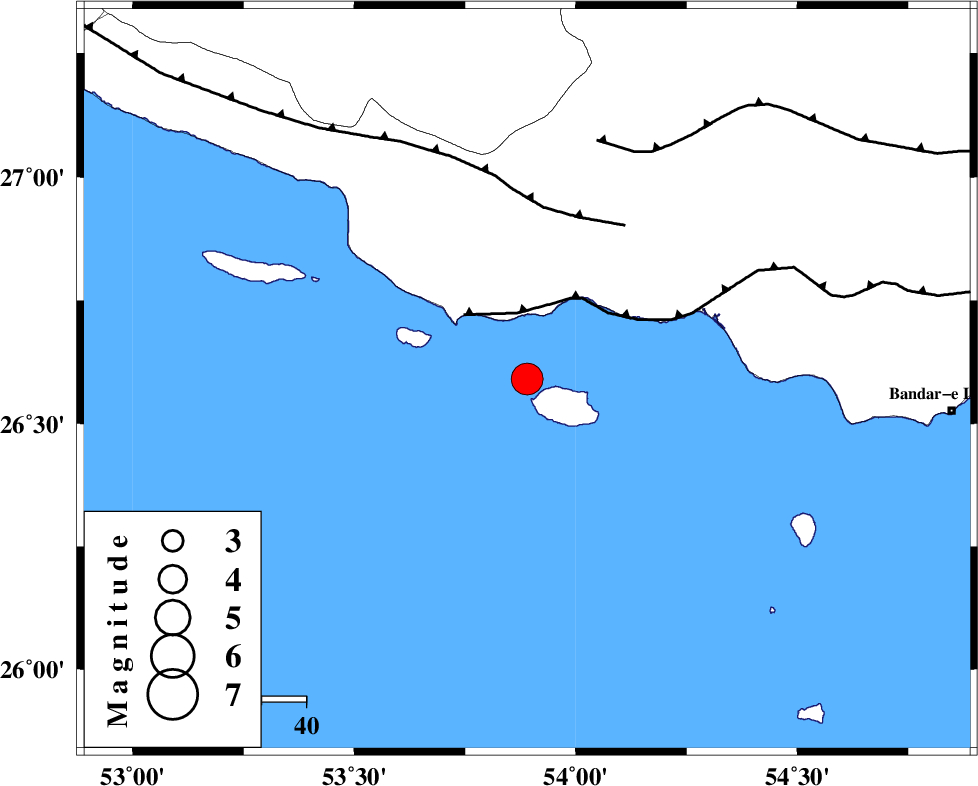

| Location | Lat:26.59 Lon: 53.89 |
| Region | Persian Gulf, 96 km West of Bandar-e lengeh |
Nearest Cities |
|
| 61 km South West of Jenah, Hormozgan Province | |
| 66 km South East of Ahl, Fars Province | |
| 75 km South East of Ashkenan, Fars Province | |
| 82 km South West of Bastak, Hormozgan Province | |
| 96 km North West of Bandar-e lengeh, Hormozgan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| ZFF1 (Length: 165 km) , Distance to epicenter: 15 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 38 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 56 km | |
| Number of Phases | 6 |
| RMS | 0.4 |
| Number of Stations | 8 |
| Error in Latitude | >12.2 km |
| Error in Longitude | 3 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91425 | IIEES | SHGR | N | 85.8 | 0.48 | 2014-01-10 08:15:47 | 2014-01-10 08:50:00 | n |
| 91426 | IIEES | SHGR | E | 89.5 | 0.56 | 2014-01-10 08:15:48 | 2014-01-10 08:50:00 | n |
| 91427 | IIEES | KHMZ | N | 27.5 | 0.64 | 2014-01-10 08:16:16 | 2014-01-10 08:50:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pn | E | 2014-01-10 08:13:20 | -0.44 | y | 243 | 68 | |||
| IIEES | AHRM | Z | Pn | E | 2014-01-10 08:13:34 | -0.08 | y | 359 | 315 | |||
| IIEES | KRBR | Z | Pn | E | 2014-01-10 08:13:49 | 0.57 | y | 470 | 36 | |||
| IIEES | CHBR | Z | Pn | E | 2014-01-10 08:14:13 | 0.57 | y | 668 | 98 | |||
| IIEES | ZHSF | Z | Pn | E | 2014-01-10 08:14:23 | -0.45 | y | 755 | 62 | |||
| IIEES | SHRT | Z | Pn | E | 2014-01-10 08:14:54 | 0.1 | y | 996 | 37 | |||
