Event Specification
Magnitude |
3.6 |
| Date & Time (UTC) | 2014-01-13 12:50:48.2 |
| Date & Time (Local) | 1392/10/23 16:20:48.2 |

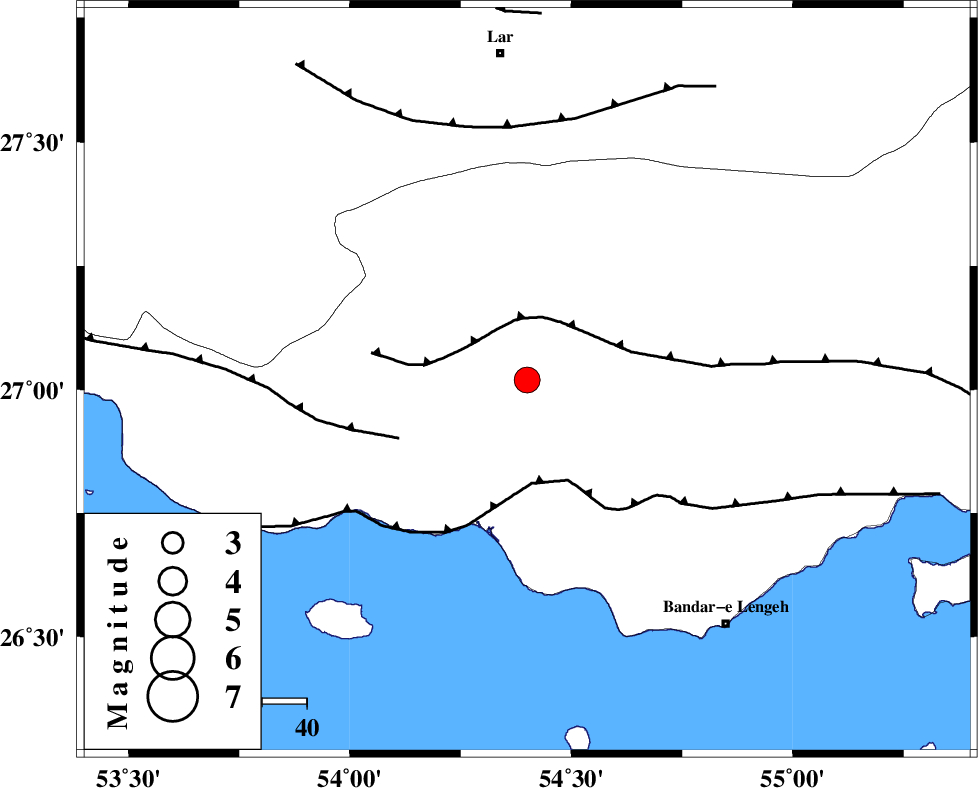

| Location | Lat:27.02 Lon: 54.4 |
| Region | Hormozgan Province, 20 km South of Bastak |
Nearest Cities |
|
| 12 km North East of Jenah, Hormozgan Province | |
| 20 km South of Bastak, Hormozgan Province | |
| 64 km South East of Bagh, Fars Province | |
| 68 km South East of Ahl, Fars Province | |
| 71 km North West of Bandar-e lengeh, Hormozgan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 13 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 23 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 31 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 7.5 km |
| Error in Depth | 7.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91461 | IIEES | BNDS | E | 706.9 | 0.48 | 2014-01-13 12:51:43 | 2014-01-13 01:15:00 | n |
| 91462 | IIEES | BNDS | N | 633.7 | 0.44 | 2014-01-13 12:51:46 | 2014-01-13 01:15:00 | n |
| 91463 | IIEES | KRBR | N | 93.9 | 0.6 | 2014-01-13 12:52:54 | 2014-01-13 01:15:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2014-01-13 12:51:18 | -0.06 | y | 181 | 76 | |||
| IIEES | KRBR | Z | Pn | E | 2014-01-13 12:51:46 | 0.14 | y | 401 | 35 | |||
| IIEES | KRBR | E | Sg | E | 2014-01-13 12:52:40 | 0 | y | 401 | 35 | |||
| IIEES | YZKH | Z | Pn | E | 2014-01-13 12:52:09 | -0.12 | y | 595 | 2 | |||
| IIEES | CHBR | Z | Pn | E | 2014-01-13 12:52:13 | 0.04 | y | 628 | 103 | |||
