Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2014-01-18 12:33:30.6 |
| Date & Time (Local) | 1392/10/28 16:03:30.6 |

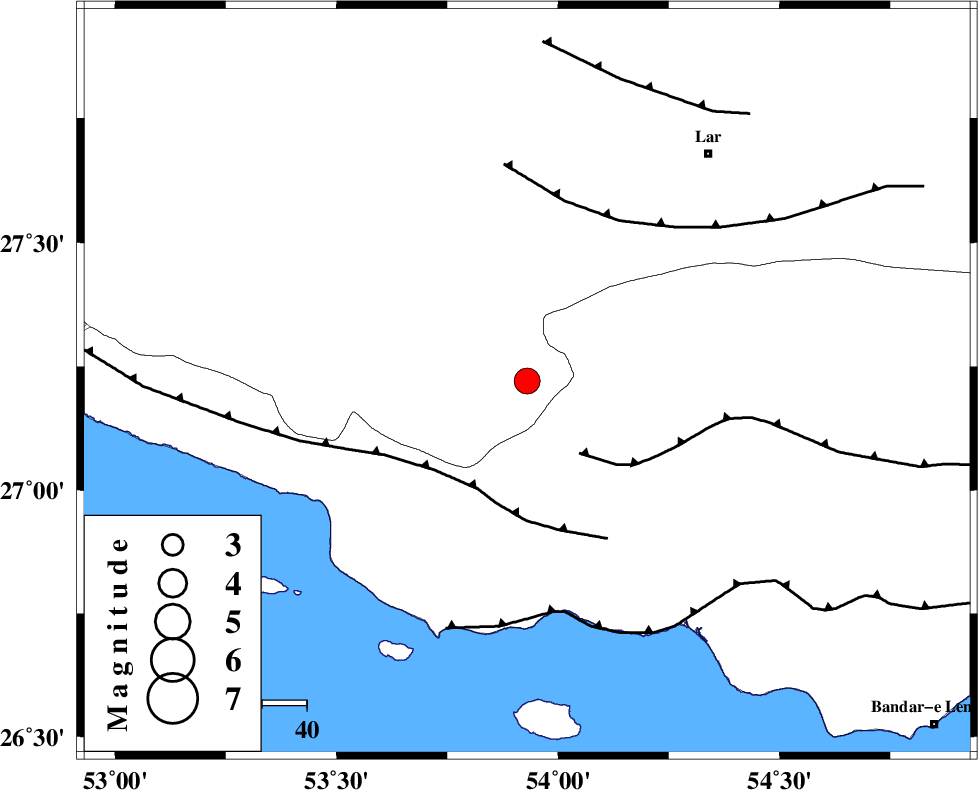

| Location | Lat:27.22 Lon: 53.93 |
| Region | Fars Province, 43 km West of Bastak |
Nearest Cities |
|
| 20 km North East of Ahl, Fars Province | |
| 31 km East of Ashkenan, Fars Province | |
| 33 km South West of Bagh, Fars Province | |
| 42 km North West of Jenah, Hormozgan Province | |
| 43 km North West of Bastak, Hormozgan Province | |
| Depth | 46 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 20 km | |
| MFF3 (Length: 292 km) , Distance to epicenter: 27 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 41 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2.8 km |
| Error in Longitude | 6.3 km |
| Error in Depth | 6.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91533 | IIEES | KRBR | N | 60.9 | 0.52 | 2014-01-18 12:35:29 | 2014-01-18 01:10:00 | n |
| 91534 | IIEES | SHGR | E | 27 | 0.32 | 2014-01-18 12:36:41 | 2014-01-18 01:10:00 | n |
| 91535 | IIEES | SHGR | N | 17 | 0.72 | 2014-01-18 12:36:54 | 2014-01-18 01:10:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2014-01-18 12:34:06 | 0.1 | y | 222 | 84 | |||
| IIEES | BNDS | N | Sg | E | 2014-01-18 12:34:33 | -0.06 | y | 222 | 84 | |||
| IIEES | KRBR | Z | Pn | E | 2014-01-18 12:34:26 | -0.12 | y | 413 | 41 | |||
| IIEES | KRBR | N | Sg | E | 2014-01-18 12:35:23 | 0.05 | y | 413 | 41 | |||
| IIEES | BSRN | Z | Pn | E | 2014-01-18 12:35:05 | 0.03 | y | 728 | 42 | |||
