Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2014-01-27 10:39:40.2 |
| Date & Time (Local) | 1392/11/7 14:09:40.2 |

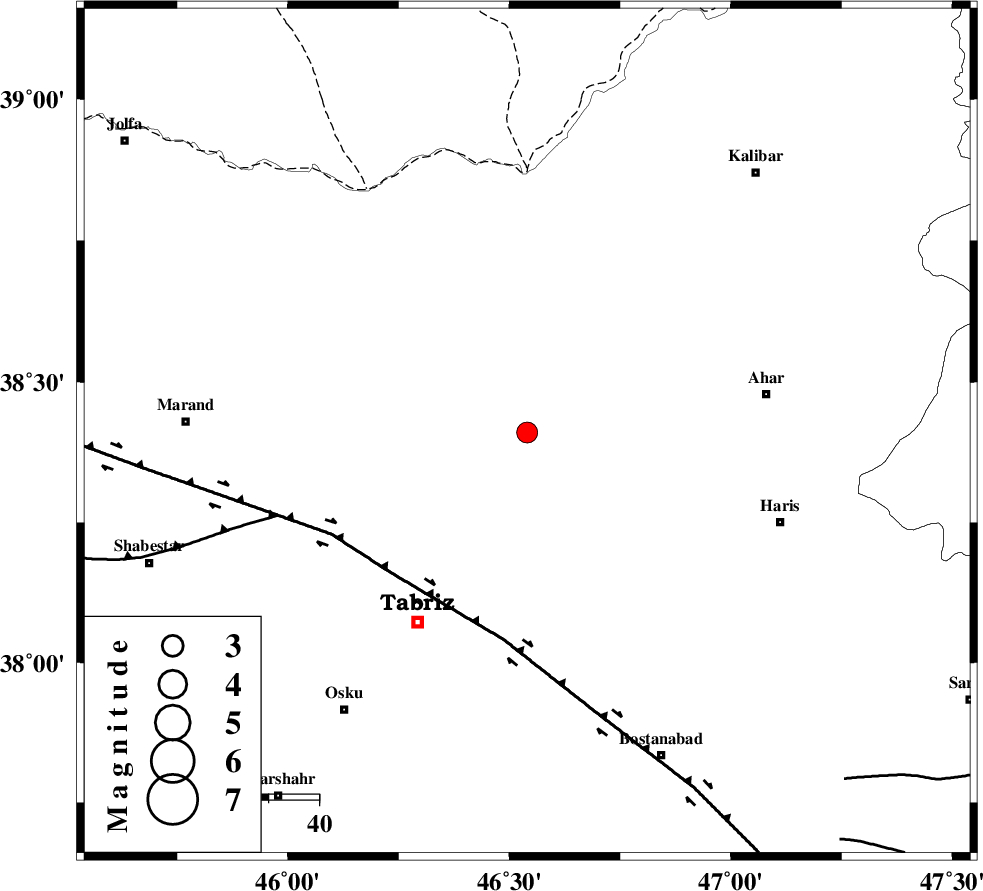

| Location | Lat:38.41 Lon: 46.54 |
| Region | Azarbaijan Sharghi Province, 43 km North-East of Tabriz |
Nearest Cities |
|
| 11 km of Varzagan, Azarbaijan Sharghi Province | |
| 14 km North of Sarand, Azarbaijan Sharghi Province | |
| 17 km South of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 22 km North East of Yangi esperan, Azarbaijan Sharghi Province | |
| 27 km North of Khvajeh, Azarbaijan Sharghi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 39 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 52 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 90 km | |
| Number of Phases | 4 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 2.5 km |
| Error in Depth | 4.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91614 | IIEES | GRMI | N | 338 | 0.13 | 2014-01-27 10:40:18 | 2014-01-27 11:17:00 | n |
| 91615 | IIEES | GRMI | E | 370.4 | 0.28 | 2014-01-27 10:40:19 | 2014-01-27 11:17:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2014-01-27 10:40:01 | -0.01 | y | 126 | 69 | |||
| IIEES | MAKU | Z | Pg | E | 2014-01-27 10:40:11 | -0.02 | y | 192 | 304 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-01-27 10:40:21 | 0.08 | y | 271 | 135 | |||
| IIEES | ZNJK | N | Sg | E | 2014-01-27 10:40:56 | -0.05 | y | 271 | 135 | |||
