Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2014-02-02 19:21:48.3 |
| Date & Time (Local) | 1392/11/13 22:51:48.3 |

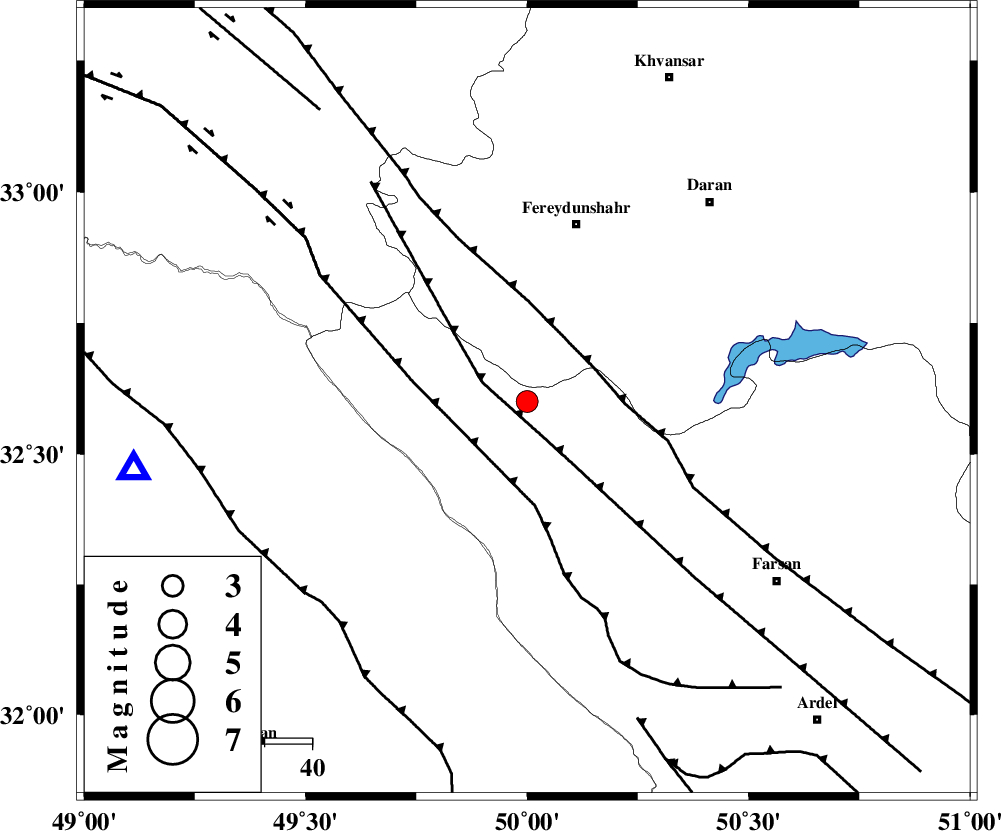

| Location | Lat:32.6 Lon: 50 |
| Region | Chaharmahal Bakhtiari Province, 19 km North-West of Chelgard |
Nearest Cities |
|
| 17 km East of Durak, Chaharmahal Bakhtiari Province | |
| 19 km North West of Chelgard, Chaharmahal Bakhtiari Province | |
| 26 km South West of Ghale? sorkh, Esfahan Province | |
| 27 km North West of Kukanak, Esfahan Province | |
| 31 km South East of Masir, Esfahan Province | |
| Depth | 6 km |
| Agency | |
Faults within 150 km: |
|
| ARDAL_F (Length: 170 km) , Distance to epicenter: 10 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 16 km | |
| ZARDKUH_F (Length: 139 km) , Distance to epicenter: 22 km | |
| Number of Phases | 4 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >6 km |
| Error in Longitude | 8.6 km |
| Error in Depth | 4.6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91706 | IIEES | SHGR | N | 584.8 | 0.4 | 2014-02-02 19:22:28 | 2014-02-02 07:49:00 | n |
| 91707 | IIEES | SHGR | E | 263.7 | 0.36 | 2014-02-02 19:22:28 | 2014-02-02 07:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-02-02 19:22:09 | -0.05 | y | 125 | 244 | |||
| IIEES | SHGR | N | Sg | E | 2014-02-02 19:22:25 | 0.03 | y | 125 | 244 | |||
| IIEES | KHMZ | Z | Pg | E | 2014-02-02 19:22:10 | -0.05 | y | 126 | 359 | |||
| IIEES | ASAO | Z | Pn | E | 2014-02-02 19:22:24 | 0.07 | y | 216 | 1 | |||
