Event Specification
Magnitude |
3.4 |
| Date & Time (UTC) | 2014-02-05 02:00:05.0 |
| Date & Time (Local) | 1392/11/16 05:30:05.0 |

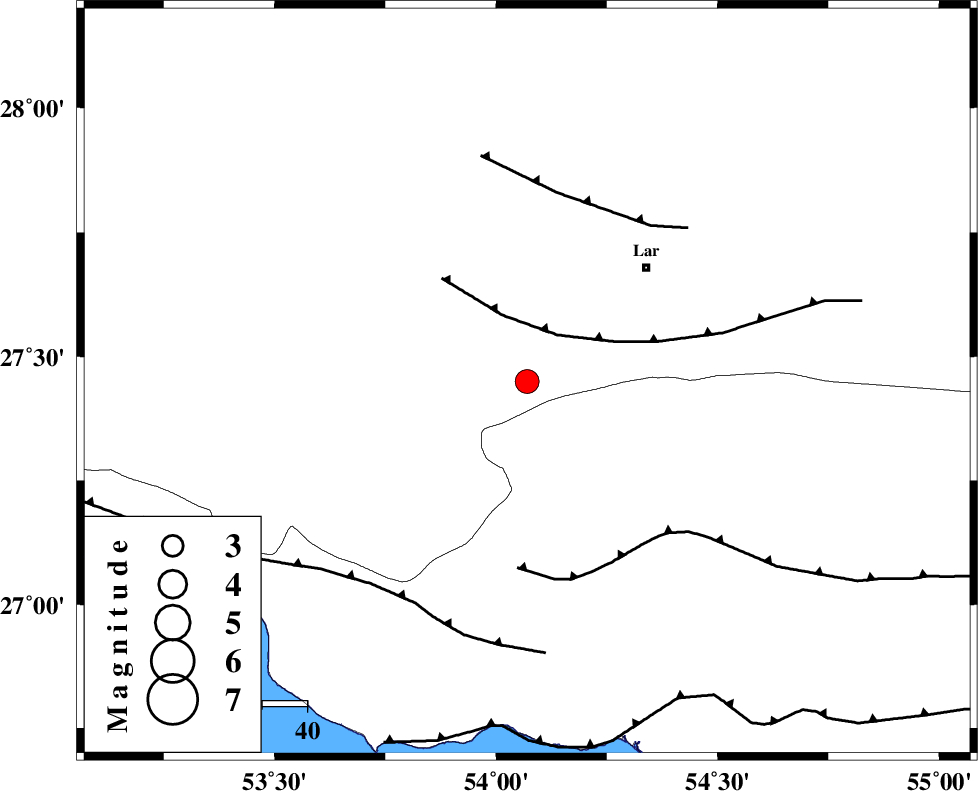

| Location | Lat:27.45 Lon: 54.07 |
| Region | Fars Province, 37 km South-West of Lar |
Nearest Cities |
|
| 6 km of Bagh, Fars Province | |
| 24 km South of Grash, Fars Province | |
| 35 km South of Avaz, Fars Province | |
| 37 km South West of Lar, Fars Province | |
| 40 km North West of Bastak, Hormozgan Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| LAR_F (Length: 99 km) , Distance to epicenter: 12 km | |
| MFF1 (Length: 180 km) , Distance to epicenter: 42 km | |
| BERIZ_F (Length: 49 km) , Distance to epicenter: 43 km | |
| Number of Phases | 3 |
| RMS | 0 |
| Number of Stations | 4 |
| Error in Latitude | >5.5 km |
| Error in Longitude | 2.1 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91730 | IIEES | KRBR | E | 31.2 | 0.64 | 2014-02-05 02:02:11 | 2014-02-05 03:28:00 | n |
| 91731 | IIEES | GHVR | N | 8.4 | 0.6 | 2014-02-05 02:03:13 | 2014-02-05 03:28:00 | n |
| 91732 | IIEES | GHVR | E | 7.3 | 0.72 | 2014-02-05 02:03:25 | 2014-02-05 03:28:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2014-02-05 02:00:39 | 0 | y | 208 | 91 | |||
| IIEES | AHRM | Z | Pg | E | 2014-02-05 02:00:55 | 0 | y | 314 | 301 | |||
| IIEES | KRBR | Z | Pn | E | 2014-02-05 02:01:00 | 0 | y | 385 | 43 | |||
