Event Specification
Magnitude |
2 |
| Date & Time (UTC) | 2014-02-11 16:04:39.0 |
| Date & Time (Local) | 1392/11/22 19:34:39.0 |

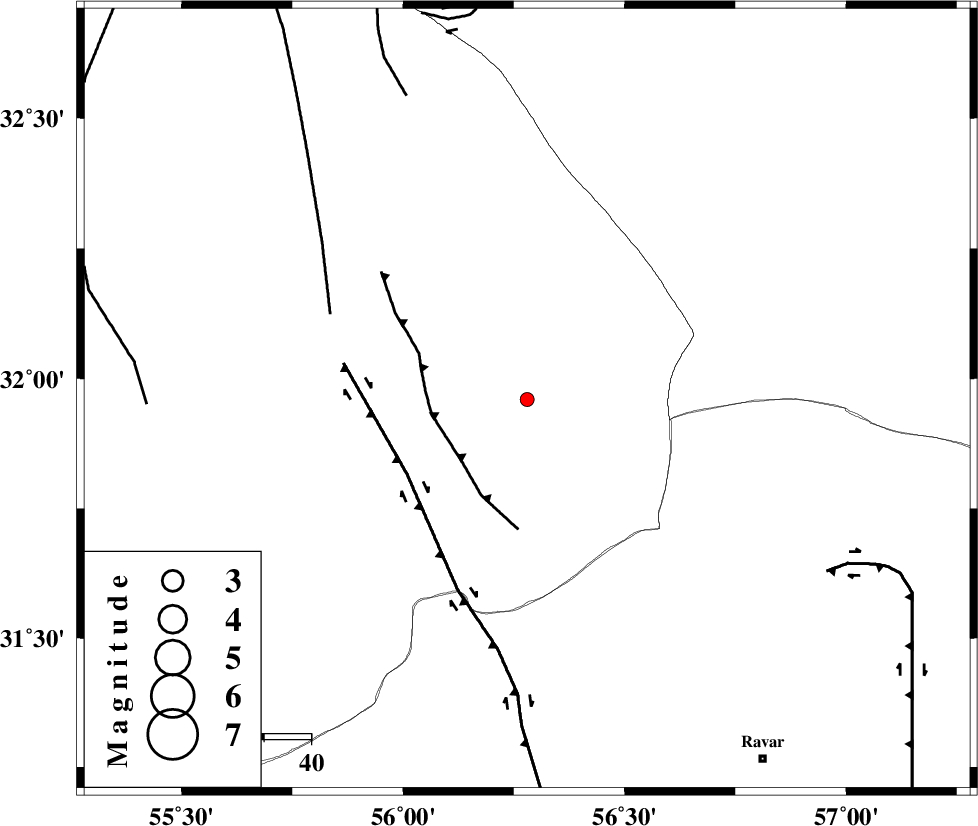

| Location | Lat:31.96 Lon: 56.28 |
| Region | Yazd Province, 93 km North-West of Ravar |
Nearest Cities |
|
| 26 km North East of Behabad, Yazd Province | |
| 31 km North East of Benestan, Yazd Province | |
| 33 km North of Asfih, Yazd Province | |
| 53 km North East of Kushk, Yazd Province | |
| 60 km North of Kuhbanan, Kerman Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 19 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 30 km | |
| SARBALA_F (Length: 92 km) , Distance to epicenter: 46 km | |
| Number of Phases | 3 |
| RMS | 0 |
| Number of Stations | 3 |
| Error in Latitude | >1.5 km |
| Error in Longitude | 2.2 km |
| Error in Depth | 0 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91781 | IIEES | KRBR | E | 13.3 | 0.44 | 2014-02-11 16:05:54 | 2014-02-11 04:44:00 | n |
| 91782 | IIEES | KRBR | N | 11.8 | 0.28 | 2014-02-11 16:05:54 | 2014-02-11 04:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2014-02-11 16:05:06 | 0 | y | 166 | 287 | |||
| IIEES | TABS | Z | Pg | E | 2014-02-11 16:05:12 | 0 | y | 203 | 23 | |||
| IIEES | KRBR | Z | Pn | E | 2014-02-11 16:05:14 | 0 | y | 224 | 168 | |||
