Event Specification
Magnitude |
4.2 |
| Date & Time (UTC) | 2014-02-18 21:51:34.7 |
| Date & Time (Local) | 1392/11/30 01:21:34.7 |

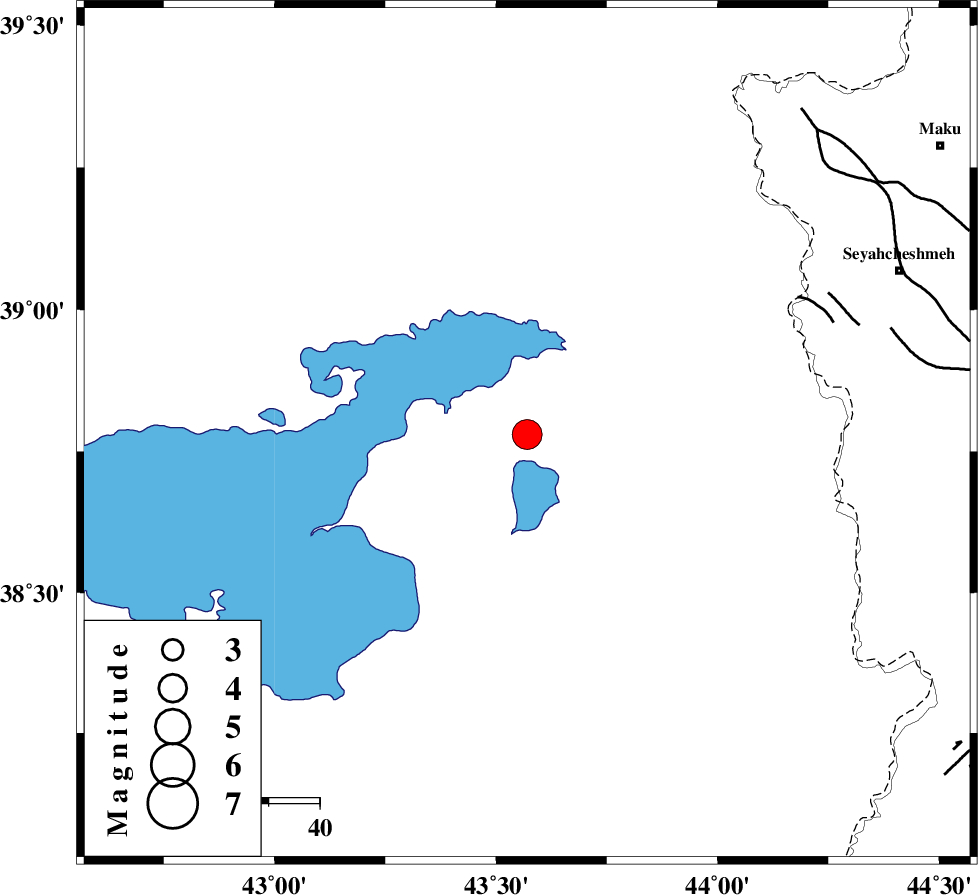

| Location | Lat:38.78 Lon: 43.57 |
| Region | Turkey, 80 km South-West of Seyah Cheshmah |
Nearest Cities |
|
| 66 km South West of Sheykh selu-e paein, Azarbaijan Gharbi Province | |
| 68 km South West of Sheykh selu-e bala, Azarbaijan Gharbi Province | |
| 79 km South West of Zavieh, Azarbaijan Gharbi Province | |
| 79 km South West of Seyah Cheshmah, Azarbaijan Gharbi Province | |
| 81 km North West of Baleh sur-e sofla, Azarbaijan Gharbi Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KHOY (Length: 100 km) , Distance to epicenter: 59 km | |
| SALMAS (Length: 20 km) , Distance to epicenter: 106 km | |
| N_TABRIZ_F3 (Length: 66 km) , Distance to epicenter: 125 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >9.7 km |
| Error in Longitude | 12.4 km |
| Error in Depth | 9.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 91823 | IIEES | MAKU | N | 5684.8 | 0.48 | 2014-02-18 21:52:12 | 2014-02-19 03:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | MAKU | Z | Pg | E | 2014-02-18 21:51:54 | -0.03 | y | 116 | 56 | |||
| IIEES | MAKU | N | Sg | E | 2014-02-18 21:52:08 | 0 | y | 116 | 56 | |||
| IIEES | GRMI | Z | Pn | E | 2014-02-18 21:52:29 | 0.2 | y | 376 | 88 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-02-18 21:52:45 | -0.28 | y | 508 | 116 | |||
| IIEES | SNGE | Z | Pn | E | 2014-02-18 21:52:48 | 0.01 | y | 529 | 139 | |||
| IIEES | GHVR | Z | Pn | E | 2014-02-18 21:53:26 | 0.14 | y | 835 | 122 | |||
