Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2014-03-24 12:44:43.9 |
| Date & Time (Local) | 1393/1/4 17:14:43.9 |

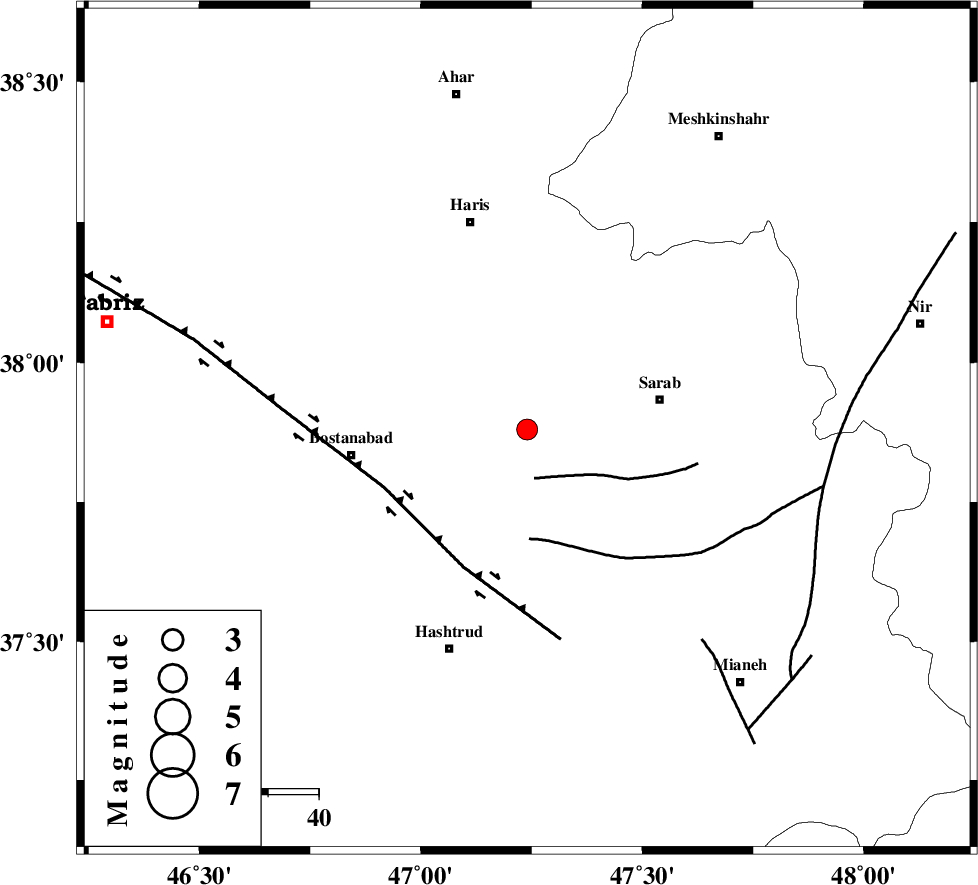

| Location | Lat:37.88 Lon: 47.24 |
| Region | Azarbaijan Sharghi Province, 27 km West of Sarab |
Nearest Cities |
|
| 10 km East of Sharabian, Azarbaijan Sharghi Province | |
| 13 km North West of Abarghan, Azarbaijan Sharghi Province | |
| 16 km North East of Sarcheshmeh, Azarbaijan Sharghi Province | |
| 20 km South of Mehraban, Azarbaijan Sharghi Province | |
| 24 km North East of Qareh baba, Azarbaijan Sharghi Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| BOZQUSH (Length: 70 km) , Distance to epicenter: 10 km | |
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 30 km | |
| SANGAVAR_F (Length: 61 km) , Distance to epicenter: 96 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >1.4 km |
| Error in Longitude | 4.1 km |
| Error in Depth | 5.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92060 | IIEES | GRMI | N | 240.8 | 0.32 | 2014-03-24 12:45:26 | 2014-03-24 01:07:00 | n |
| 92061 | IIEES | GRMI | E | 219.7 | 0.38 | 2014-03-24 12:45:26 | 2014-03-24 01:07:00 | n |
| 92062 | IIEES | ZNJK | E | 154.6 | 0.28 | 2014-03-24 12:45:39 | 2014-03-24 01:07:00 | n |
| 92063 | IIEES | ZNJK | N | 187.7 | 0.36 | 2014-03-24 12:45:39 | 2014-03-24 01:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2014-03-24 12:45:03 | -0.13 | y | 117 | 29 | |||
| IIEES | GRMI | E | Sg | E | 2014-03-24 12:45:18 | 0.08 | y | 117 | 29 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-03-24 12:45:14 | -0.05 | y | 186 | 136 | |||
| IIEES | ZNJK | N | Sg | E | 2014-03-24 12:45:37 | 0.05 | y | 186 | 136 | |||
| IIEES | MAKU | Z | Pn | E | 2014-03-24 12:45:25 | 0.06 | y | 276 | 307 | |||
