Event Specification
Magnitude |
4.1 |
| Date & Time (UTC) | 2014-05-03 20:10:27.7 |
| Date & Time (Local) | 1393/2/14 00:40:27.7 |

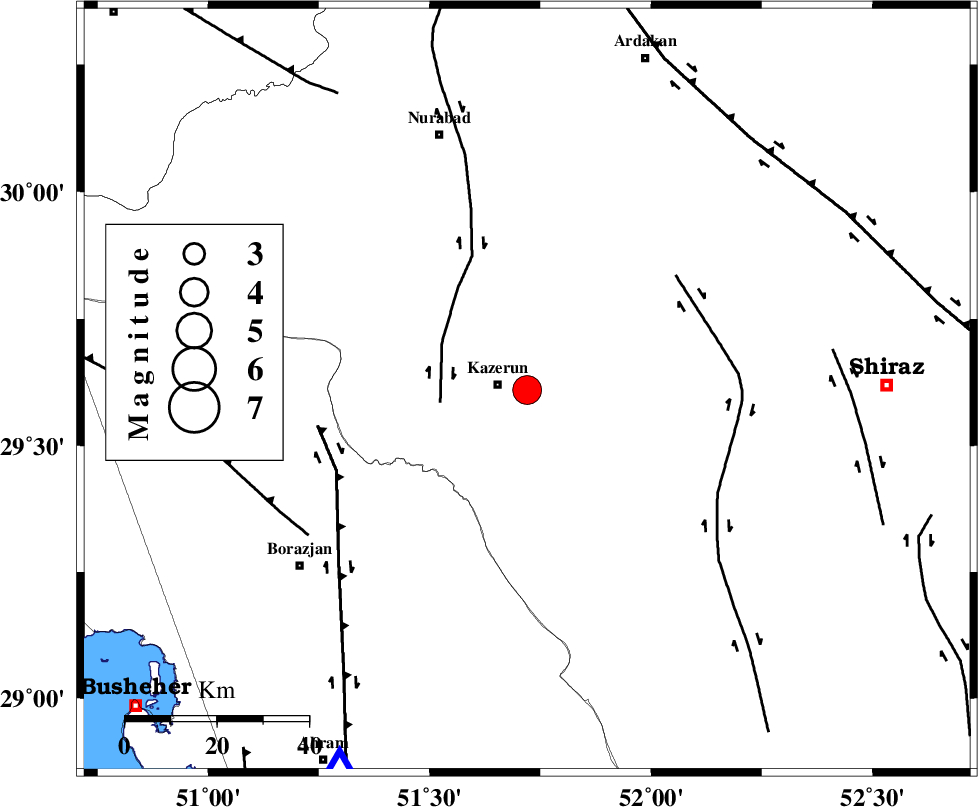

| Location | Lat:29.61 Lon: 51.72 |
| Region | Fars Province, 6 km Kazerun |
Nearest Cities |
|
| 7 km of Kazerun, Fars Province | |
| 8 km North of Mehranjan, Fars Province | |
| 15 km North West of Kalani, Fars Province | |
| 16 km East of Deris, Fars Province | |
| 21 km South of Nodan, Fars Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| KAZERUN_F (Length: 96 km) , Distance to epicenter: 19 km | |
| KAREBASS_F (Length: 98 km) , Distance to epicenter: 41 km | |
| BORAZJAN_F (Length: 168 km) , Distance to epicenter: 45 km | |
| Number of Phases | 8 |
| RMS | 0.2 |
| Number of Stations | 7 |
| Error in Latitude | >2.2 km |
| Error in Longitude | 3.5 km |
| Error in Depth | 5.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92330 | IIEES | AHRM | N | 5707 | 0.6 | 2014-05-03 20:11:00 | 2014-05-03 09:46:00 | n |
| 92331 | IIEES | SHGR | E | 995.9 | 0.56 | 2014-05-03 20:12:38 | 2014-05-03 09:46:00 | n |
| 92332 | IIEES | KHMZ | E | 121 | 0.52 | 2014-05-03 20:12:40 | 2014-05-03 09:46:00 | n |
| 92333 | IIEES | KRBR | E | 113.3 | 0.44 | 2014-05-03 20:12:42 | 2014-05-03 09:46:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | AHRM | Z | Pg | E | 2014-05-03 20:10:43 | -0.05 | y | 92.2 | 206 | |||
| IIEES | AHRM | N | Sg | E | 2014-05-03 20:10:54 | 0.08 | y | 92.2 | 206 | |||
| IIEES | YZKH | Z | Pn | E | 2014-05-03 20:11:26 | 0.09 | y | 413 | 41 | |||
| IIEES | YZKH | E | Sg | E | 2014-05-03 20:12:23 | -0.05 | y | 413 | 41 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-05-03 20:11:35 | -0.1 | y | 487 | 340 | |||
| IIEES | KRBR | Z | Pn | E | 2014-05-03 20:11:36 | 0.47 | y | 489 | 84 | |||
| IIEES | BNDS | Z | Pn | E | 2014-05-03 20:11:37 | -0.47 | y | 500 | 118 | |||
| IIEES | ASAO | Z | Pn | E | 2014-05-03 20:11:46 | 0 | y | 570 | 344 | |||
