Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2014-05-17 04:40:19.6 |
| Date & Time (Local) | 1393/2/27 09:10:19.6 |

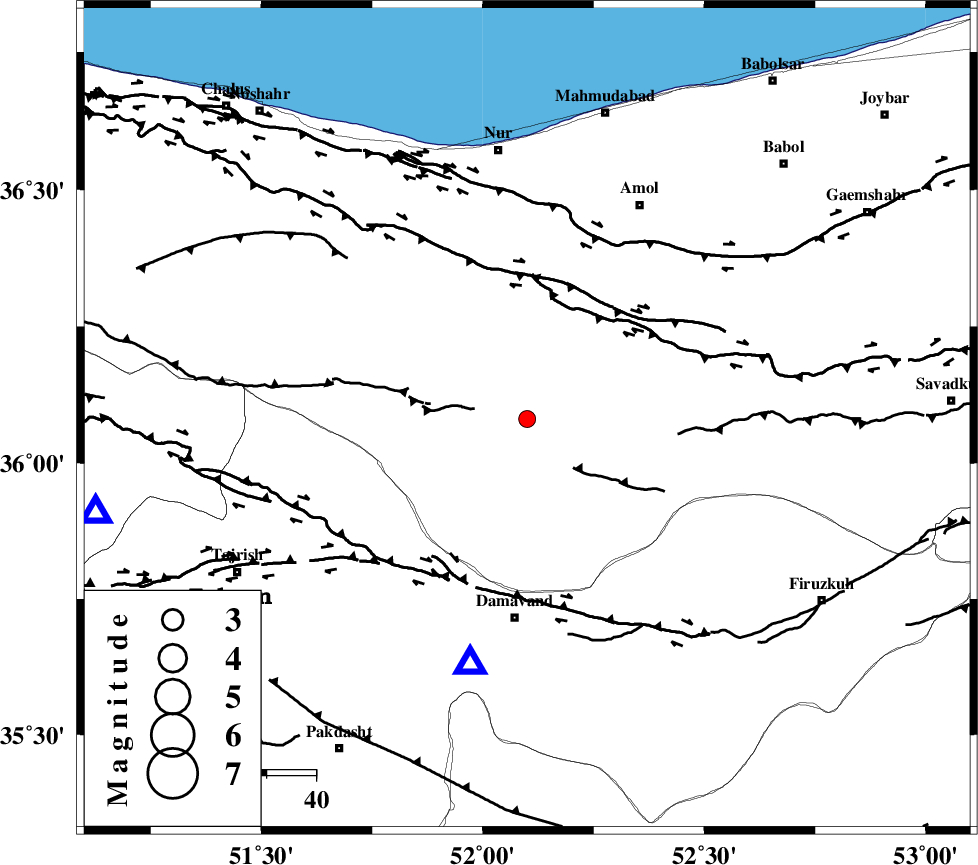

| Location | Lat:36.08 Lon: 52.1 |
| Region | Mazandaran Province, 41 km North of Damavand |
Nearest Cities |
|
| 13 km South of Pil, Mazandaran Province | |
| 21 km North West of Baijan, Mazandaran Province | |
| 21 km North of Gaznak, Mazandaran Province | |
| 22 km North of Rineh, Mazandaran Province | |
| 30 km South East of Baladeh, Mazandaran Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| KANDOVAN_F (Length: 90 km) , Distance to epicenter: 24 km | |
| N_ALBORZ_F (Length: 360 km) , Distance to epicenter: 28 km | |
| MOSHA_F (Length: 234 km) , Distance to epicenter: 36 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >5.7 km |
| Error in Longitude | 4.7 km |
| Error in Depth | 8.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92445 | IIEES | THKV | E | 101 | 0.49 | 2014-05-17 04:40:50 | 2014-05-17 06:14:00 | n |
| 92446 | IIEES | GHVR | E | 38.7 | 0.38 | 2014-05-17 04:41:24 | 2014-05-17 06:14:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | DAMV | Z | Pg | E | 2014-05-17 04:40:28 | -0.43 | y | 51.4 | 193 | |||
| IIEES | CHTH | Z | Pg | E | 2014-05-17 04:40:35 | -0.06 | y | 89.5 | 258 | |||
| IIEES | CHTH | N | Sg | E | 2014-05-17 04:40:46 | -0.12 | y | 89.5 | 258 | |||
| IIEES | GHVR | Z | Pg | E | 2014-05-17 04:40:51 | 0.28 | y | 194 | 204 | |||
| IIEES | ASAO | Z | Pn | E | 2014-05-17 04:40:59 | 0.26 | y | 254 | 228 | |||
| IIEES | ASAO | N | Sg | E | 2014-05-17 04:41:31 | 0.07 | y | 254 | 228 | |||
