Event Specification
Magnitude |
2.9 |
| Date & Time (UTC) | 2014-05-24 00:05:07.7 |
| Date & Time (Local) | 1393/3/3 04:35:07.7 |

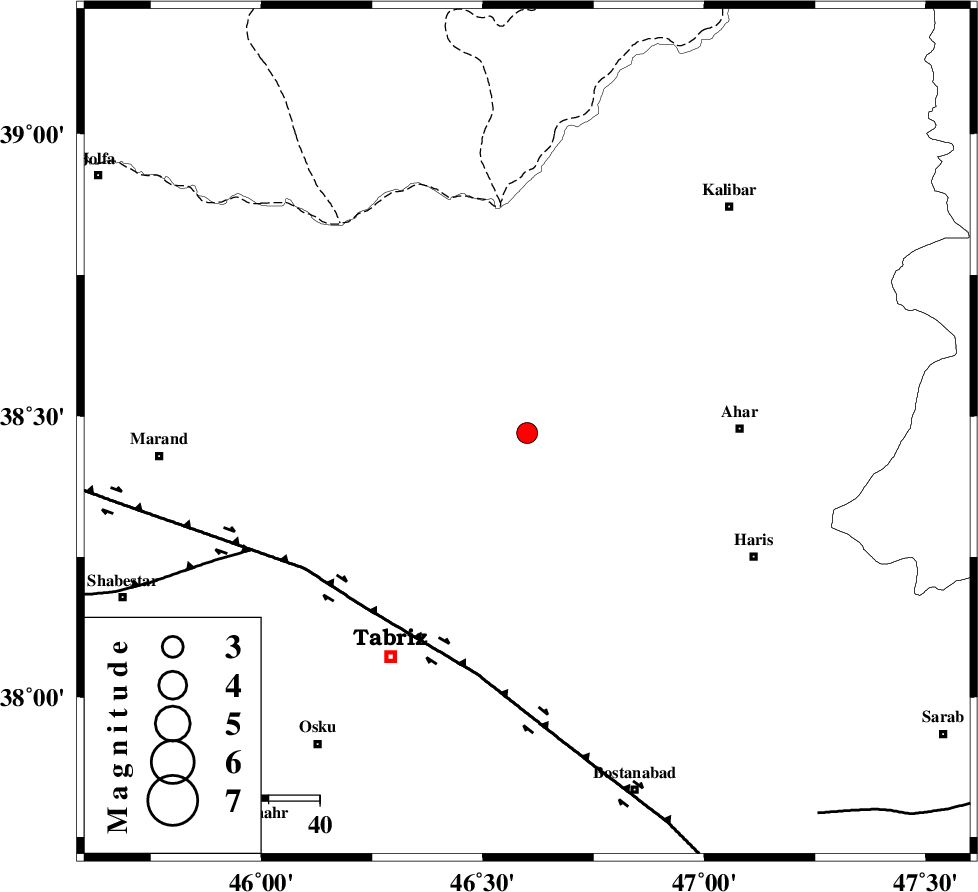

| Location | Lat:38.47 Lon: 46.6 |
| Region | Azarbaijan Sharghi Province, 42 km West of Ahar |
Nearest Cities |
|
| 3 km of Varzagan, Azarbaijan Sharghi Province | |
| 11 km of Aqababafaramarzi, Azarbaijan Sharghi Province | |
| 19 km North of Sarand, Azarbaijan Sharghi Province | |
| 22 km South West of Tokhmdel, Azarbaijan Sharghi Province | |
| 23 km South West of Bekrabad, Azarbaijan Sharghi Province | |
| Depth | 15 km |
| Agency | |
Faults within 150 km: |
|
| N_TABRIZ_F1 (Length: 222 km) , Distance to epicenter: 47 km | |
| N_TABRIZ_F2 (Length: 52 km) , Distance to epicenter: 59 km | |
| DASHT_E_MOGHAN__ (Length: 104 km) , Distance to epicenter: 93 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 4 |
| Error in Latitude | >3 km |
| Error in Longitude | 3 km |
| Error in Depth | 4.9 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92497 | IIEES | GRMI | E | 307.2 | 0.32 | 2014-05-24 00:05:46 | 2014-05-24 01:34:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | GRMI | Z | Pg | E | 2014-05-24 00:05:27 | -0.09 | y | 119 | 71 | |||
| IIEES | MAKU | Z | Pn | E | 2014-05-24 00:05:39 | -0.06 | y | 193 | 301 | |||
| IIEES | MAKU | N | Sg | E | 2014-05-24 00:06:02 | 0.07 | y | 193 | 301 | |||
| IIEES | ZNJK | Z | Pn | E | 2014-05-24 00:05:49 | 0.32 | y | 272 | 137 | |||
| IIEES | ZNJK | N | Sg | E | 2014-05-24 00:06:24 | 0.02 | y | 272 | 137 | |||
| IIEES | SNGE | Z | Pn | E | 2014-05-24 00:06:02 | -0.3 | y | 381 | 170 | |||
