Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2014-05-28 08:29:49.4 |
| Date & Time (Local) | 1393/3/7 12:59:49.4 |
| Location | Lat:33.54 Lon: 59.67 |
| Region | Khorasan(south) Province, 48 km South-East of Qaen |
Nearest Cities |
|
| 18 km North West of Zahan, Khorasan(south) Province | |
| 23 km West of Hajiabad, Khorasan(south) Province | |
| 29 km North East of Khoshk, Khorasan(south) Province | |
| 31 km South West of Abiz, Khorasan(south) Province | |
| 35 km North East of Gazar, Khorasan(south) Province | |
| Depth | 37 km |
| Agency | |

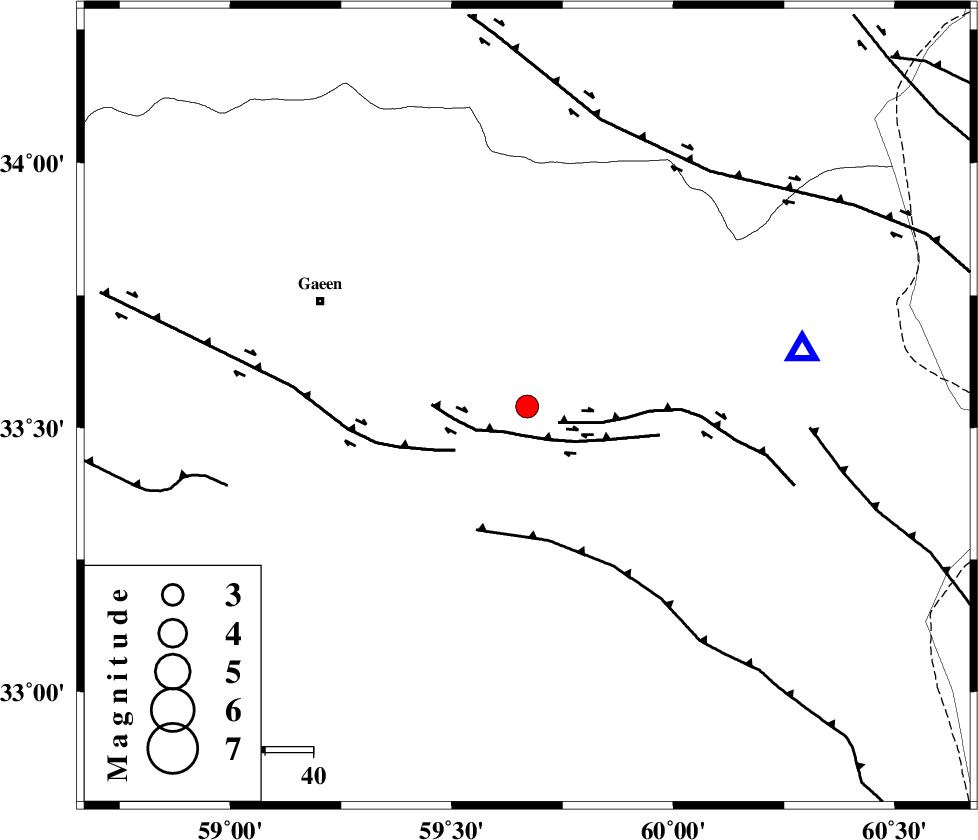

Faults within 150 km: |
|
| ABRIZ_F (Length: 114 km) , Distance to epicenter: 28 km | |
| NOZAD_F (Length: 27 km) , Distance to epicenter: 49 km | |
| DASHT_E_BAYAZ_F (Length: 177 km) , Distance to epicenter: 59 km | |
| Number of Phases | 9 |
| RMS | 0.4 |
| Number of Stations | 7 |
| Error in Latitude | >3.4 km |
| Error in Longitude | 3.9 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92527 | IIEES | KRBR | E | 29.7 | 0.84 | 2014-05-28 08:32:24 | 2014-05-28 09:55:00 | n |
| 92528 | IIEES | YZKH | N | 27.5 | 0.56 | 2014-05-28 08:32:19 | 2014-05-28 09:55:00 | n |
| 92529 | IIEES | YZKH | E | 35.4 | 0.56 | 2014-05-28 08:32:20 | 2014-05-28 09:55:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHRT | Z | Pg | E | 2014-05-28 08:30:00 | -0.04 | y | 59.1 | 79 | |||
| IIEES | BSRN | Z | Pg | E | 2014-05-28 08:30:18 | -0.32 | y | 182 | 196 | |||
| IIEES | BSRN | E | Sg | E | 2014-05-28 08:30:41 | 0.26 | y | 182 | 196 | |||
| IIEES | TABS | Z | Pn | E | 2014-05-28 08:30:24 | -0.06 | y | 237 | 274 | |||
| IIEES | TABS | N | Sg | E | 2014-05-28 08:30:55 | 0.09 | y | 237 | 274 | |||
| IIEES | SHRO | Z | Pn | E | 2014-05-28 08:30:48 | 0.16 | y | 432 | 310 | |||
| IIEES | ZHSF | Z | Pn | E | 2014-05-28 08:30:51 | 0.59 | y | 448 | 166 | |||
| IIEES | KRBR | Z | Pn | E | 2014-05-28 08:30:54 | -0.97 | y | 481 | 216 | |||
| IIEES | YZKH | Z | Pn | E | 2014-05-28 08:30:56 | 0.28 | y | 491 | 256 | |||
