Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2014-06-11 22:20:49.0 |
| Date & Time (Local) | 1393/3/22 02:50:49.0 |

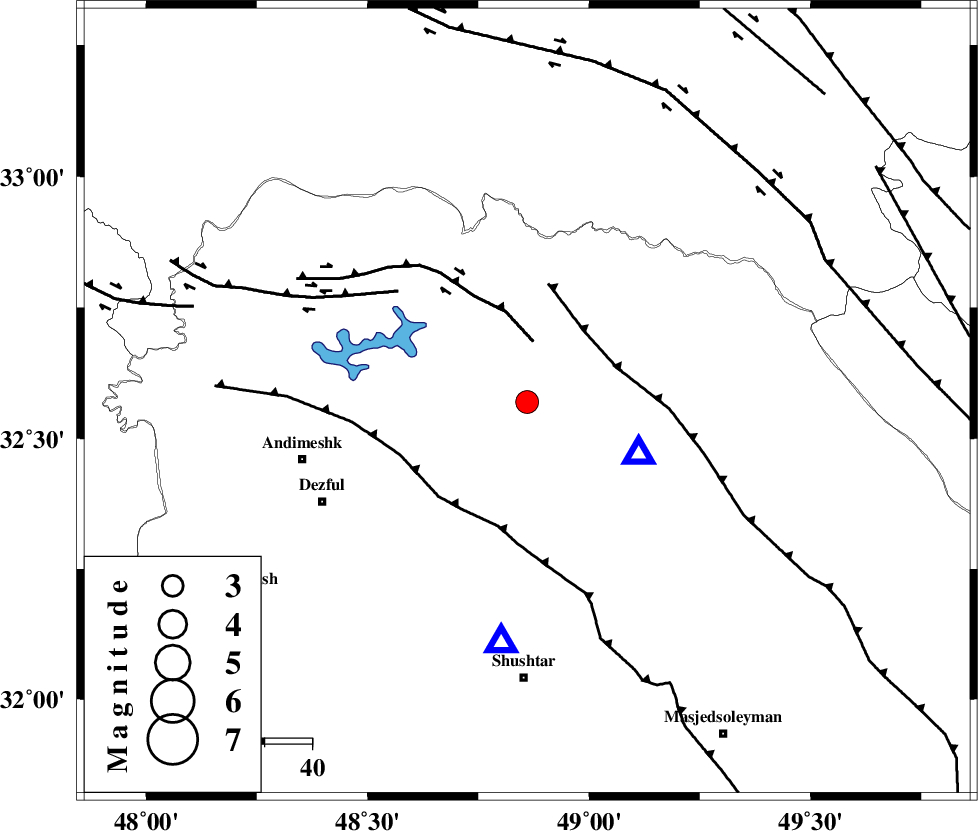

| Location | Lat:32.57 Lon: 48.86 |
| Region | Khoozestan Province, 31 km North-West of Lali |
Nearest Cities |
|
| 8 km North of Sardasht, Khoozestan Province | |
| 26 km South of Shuy, Khoozestan Province | |
| 27 km North East of Mahur berenji, Khoozestan Province | |
| 31 km North West of Lali, Khoozestan Province | |
| 36 km North of Gatvand, Khoozestan Province | |
| Depth | 16 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z2 (Length: 58 km) , Distance to epicenter: 13 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 19 km | |
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 27 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >4.1 km |
| Error in Longitude | 7.9 km |
| Error in Depth | 5.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92583 | IIEES | SHGR | N | 1617.2 | 0.24 | 2014-06-11 22:20:59 | 2014-06-12 12:52:00 | n |
| 92584 | IIEES | SHGR | E | 1865.6 | 0.36 | 2014-06-11 22:21:09 | 2014-06-12 12:52:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pg | E | 2014-06-11 22:21:16 | 0 | y | 166 | 38 | |||
| IIEES | KHMZ | E | Sg | E | 2014-06-11 22:21:36 | 0.06 | y | 166 | 38 | |||
| IIEES | ASAO | Z | Pn | E | 2014-06-11 22:21:27 | 0.08 | y | 245 | 26 | |||
| IIEES | ASAO | E | Sg | E | 2014-06-11 22:21:58 | -0.06 | y | 245 | 26 | |||
| IIEES | GHVR | Z | Pn | E | 2014-06-11 22:21:34 | -0.09 | y | 306 | 46 | |||
