Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2014-06-16 01:34:52.9 |
| Date & Time (Local) | 1393/3/26 06:04:52.9 |

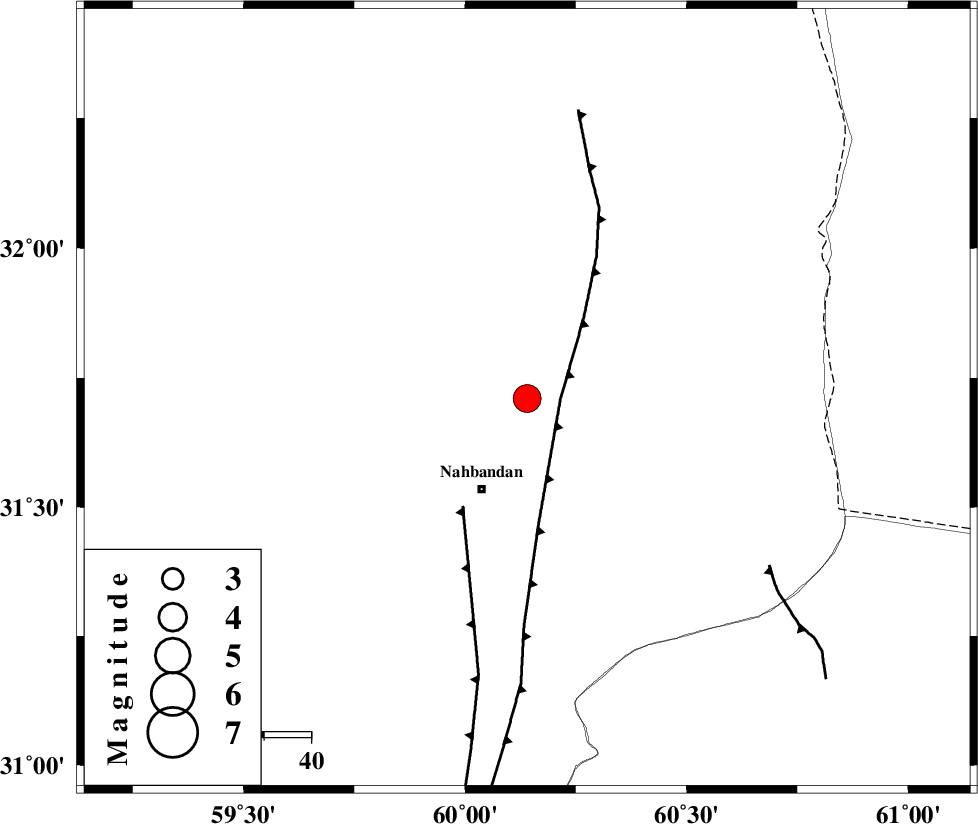

| Location | Lat:31.71 Lon: 60.14 |
| Region | Khorasan(south) Province, 22 km North-East of Nehbandan |
Nearest Cities |
|
| 22 km North East of Nehbandan, Khorasan(south) Province | |
| 36 km South East of Shusef, Khorasan(south) Province | |
| 81 km South West of Dorj, Khorasan(south) Province | |
| 101 km South East of Salmabad, Khorasan(south) Province | |
| 107 km South East of Sarbisheh, Khorasan(south) Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| E_NEH_F (Length: 148 km) , Distance to epicenter: 7 km | |
| W_NEH_F (Length: 158 km) , Distance to epicenter: 27 km | |
| SEFIDABAD_F (Length: 26 km) , Distance to epicenter: 63 km | |
| Number of Phases | 8 |
| RMS | 0.1 |
| Number of Stations | 6 |
| Error in Latitude | >1.1 km |
| Error in Longitude | 2 km |
| Error in Depth | 2.7 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92616 | IIEES | KRBR | N | 236.6 | 0.8 | 2014-06-16 01:36:56 | 2014-06-16 03:07:00 | n |
| 92617 | IIEES | YZKH | E | 83.1 | 0.52 | 2014-06-16 01:37:29 | 2014-06-16 03:07:00 | n |
| 92618 | IIEES | YZKH | N | 84.1 | 0.56 | 2014-06-16 01:37:32 | 2014-06-16 03:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2014-06-16 01:35:09 | -0.09 | y | 100 | 287 | |||
| IIEES | SHRT | Z | Pn | E | 2014-06-16 01:35:26 | -0.05 | y | 215 | 4 | |||
| IIEES | SHRT | E | Sg | E | 2014-06-16 01:35:54 | 0.06 | y | 215 | 4 | |||
| IIEES | ZHSF | Z | Pn | E | 2014-06-16 01:35:30 | -0.02 | y | 240 | 165 | |||
| IIEES | TABS | Z | P | E | 2014-06-16 01:35:44 | 0.03 | y | 356 | 308 | |||
| IIEES | KRBR | Z | Pn | E | 2014-06-16 01:35:47 | 0.1 | y | 376 | 240 | |||
| IIEES | KRBR | E | Sg | E | 2014-06-16 01:36:38 | 0.04 | y | 376 | 240 | |||
| IIEES | YZKH | Z | Pn | E | 2014-06-16 01:36:06 | -0.07 | y | 529 | 280 | |||
