Event Specification
Magnitude |
2.4 |
| Date & Time (UTC) | 2014-06-25 16:08:23.0 |
| Date & Time (Local) | 1393/4/4 20:38:23.0 |

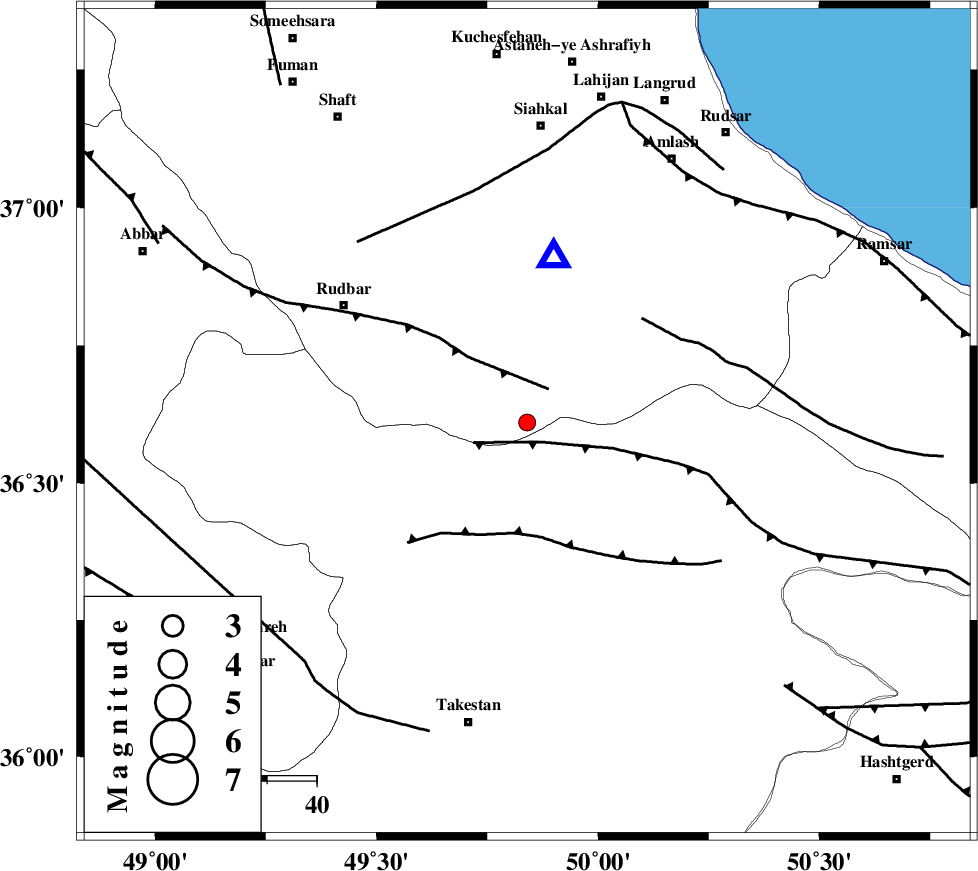

| Location | Lat:36.61 Lon: 49.84 |
| Region | Gilan Province, 41 km North-West of Qazvin |
Nearest Cities |
|
| 11 km of Jirhandeh, Gilan Province | |
| 18 km South West of Kelishom, Gilan Province | |
| 27 km North East of Kuhgir-e sofla, Ghazvin Province | |
| 28 km South of Barresar, Gilan Province | |
| 29 km East of Loshan, Gilan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| ALAMUTRUD_F (Length: 140 km) , Distance to epicenter: 5 km | |
| RUDBAR_F (Length: 93 km) , Distance to epicenter: 8 km | |
| N_QAZVIN_F (Length: 72 km) , Distance to epicenter: 22 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.8 km |
| Error in Longitude | 1.7 km |
| Error in Depth | 3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92680 | IIEES | GHVR | N | 14 | 0.52 | 2014-06-25 16:09:40 | 2014-06-25 06:21:00 | n |
| 92681 | IIEES | GHVR | E | 21.5 | 0.32 | 2014-06-25 16:09:46 | 2014-06-25 06:21:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | ZNJK | Z | Pg | E | 2014-06-25 16:08:40 | 0.09 | y | 103 | 274 | |||
| IIEES | ZNJK | E | Sg | E | 2014-06-25 16:08:53 | -0.05 | y | 103 | 274 | |||
| IIEES | CHTH | Z | Pg | E | 2014-06-25 16:08:46 | -0.12 | y | 140 | 124 | |||
| IIEES | ASAO | Z | Pn | E | 2014-06-25 16:08:59 | -0.01 | y | 229 | 176 | |||
| IIEES | ASAO | E | Sg | E | 2014-06-25 16:09:28 | -0.07 | y | 229 | 176 | |||
| IIEES | GHVR | Z | Pn | E | 2014-06-25 16:09:04 | 0.06 | y | 269 | 151 | |||
| IIEES | GHVR | N | Sg | E | 2014-06-25 16:09:38 | 0.1 | y | 269 | 151 | |||
