Event Specification
Magnitude |
3.3 |
| Date & Time (UTC) | 2014-07-03 07:31:14.5 |
| Date & Time (Local) | 1393/4/12 12:01:14.5 |

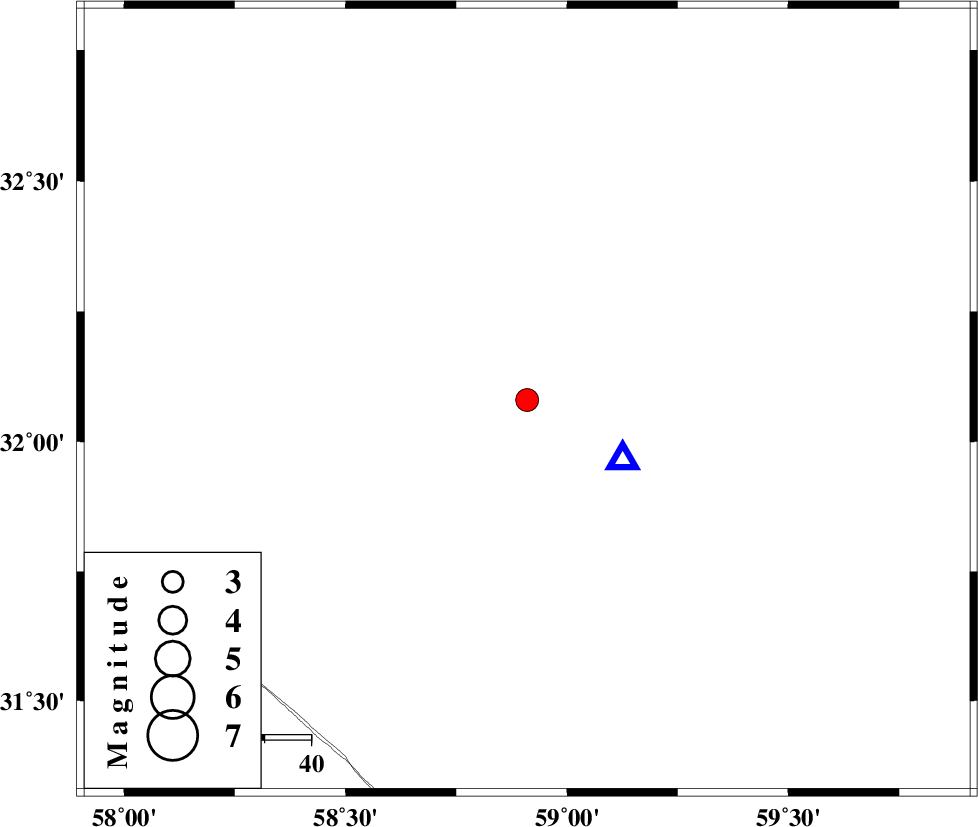

| Location | Lat:32.08 Lon: 58.91 |
| Region | Khorasan(south) Province, 96 km South-West of Birjand |
Nearest Cities |
|
| 45 km South of Hamand, Khorasan(south) Province | |
| 59 km South of Mazhan, Khorasan(south) Province | |
| 62 km South West of Mokhtaran, Khorasan(south) Province | |
| 71 km South West of Gaz, Khorasan(south) Province | |
| 73 km South of Bisheh bala, Khorasan(south) Province | |
| Depth | 17 km |
| Agency | |
Faults within 150 km: |
|
| MOHAMMADABAD_F (Length: 71 km) , Distance to epicenter: 102 km | |
| W_NEH_F (Length: 158 km) , Distance to epicenter: 121 km | |
| E_NEH_F (Length: 148 km) , Distance to epicenter: 128 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 5 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 4.5 km |
| Error in Depth | 4.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92727 | IIEES | BSRN | E | 5295.6 | 0.27 | 2014-07-03 07:31:24 | 2014-07-03 09:29:00 | n |
| 92728 | IIEES | BSRN | N | 3812.8 | 0.19 | 2014-07-03 07:31:24 | 2014-07-03 09:29:00 | n |
| 92729 | IIEES | YZKH | E | 62 | 0.43 | 2014-07-03 07:33:19 | 2014-07-03 09:29:00 | n |
| 92730 | IIEES | YZKH | N | 67.7 | 0.38 | 2014-07-03 07:33:21 | 2014-07-03 09:29:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BSRN | Z | Pg | E | 2014-07-03 07:31:19 | -0.12 | y | 23.5 | 121 | |||
| IIEES | BSRN | E | Sg | E | 2014-07-03 07:31:23 | 0.01 | y | 23.5 | 121 | |||
| IIEES | SHRT | Z | Pn | E | 2014-07-03 07:31:48 | -0.45 | y | 217 | 36 | |||
| IIEES | SHRT | N | Sg | E | 2014-07-03 07:32:16 | 0.18 | y | 217 | 36 | |||
| IIEES | TABS | Z | Pn | E | 2014-07-03 07:31:52 | 0.31 | y | 242 | 317 | |||
| IIEES | ZHSF | Z | Pn | E | 2014-07-03 07:32:02 | 0.29 | y | 326 | 146 | |||
| IIEES | YZKH | Z | Pn | E | 2014-07-03 07:32:12 | -0.24 | y | 409 | 276 | |||
