Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2014-07-06 03:22:13.5 |
| Date & Time (Local) | 1393/4/15 07:52:13.5 |

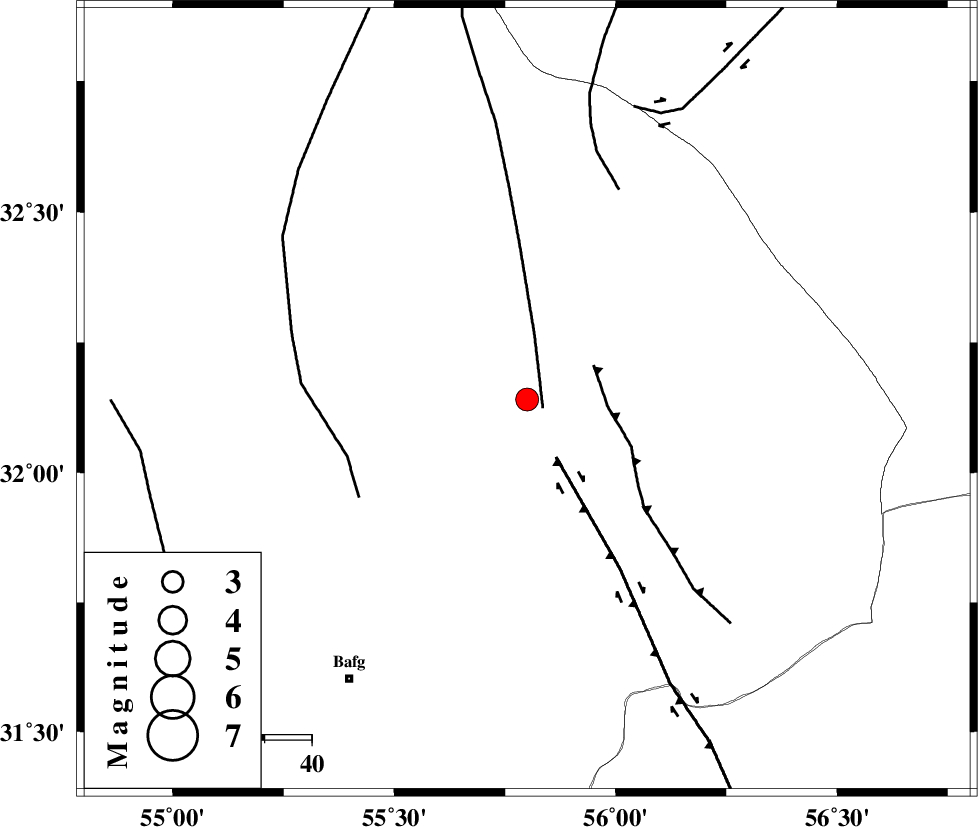

| Location | Lat:32.14 Lon: 55.8 |
| Region | Yazd Province, 71 km North-East of Bafq |
Nearest Cities |
|
| 37 km North West of Behabad, Yazd Province | |
| 45 km North of Kushk, Yazd Province | |
| 52 km North West of Benestan, Yazd Province | |
| 66 km North West of Asfih, Yazd Province | |
| 67 km North East of Mobarake, Yazd Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| SARBALA_F (Length: 92 km) , Distance to epicenter: 4 km | |
| KUHBANAN_F (Length: 189 km) , Distance to epicenter: 14 km | |
| JAFARABAD_F (Length: 60 km) , Distance to epicenter: 16 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >2.6 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92744 | IIEES | KRBR | N | 145.9 | 0.58 | 2014-07-06 03:23:27 | 2014-07-06 04:49:00 | n |
| 92745 | IIEES | KRBR | E | 130.6 | 0.29 | 2014-07-06 03:23:29 | 2014-07-06 04:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | YZKH | Z | Pg | E | 2014-07-06 03:22:33 | 0.03 | y | 117 | 284 | |||
| IIEES | TABS | Z | Pn | E | 2014-07-06 03:22:47 | 0.03 | y | 208 | 36 | |||
| IIEES | TABS | N | Sg | E | 2014-07-06 03:23:12 | -0.07 | y | 208 | 36 | |||
| IIEES | KRBR | Z | Pn | E | 2014-07-06 03:22:53 | -0.1 | y | 256 | 159 | |||
| IIEES | SHRT | Z | Pn | E | 2014-07-06 03:23:17 | 0.16 | y | 452 | 67 | |||
