Event Specification
Magnitude |
5 |
| Date & Time (UTC) | 2014-07-22 15:22:42.8 |
| Date & Time (Local) | 1393/4/31 19:52:42.8 |

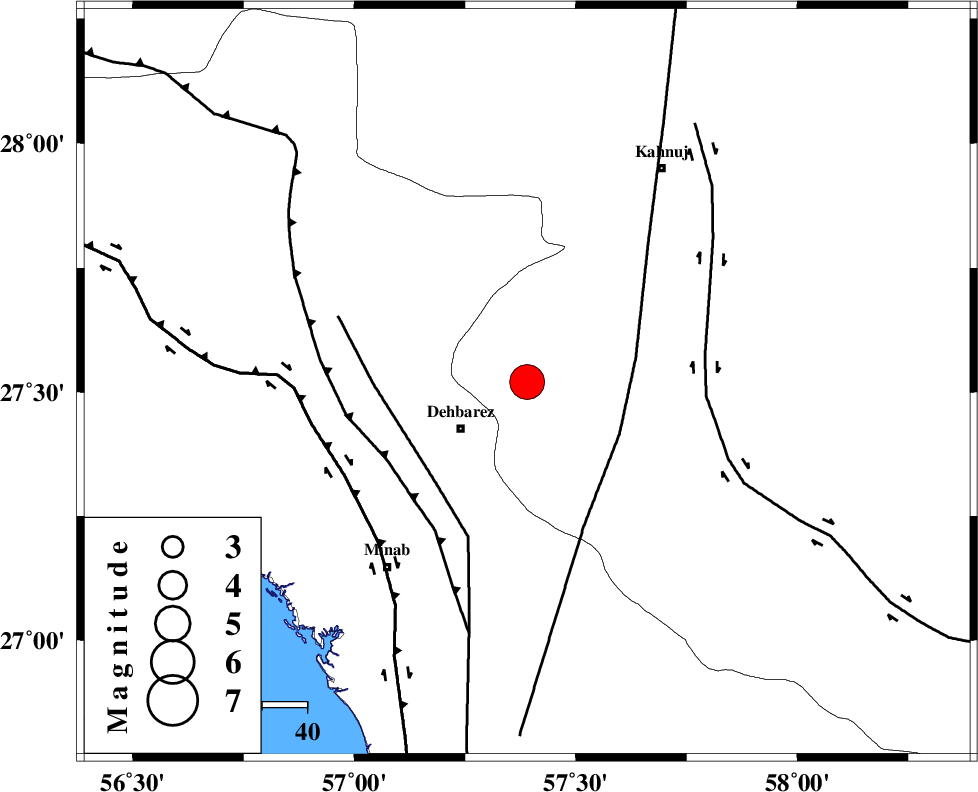

| Location | Lat:27.52 Lon: 57.39 |
| Region | Kerman Province, 16 km North-West of Manujan |
Nearest Cities |
|
| 6 km of Nodezh, Kerman Province | |
| 11 km of Bejogan, Kerman Province | |
| 16 km North West of Manujan, Kerman Province | |
| 18 km North East of Dehbarez, Hormozgan Province | |
| 21 km North East of Balashahr, Hormozgan Province | |
| Depth | 25 km |
| Agency | |
Faults within 150 km: |
|
| SABZEVARAN_F (Length: 190 km) , Distance to epicenter: 24 km | |
| ZENDAN_MINAB_F_Z1 (Length: 183 km) , Distance to epicenter: 30 km | |
| MAIN_ZAGROS_R_F (Length: 1106 km) , Distance to epicenter: 36 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >3 km |
| Error in Longitude | 2.6 km |
| Error in Depth | 6 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92834 | IIEES | BNDS | N | 40462.7 | 0.48 | 2014-07-22 15:23:21 | 2014-07-22 04:49:00 | n |
| 92835 | IIEES | BNDS | E | 51319.6 | 0.4 | 2014-07-22 15:23:22 | 2014-07-22 04:49:00 | n |
| 92836 | IIEES | GHIR | E | 1018.1 | 0.4 | 2014-07-22 15:25:04 | 2014-07-22 04:49:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2014-07-22 15:23:02 | -0.01 | y | 121 | 264 | |||
| IIEES | CHBR | Z | P | E | 2014-07-22 15:23:35 | -0.04 | y | 375 | 124 | |||
| IIEES | ZHSF | Z | P | E | 2014-07-22 15:23:40 | 0.13 | y | 405 | 54 | |||
| IIEES | GHIR | Z | P | E | 2014-07-22 15:23:44 | 0.03 | y | 441 | 282 | |||
| IIEES | BSRN | Z | P | E | 2014-07-22 15:23:54 | -0.14 | y | 521 | 18 | |||
