Event Specification
Magnitude |
3.8 |
| Date & Time (UTC) | 2014-07-24 06:04:29.3 |
| Date & Time (Local) | 1393/5/2 10:34:29.3 |

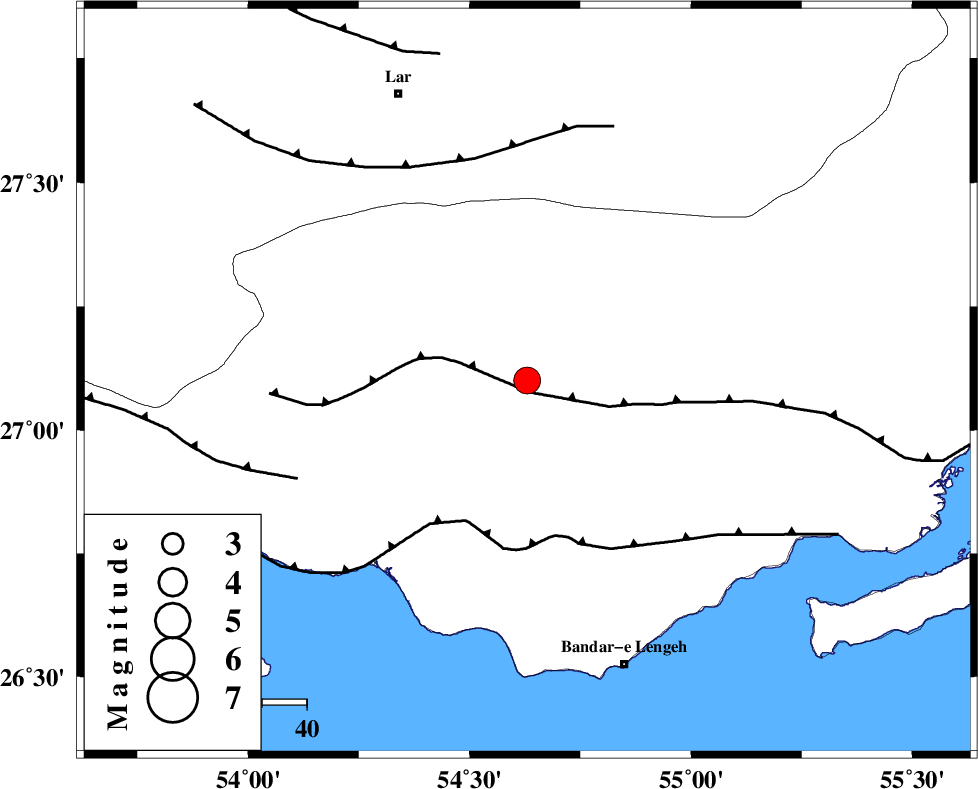

| Location | Lat:27.1 Lon: 54.63 |
| Region | Hormozgan Province, 28 km East of Bastak |
Nearest Cities |
|
| 29 km East of Bastak, Hormozgan Province | |
| 36 km North East of Jenah, Hormozgan Province | |
| 67 km North West of Bandar-e lengeh, Hormozgan Province | |
| 71 km South East of Lar, Fars Province | |
| 71 km South East of Latifi, Fars Province | |
| Depth | 28 km |
| Agency | |
Faults within 150 km: |
|
| MFF1 (Length: 180 km) , Distance to epicenter: 3 km | |
| ZFF1 (Length: 165 km) , Distance to epicenter: 34 km | |
| LAR_F (Length: 99 km) , Distance to epicenter: 51 km | |
| Number of Phases | 6 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >7.9 km |
| Error in Longitude | 3.3 km |
| Error in Depth | 4.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92848 | IIEES | BNDS | N | 1541.8 | 0.41 | 2014-07-24 06:05:20 | 2014-07-24 01:37:00 | n |
| 92849 | IIEES | BNDS | E | 1005.8 | 0.48 | 2014-07-24 06:05:29 | 2014-07-24 01:37:00 | n |
| 92850 | IIEES | GHIR | E | 831.2 | 0.64 | 2014-07-24 06:05:45 | 2014-07-24 01:37:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | BNDS | Z | Pg | E | 2014-07-24 06:04:55 | 0.06 | y | 156 | 78 | |||
| IIEES | GHIR | Z | Pn | E | 2014-07-24 06:05:01 | 0.03 | y | 208 | 309 | |||
| IIEES | GHIR | E | Sg | E | 2014-07-24 06:05:27 | -0.06 | y | 208 | 309 | |||
| IIEES | YZKH | Z | Pn | E | 2014-07-24 06:05:49 | 0.31 | y | 586 | 360 | |||
| IIEES | ZHSF | Z | Pn | E | 2014-07-24 06:05:57 | -0.26 | y | 664 | 64 | |||
| IIEES | TABS | Z | Pn | E | 2014-07-24 06:06:10 | -0.21 | y | 764 | 18 | |||
