Event Specification
Magnitude |
4.3 |
| Date & Time (UTC) | 2014-07-27 18:17:48.6 |
| Date & Time (Local) | 1393/5/5 22:47:48.6 |

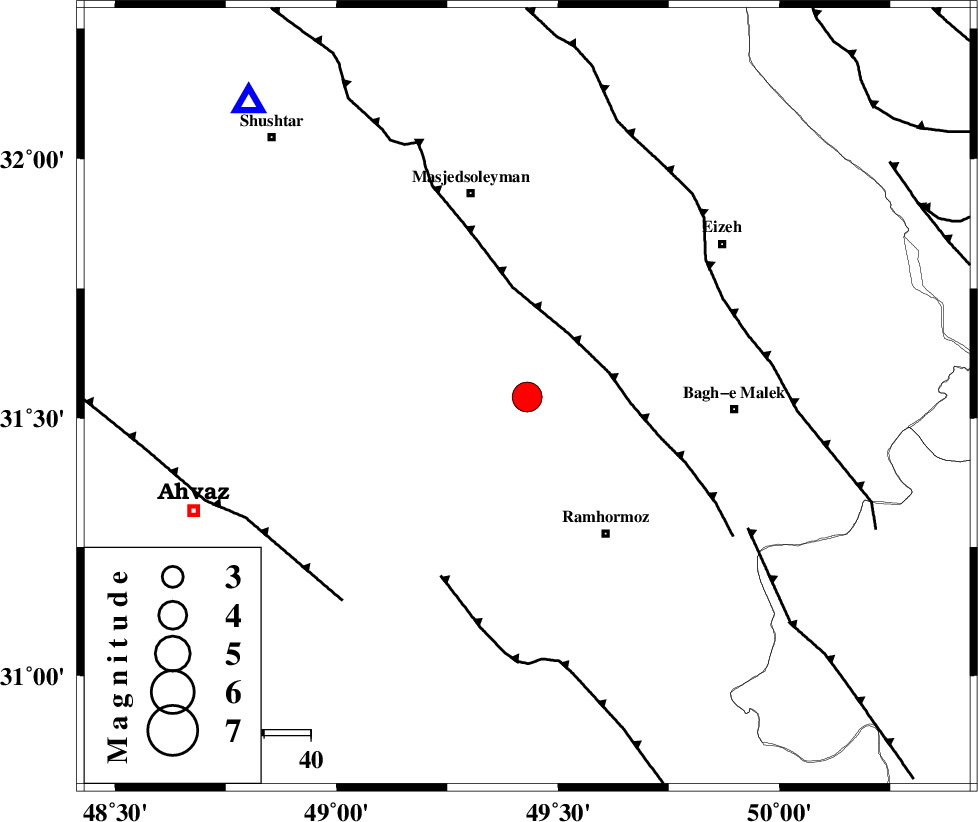

| Location | Lat:31.54 Lon: 49.43 |
| Region | Khoozestan Province, 34 km North-West of Ramhormoz |
Nearest Cities |
|
| 5 km of Gazin, Khoozestan Province | |
| 11 km West of Jaru, Khoozestan Province | |
| 14 km North West of Haftgol, Khoozestan Province | |
| 29 km North West of Midavood-e sofla, Khoozestan Province | |
| 30 km North of Marbacheh, Khoozestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| DEZFUL_EMBAYMENT (Length: 228 km) , Distance to epicenter: 16 km | |
| AGHAJARI_F (Length: 88 km) , Distance to epicenter: 43 km | |
| MFF2 (Length: 205 km) , Distance to epicenter: 47 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >2.7 km |
| Error in Longitude | 3.2 km |
| Error in Depth | 5.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 92866 | IIEES | KRBR | E | 68.7 | 0.52 | 2014-07-27 18:20:34 | 2014-07-27 07:44:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-07-27 18:18:03 | -0.01 | y | 86.8 | 317 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-07-27 18:18:27 | 0.03 | y | 249 | 11 | |||
| IIEES | ASAO | Z | Pn | E | 2014-07-27 18:18:38 | 0 | y | 338 | 9 | |||
| IIEES | ASAO | N | Sg | E | 2014-07-27 18:19:23 | -0.01 | y | 338 | 9 | |||
| IIEES | YZKH | Z | Pn | E | 2014-07-27 18:18:58 | -0.02 | y | 497 | 78 | |||
