Event Specification
Magnitude |
3.2 |
| Date & Time (UTC) | 2014-08-18 08:49:18.0 |
| Date & Time (Local) | 1393/5/27 13:19:18.0 |

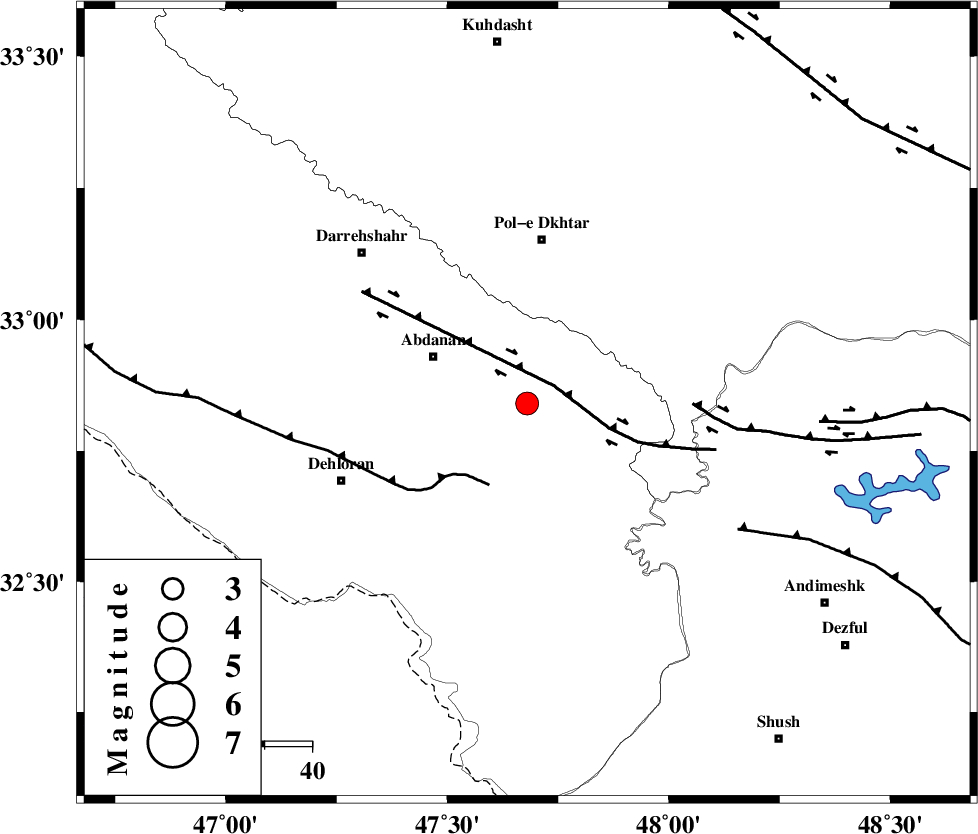

| Location | Lat:32.84 Lon: 47.68 |
| Region | Ilam Province, 22 km East of Abdanan |
Nearest Cities |
|
| 12 km East of Sarabbagh, Ilam Province | |
| 22 km East of Abdanan, Ilam Province | |
| 29 km South of Sarab hammam, Lorestan Province | |
| 35 km South of Pol-e dokhtar, Lorestan Province | |
| 43 km North East of Dehloran, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 7 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 19 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 35 km | |
| Number of Phases | 7 |
| RMS | 0.3 |
| Number of Stations | 4 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 6.1 km |
| Error in Depth | 7.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93013 | IIEES | SHGR | E | 512.2 | 0.33 | 2014-08-18 08:50:01 | 2014-08-18 12:03:00 | n |
| 93014 | IIEES | SHGR | N | 377 | 0.5 | 2014-08-18 08:50:05 | 2014-08-18 12:03:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-18 08:49:40 | 0.09 | y | 133 | 127 | |||
| IIEES | SHGR | N | Sg | E | 2014-08-18 08:49:56 | -0.03 | y | 133 | 127 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-18 08:49:55 | 0.25 | y | 235 | 64 | |||
| IIEES | SNGE | Z | Pn | E | 2014-08-18 08:49:56 | -0.67 | y | 252 | 353 | |||
| IIEES | SNGE | N | Sg | E | 2014-08-18 08:50:29 | 0.37 | y | 252 | 353 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-18 08:50:01 | 0.27 | y | 289 | 48 | |||
| IIEES | ASAO | N | Sg | E | 2014-08-18 08:50:39 | -0.28 | y | 289 | 48 | |||
