Event Specification
Magnitude |
3.9 |
| Date & Time (UTC) | 2014-08-18 22:23:48.7 |
| Date & Time (Local) | 1393/5/28 02:53:48.7 |

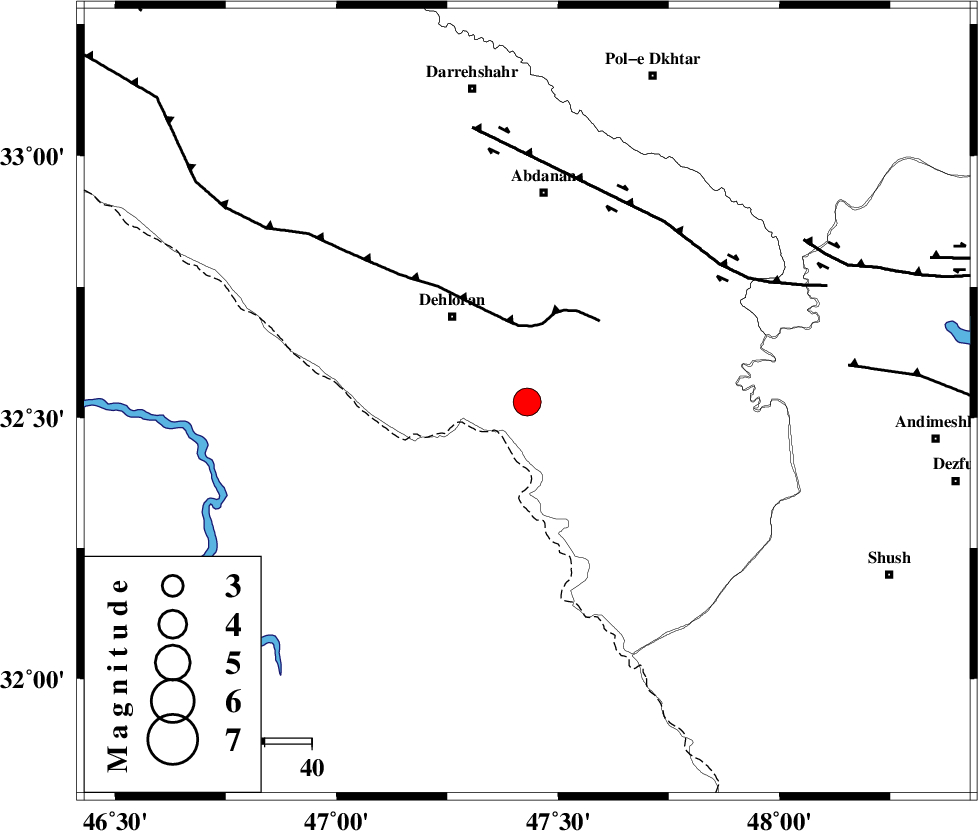

| Location | Lat:32.53 Lon: 47.43 |
| Region | Ilam Province, 24 km South-East of Dehloran |
Nearest Cities |
|
| 7 km of Musian, Ilam Province | |
| 24 km South East of Dehloran, Ilam Province | |
| 43 km South West of Sarabbagh, Ilam Province | |
| 45 km South of Abdanan, Ilam Province | |
| 54 km South East of Bishehzar, Ilam Province | |
| Depth | 46 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 16 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 48 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 68 km | |
| Number of Phases | 7 |
| RMS | 0.2 |
| Number of Stations | 5 |
| Error in Latitude | >3.1 km |
| Error in Longitude | 6.7 km |
| Error in Depth | 6.2 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93073 | IIEES | SHGR | N | 2088.6 | 0.52 | 2014-08-18 22:25:01 | 2014-08-19 12:25:00 | n |
| 93074 | IIEES | SHGR | E | 1994.5 | 0.56 | 2014-08-18 22:25:14 | 2014-08-19 12:25:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-18 22:24:11 | -0.04 | y | 137 | 110 | |||
| IIEES | SHGR | N | Sg | E | 2014-08-18 22:24:29 | 0.01 | y | 137 | 110 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-18 22:24:27 | 0.33 | y | 272 | 60 | |||
| IIEES | SNGE | Z | Pn | E | 2014-08-18 22:24:28 | 0.06 | y | 284 | 358 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-18 22:24:33 | -0.43 | y | 329 | 46 | |||
| IIEES | ASAO | N | Sg | E | 2014-08-18 22:25:19 | 0.01 | y | 329 | 46 | |||
| IIEES | CHTH | Z | Pn | E | 2014-08-18 22:24:56 | 0.06 | y | 506 | 41 | |||
