Event Specification
Magnitude |
4 |
| Date & Time (UTC) | 2014-08-19 10:36:17.7 |
| Date & Time (Local) | 1393/5/28 15:06:17.7 |

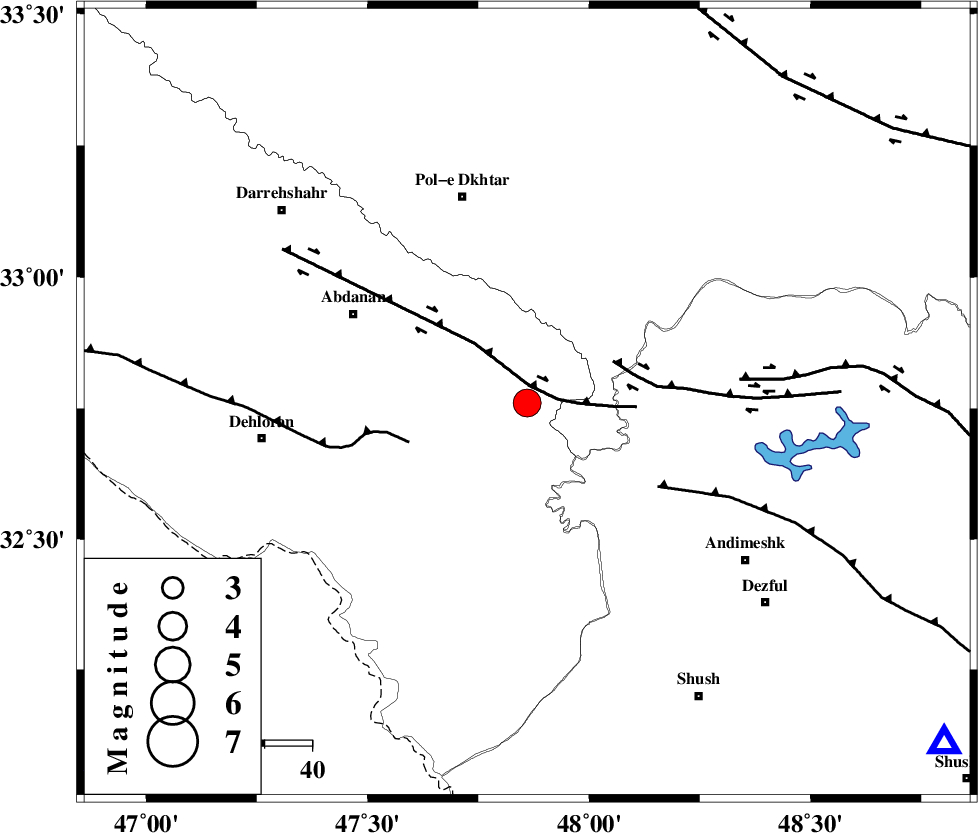

| Location | Lat:32.76 Lon: 47.86 |
| Region | Ilam Province, 46 km South-East of Pol-e dokhtar |
Nearest Cities |
|
| 31 km South East of Sarabbagh, Ilam Province | |
| 35 km North West of Bidruyeh, Khoozestan Province | |
| 37 km North West of Hoseinieh, Khoozestan Province | |
| 41 km South East of Sarab hammam, Lorestan Province | |
| 41 km South East of Abdanan, Ilam Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 4 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 20 km | |
| MFF6 (Length: 144 km) , Distance to epicenter: 26 km | |
| Number of Phases | 5 |
| RMS | 0.4 |
| Number of Stations | 3 |
| Error in Latitude | >8.7 km |
| Error in Longitude | 13.3 km |
| Error in Depth | 16 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93135 | IIEES | ASAO | Z | 747.6 | 0.23 | 2014-08-19 10:37:08 | 2014-08-19 12:57:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2014-08-19 10:36:53 | 0.1 | y | 225 | 60 | |||
| IIEES | SNGE | Z | Pn | E | 2014-08-19 10:36:58 | 0.47 | y | 263 | 350 | |||
| IIEES | SNGE | N | Sg | E | 2014-08-19 10:37:32 | -0.14 | y | 263 | 350 | |||
| IIEES | ASAO | Z | Pn | E | 2014-08-19 10:37:00 | -0.75 | y | 283 | 45 | |||
| IIEES | ASAO | N | S | E | 2014-08-19 10:37:32 | 0.31 | y | 283 | 45 | |||
