Event Specification
Magnitude |
3 |
| Date & Time (UTC) | 2014-08-20 04:49:18.6 |
| Date & Time (Local) | 1393/5/29 09:19:18.6 |

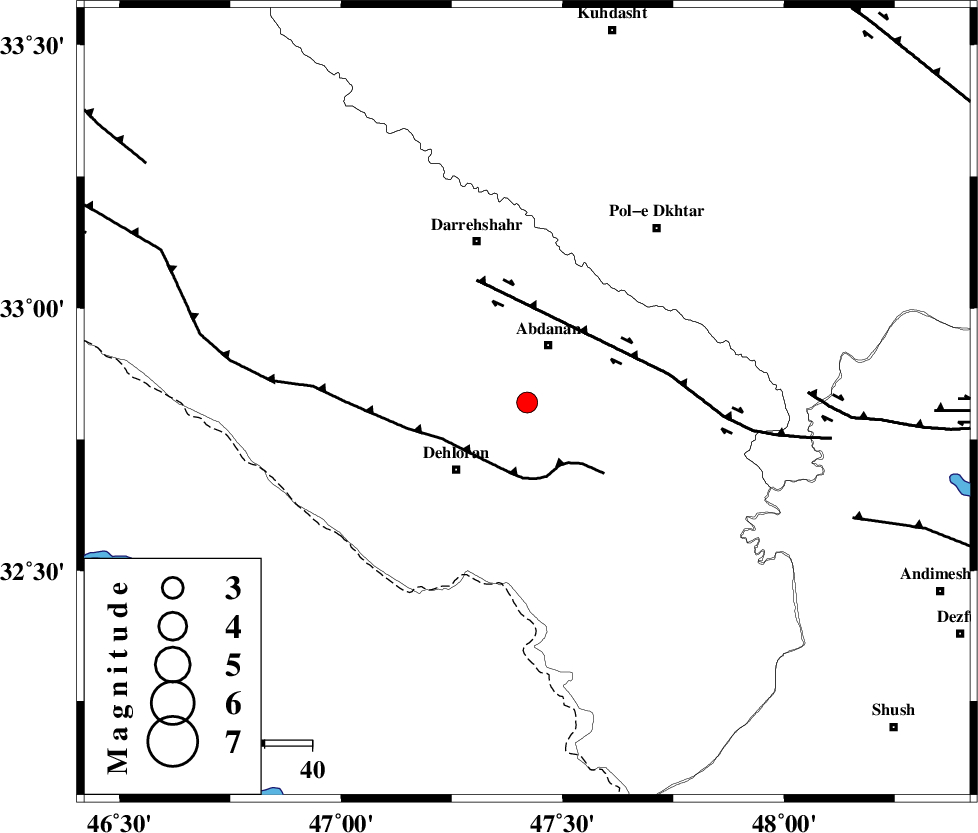

| Location | Lat:32.82 Lon: 47.42 |
| Region | Ilam Province, 13 km South of Abdanan |
Nearest Cities |
|
| 13 km South of Abdanan, Ilam Province | |
| 16 km West of Sarabbagh, Ilam Province | |
| 21 km North East of Dehloran, Ilam Province | |
| 31 km North of Musian, Ilam Province | |
| 36 km South East of Darreh Shahr, Ilam Province | |
| Depth | 18 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 15 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 28 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 59 km | |
| Number of Phases | 5 |
| RMS | 0 |
| Number of Stations | 5 |
| Error in Latitude | >20 km |
| Error in Longitude | 14.1 km |
| Error in Depth | 28.3 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93160 | IIEES | SNGE | N | 55.7 | 0.52 | 2014-08-20 04:50:44 | 2014-08-20 08:01:00 | n |
| 93161 | IIEES | AHRM | N | 13.6 | 0.48 | 2014-08-20 04:53:25 | 2014-08-20 08:01:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SNGE | Z | Pn | E | 2014-08-20 04:49:57 | 0 | y | 252 | 358 | |||
| IIEES | SNGE | N | Sg | E | 2014-08-20 04:50:29 | 0.01 | y | 252 | 358 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-20 04:49:58 | 0.06 | y | 258 | 66 | |||
| IIEES | CHTH | Z | Pn | E | 2014-08-20 04:50:26 | -0.03 | y | 483 | 44 | |||
| IIEES | DAMV | Z | Pn | E | 2014-08-20 04:50:30 | -0.08 | y | 522 | 52 | |||
