Event Specification
Magnitude |
3.5 |
| Date & Time (UTC) | 2014-08-20 19:31:13.9 |
| Date & Time (Local) | 1393/5/30 00:01:13.9 |

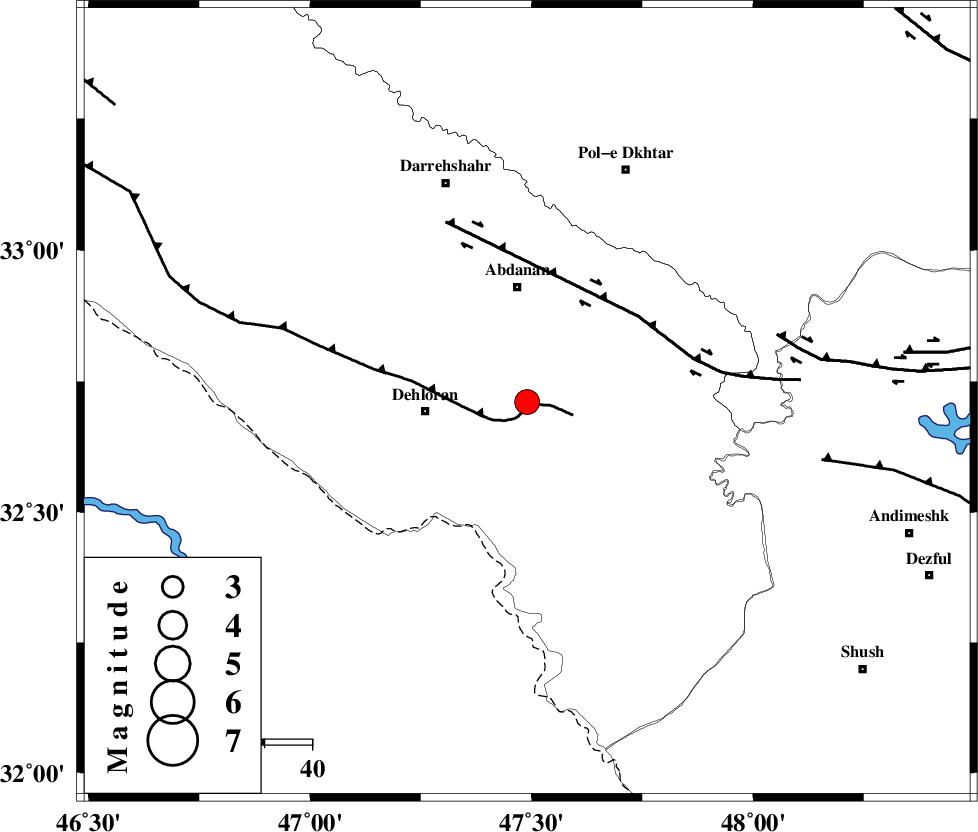

| Location | Lat:32.71 Lon: 47.49 |
| Region | Ilam Province, 24 km South of Abdanan |
Nearest Cities |
|
| 22 km North East of Dehloran, Ilam Province | |
| 22 km North East of Musian, Ilam Province | |
| 22 km South of Sarabbagh, Ilam Province | |
| 25 km South of Abdanan, Ilam Province | |
| 47 km South West of Sarab hammam, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 1 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 30 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 55 km | |
| Number of Phases | 7 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >1.6 km |
| Error in Longitude | 3.7 km |
| Error in Depth | 5.4 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93183 | IIEES | AHRM | E | 29.2 | 0.64 | 2014-08-20 19:34:12 | 2014-08-20 09:07:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2014-08-20 19:31:53 | 0.04 | y | 257 | 63 | |||
| IIEES | KHMZ | Z | Sg | E | 2014-08-20 19:32:26 | 0 | y | 257 | 63 | |||
| IIEES | SNGE | Z | Pn | E | 2014-08-20 19:31:54 | -0.05 | y | 264 | 357 | |||
| IIEES | SNGE | N | S | E | 2014-08-20 19:32:24 | 0.06 | y | 264 | 357 | |||
| IIEES | CHTH | Z | Pn | E | 2014-08-20 19:32:22 | -0.11 | y | 487 | 42 | |||
| IIEES | DAMV | Z | Pn | E | 2014-08-20 19:32:26 | -0.02 | y | 524 | 51 | |||
| IIEES | AHRM | Z | Pn | E | 2014-08-20 19:32:31 | 0.04 | y | 561 | 139 | |||
