Event Specification
Magnitude |
3.7 |
| Date & Time (UTC) | 2014-08-21 00:25:35.1 |
| Date & Time (Local) | 1393/5/30 04:55:35.1 |

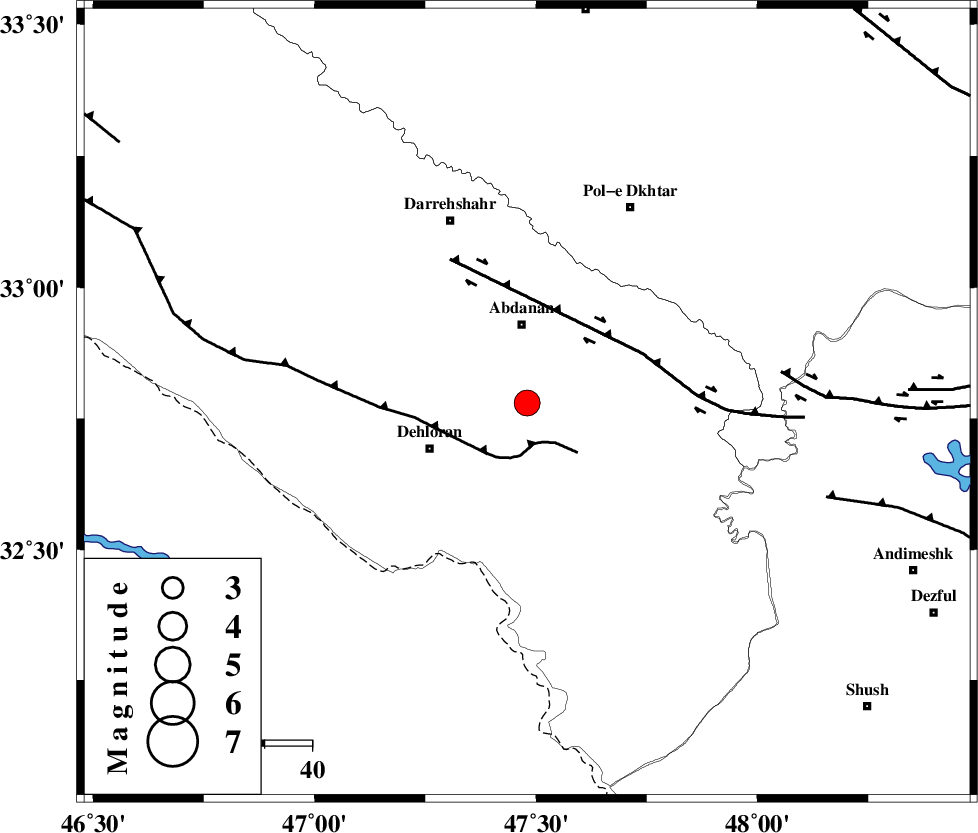

| Location | Lat:32.78 Lon: 47.48 |
| Region | Ilam Province, 16 km South of Abdanan |
Nearest Cities |
|
| 15 km South of Sarabbagh, Ilam Province | |
| 17 km South of Abdanan, Ilam Province | |
| 23 km North East of Dehloran, Ilam Province | |
| 28 km North East of Musian, Ilam Province | |
| 40 km South West of Sarab hammam, Lorestan Province | |
| Depth | 14 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 9 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 27 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 54 km | |
| Number of Phases | 6 |
| RMS | 0.1 |
| Number of Stations | 4 |
| Error in Latitude | >1.7 km |
| Error in Longitude | 4 km |
| Error in Depth | 5.8 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93187 | IIEES | AHRM | N | 43.4 | 0.64 | 2014-08-21 00:28:36 | 2014-08-21 02:43:00 | n |
| 93188 | IIEES | AHRM | E | 39.1 | 0.52 | 2014-08-21 00:28:38 | 2014-08-21 02:43:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | KHMZ | Z | Pn | E | 2014-08-21 00:26:14 | 0.08 | y | 255 | 65 | |||
| IIEES | KHMZ | Z | Sg | E | 2014-08-21 00:26:47 | -0.04 | y | 255 | 65 | |||
| IIEES | SNGE | Z | Pn | E | 2014-08-21 00:26:14 | -0.07 | y | 256 | 357 | |||
| IIEES | SNGE | N | S | E | 2014-08-21 00:26:43 | 0.02 | y | 256 | 357 | |||
| IIEES | CHTH | Z | Pn | E | 2014-08-21 00:26:42 | 0.04 | y | 483 | 43 | |||
| IIEES | AHRM | Z | Pn | E | 2014-08-21 00:26:53 | -0.04 | y | 568 | 139 | |||
