Event Specification
Magnitude |
2.6 |
| Date & Time (UTC) | 2014-08-22 09:00:48.1 |
| Date & Time (Local) | 1393/5/31 13:30:48.1 |

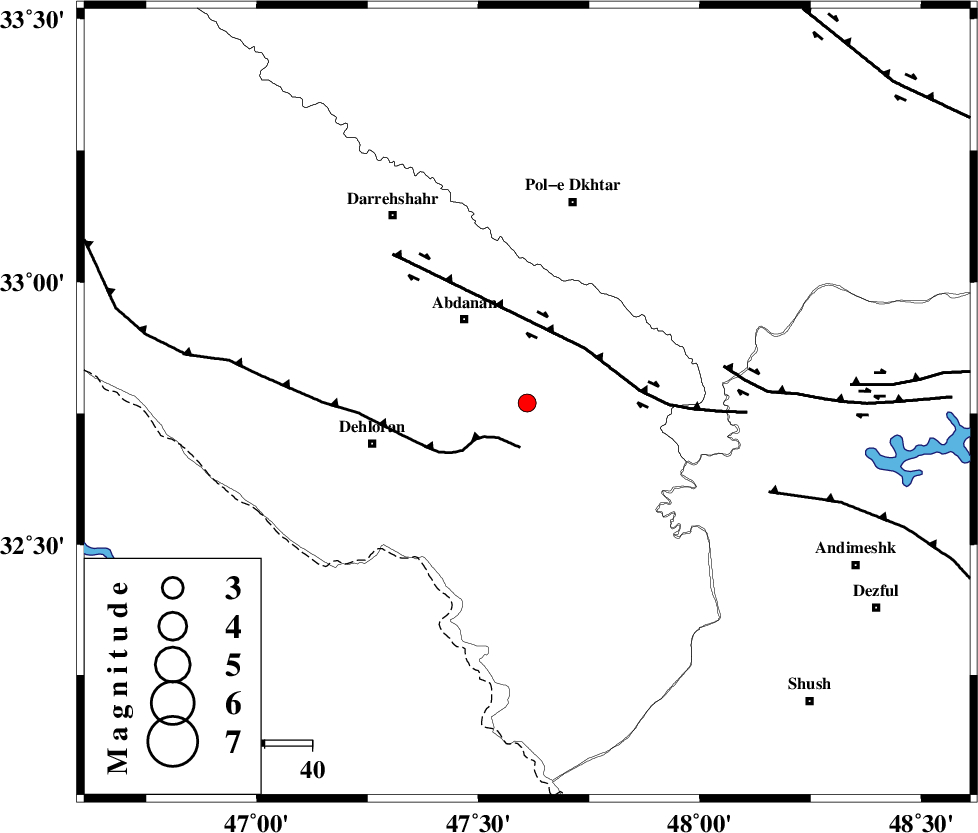

| Location | Lat:32.77 Lon: 47.61 |
| Region | Ilam Province, 22 km South-East of Abdanan |
Nearest Cities |
|
| 15 km South of Sarabbagh, Ilam Province | |
| 22 km South East of Abdanan, Ilam Province | |
| 34 km North East of Dehloran, Ilam Province | |
| 34 km North East of Musian, Ilam Province | |
| 37 km South of Sarab hammam, Lorestan Province | |
| Depth | 46 km |
| Agency | |
Faults within 150 km: |
|
| MFF6 (Length: 144 km) , Distance to epicenter: 10 km | |
| BALARUD_F_Z1 (Length: 87 km) , Distance to epicenter: 17 km | |
| BALARUD_F_Z3 (Length: 53 km) , Distance to epicenter: 42 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 3 |
| Error in Latitude | >3.2 km |
| Error in Longitude | 6.2 km |
| Error in Depth | 2.5 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93207 | IIEES | SHGR | N | 100.6 | 0.42 | 2014-08-22 09:01:38 | 2014-08-22 11:06:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | SHGR | Z | Pg | E | 2014-08-22 09:01:10 | -0.04 | y | 134 | 123 | |||
| IIEES | SHGR | E | Sg | E | 2014-08-22 09:01:27 | 0.11 | y | 134 | 123 | |||
| IIEES | KHMZ | Z | Pn | E | 2014-08-22 09:01:22 | -0.14 | y | 245 | 63 | |||
| IIEES | SNGE | Z | Pn | E | 2014-08-22 09:01:24 | 0.01 | y | 259 | 355 | |||
| IIEES | SNGE | N | Sg | E | 2014-08-22 09:02:00 | 0.07 | y | 259 | 355 | |||
