Event Specification
Magnitude |
3.1 |
| Date & Time (UTC) | 2014-08-22 11:52:12.9 |
| Date & Time (Local) | 1393/5/31 16:22:12.9 |

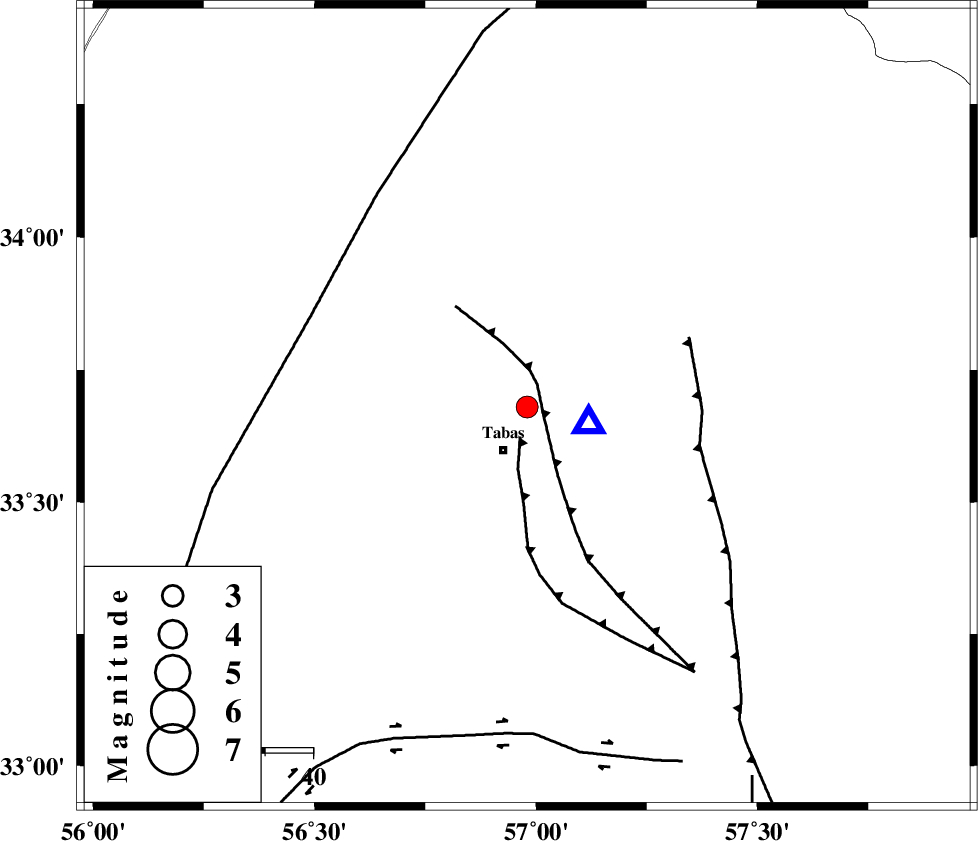

| Location | Lat:33.68 Lon: 56.98 |
| Region | Yazd Province, 10 km Tabas |
Nearest Cities |
|
| 10 km North of Tabas, Yazd Province | |
| 15 km North of Oshtoqran, Yazd Province | |
| 18 km East of Jokhvah, Yazd Province | |
| 26 km North of Kerit, Yazd Province | |
| 30 km South West of Reqqeh, Khorasan(center) Province | |
| Depth | 11 km |
| Agency | |
Faults within 150 km: |
|
| TABAS_F1 (Length: 91 km) , Distance to epicenter: 4 km | |
| TABAS_F2 (Length: 67 km) , Distance to epicenter: 6 km | |
| ESFARDIAR_F (Length: 94 km) , Distance to epicenter: 37 km | |
| Number of Phases | 5 |
| RMS | 0.1 |
| Number of Stations | 5 |
| Error in Latitude | >4.9 km |
| Error in Longitude | 2.8 km |
| Error in Depth | 2.1 km |
Download waveform in seisan format
to download seisan software Click here
to access information about IIEES stations Click here
Amplitude | ||||||||
| UID | Agency | Station | Component | Amplitude | Period | Arrival Time | Proccessing Time | Signal Clip |
| 93210 | IIEES | YZKH | E | 118.4 | 0.68 | 2014-08-22 11:53:34 | 2014-08-22 01:12:00 | n |
| 93211 | IIEES | YZKH | N | 90.3 | 0.48 | 2014-08-22 11:53:37 | 2014-08-22 01:12:00 | n |
Phase | ||||||||||||
| Agency | Station | Component | Phase Type | Phase Quality | First Motion | Observed Arrival Time | Time Residual | Loc. Flag | Input Weight | Distance | Azimuth | |
| IIEES | TABS | Z | Pg | E | 2014-08-22 11:52:16 | 0 | y | 13.6 | 105 | |||
| IIEES | YZKH | Z | Pn | E | 2014-08-22 11:52:54 | -0.04 | y | 265 | 238 | |||
| IIEES | BSRN | Z | Pn | E | 2014-08-22 11:52:55 | -0.12 | y | 277 | 133 | |||
| IIEES | SHRT | Z | Pn | E | 2014-08-22 11:52:59 | 0.06 | y | 307 | 90 | |||
| IIEES | KRBR | Z | Pn | E | 2014-08-22 11:53:12 | 0.13 | y | 411 | 183 | |||
